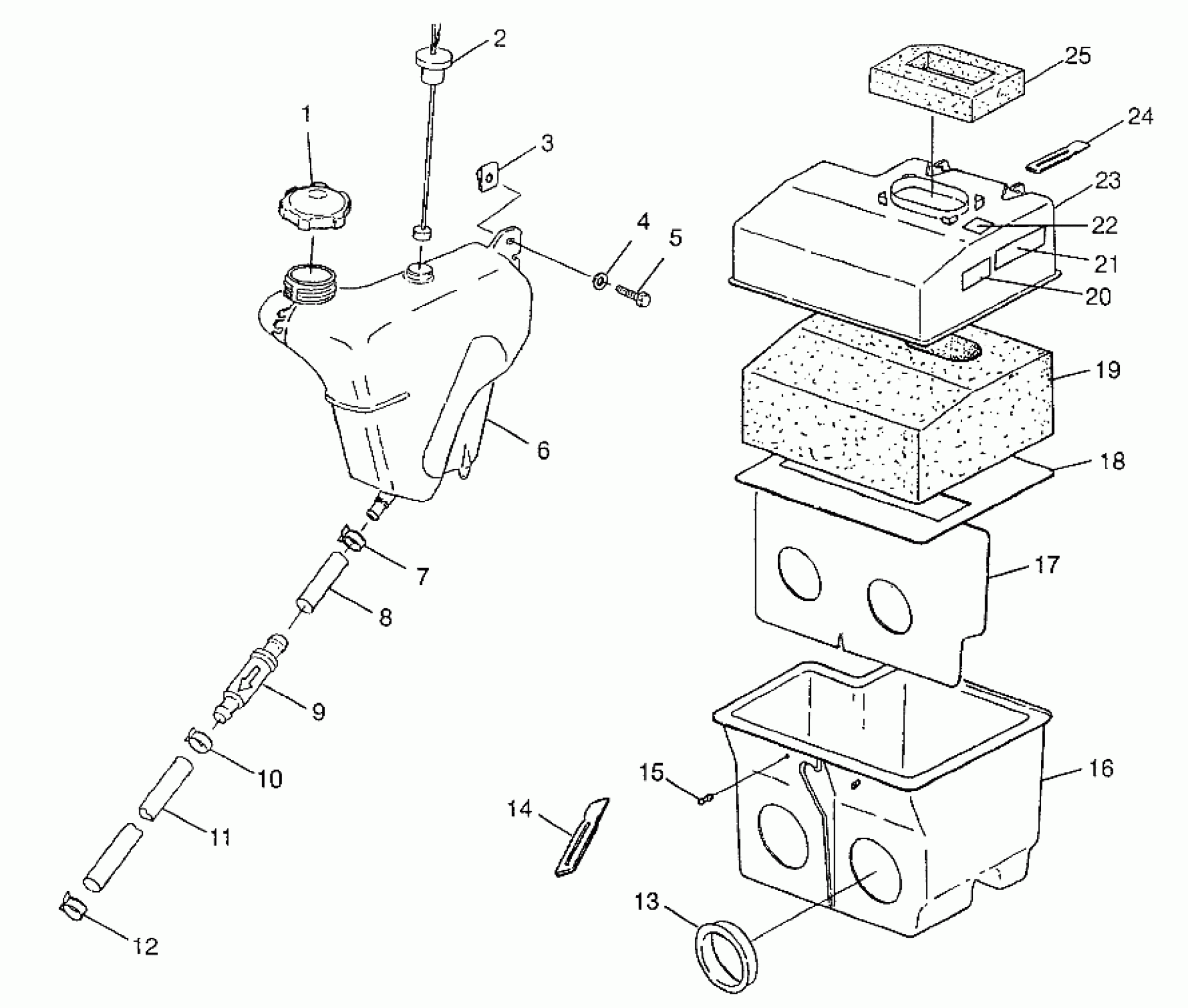

Polaris 700 RMK - 0970966 OIL TANK/AIR BOX 700 RMK 0970966, 700 SKS 0970566 and EUROPEAN 700 SKS E970 (4938573857C005) Diagram

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

SENSOR,OIL LEVEL

4110134

$72.84

Nut

7670096

$1.59

WASHER,WROUGHT(10)

7558302

$1.59

BOLT(10)

7512276

$4.79

TANK, OIL

5432370

Unavailable

CLAMP,HOSE,(10)

7080650

$3.99

FUEL LINE-.625 OD X .500 ID

8450059

Unavailable

FILTER,OIL

2530015

Unavailable

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

BOOT,CARB

5411109

Unavailable

STRAP,TIE-DOWN

5411129

$8.89

FITTING,HOSE(10)

7052127

$3.19

SILENCER,INTAKE,DRILLED

5432368

Unavailable

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

PLATE,SILENCER INTAKE

5850134

Unavailable

FOAM,AIRBOX,TOP INT. Substituted by 5811564

5811484

Unavailable

DECAL, GREASING [No Longer Available]

7073426

$7.27

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

DECAL,CAUTION,AIRBOX

7075351

Unavailable

TOP,SIL.INTAKE,W/1.5 HOLE

5432586

Unavailable

RETAINER-TAB,(10)

5411075

Unavailable

FOAM,AIRBOX,CHIMNEY

5811328

Unavailable
