FRONT TORQUE ARM (SKS) 700 SKS 0970566 and EUROPEAN 700 SKS E970566 (4938573857B013)

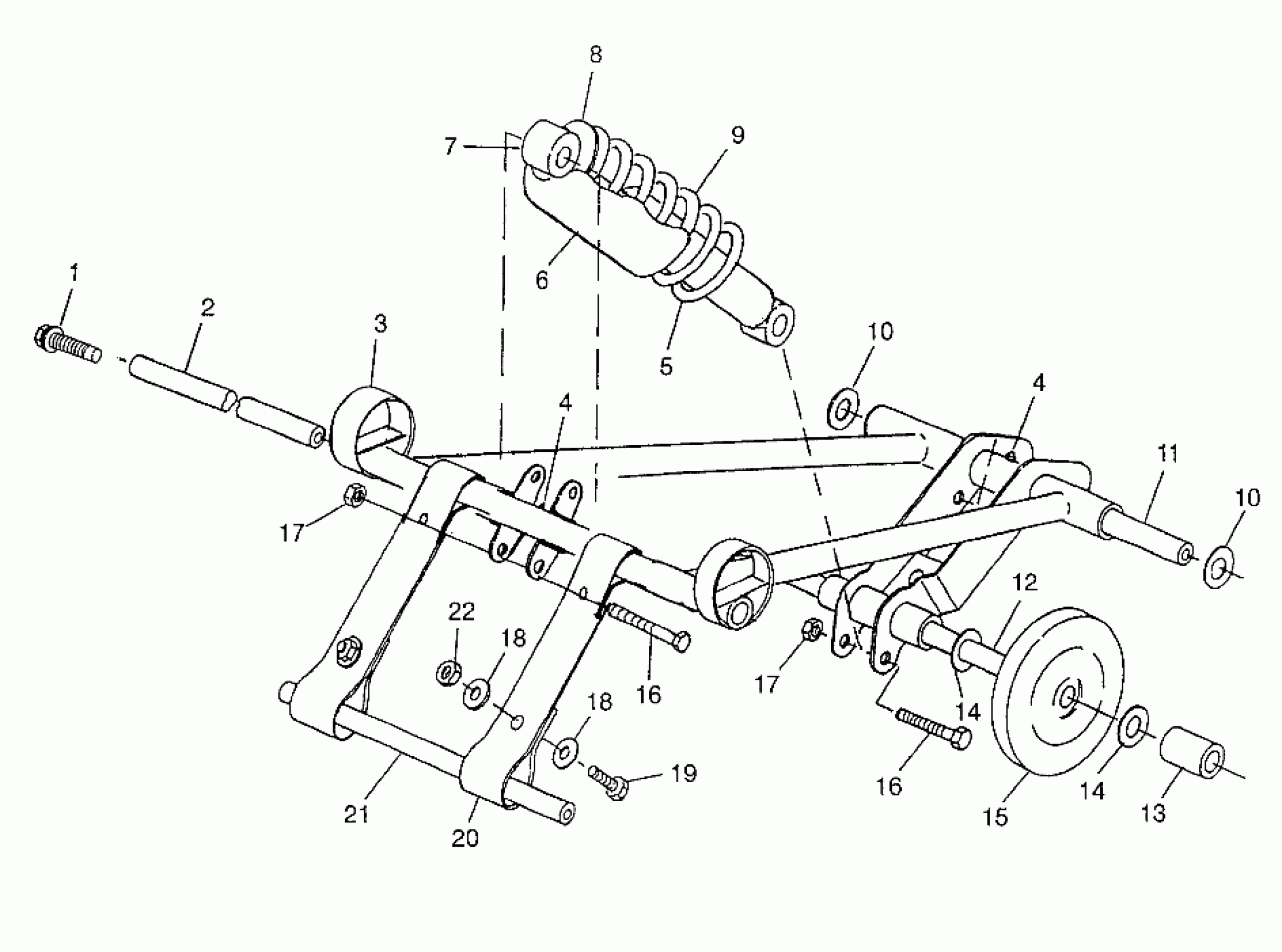

Polaris 700 RMK - 0970966 FRONT TORQUE ARM (SKS) 700 SKS 0970566 and EUROPEAN 700 SKS E970566 (4938573857B013) Diagram
#
Description
Price
1
SCREW,SEMS Substituted by 7517247
7517236
$3.17
2
Shaft
5131450
Unavailable
3
ARM,F.TORQUE,X-10 Substituted by 1541203-067
1541140-067
Unavailable
4
ZERK,FITTING,THREADED(10)
7080433
$1.49
4
ZERK,FITTING,THREADED(10)
7080433
$1.49
5
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
6
SHIELD-SPRING
5430671
$24.27
7
SHOCK,F.TRK,X10,136 Substituted by 7041745
7041606
Unavailable
8
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
9
SPRING,BLACK,COMP.
7041253-067
$95.22
10
WASHER(10)
7555893
$1.49
10
WASHER(10)
7555893
$1.49
11
Shaft (See Pg. A24, Ref. 21)
-------
Unavailable
12
Shaft (See Pg. A24, Ref. 20)
-------
Unavailable
13
SPACER, OUTER
5332784
Unavailable
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
Asm., Bogie Wheel (See Pg. A25, Ref.9)
-------
Unavailable
16
BOLT(10)
7515415
$1.49
16
BOLT(10)
7515415
$1.49
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
WASHER(10)
7555716
$1.59
18
WASHER(10)
7555716
$1.59
19
SCREW ,(10)
7517313
$4.79
20
STRAP,LIMITER,TRACK
5410992
Unavailable
21
Shaft (See Pg. A24, Ref.19)
-------
Unavailable
22
NUT,NYLOC,(10)
7542344
$3.99
