FRONT TORQUE ARM (RMK) 700 RMK 0970966 (4938573857B012)

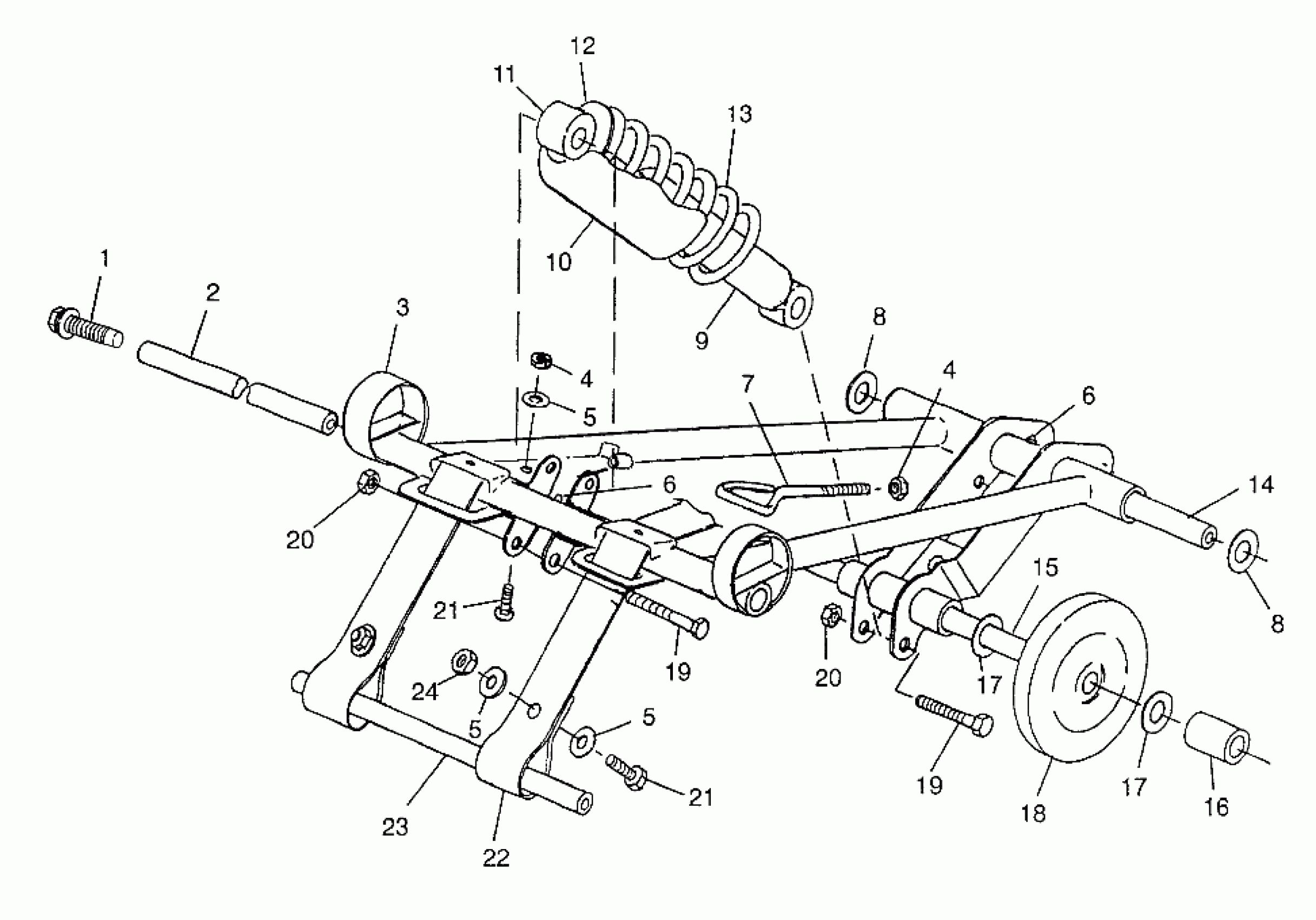

Polaris 700 RMK - 0970966 FRONT TORQUE ARM (RMK) 700 RMK 0970966 (4938573857B012) Diagram
#
Description
Price
1
SCREW,SEMS Substituted by 7517247
7517236
$3.17
2
Shaft
5020908
$69.99
3
Desc not available [No Longer Available]
1541158-067
Unavailable
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
WASHER(10)
7555716
$1.59
5
WASHER(10)
7555716
$1.59
5
WASHER(10)
7555716
$1.59
6
ZERK,FITTING,THREADED(10)
7080433
$1.49
6
ZERK,FITTING,THREADED(10)
7080433
$1.49
7
BOLT,EYE
7010050
Unavailable
8
WASHER(10)
7555893
$1.49
8
WASHER(10)
7555893
$1.49
9
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
10
SHIELD-SPRING
5430671
$24.27
11
SHOCK,F.TRK,X10,136 Substituted by 7041745
7041606
Unavailable
12
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
13
SPRING,BLACK,COMP.
7041253-067
$95.22
14
Shaft (See Pg. A24, Ref. 21)
-------
Unavailable
15
Shaft (See Pg. A24, Ref. 20)
-------
Unavailable
16
SPACER, OUTER
5332784
Unavailable
17
MACHINERY BUSHING(10)
7556301
$3.19
17
MACHINERY BUSHING(10)
7556301
$3.19
18
Asm., Bogie Wheel (See Pg. A25, Ref.9)
-------
Unavailable
19
BOLT(10)
7515415
$1.49
19
BOLT(10)
7515415
$1.49
20
NUT LOCK(10)
7542403
$3.99
20
NUT LOCK(10)
7542403
$3.99
21
BOLT(10)
7512377
$4.79
21
BOLT(10)
7512377
$4.79
22
STRAP,LIMITER,FRONT
5411045
Unavailable
23
Shaft (See Pg. A24, Ref.19)
-------
Unavailable
24
NUT,NYLOC,(10)
7542344
$3.99
