FRONT SUSPENSION and SKI 700 RMK 0970966, 700 SKS 0970566, and EUROPEAN 700 (4938573857B001)

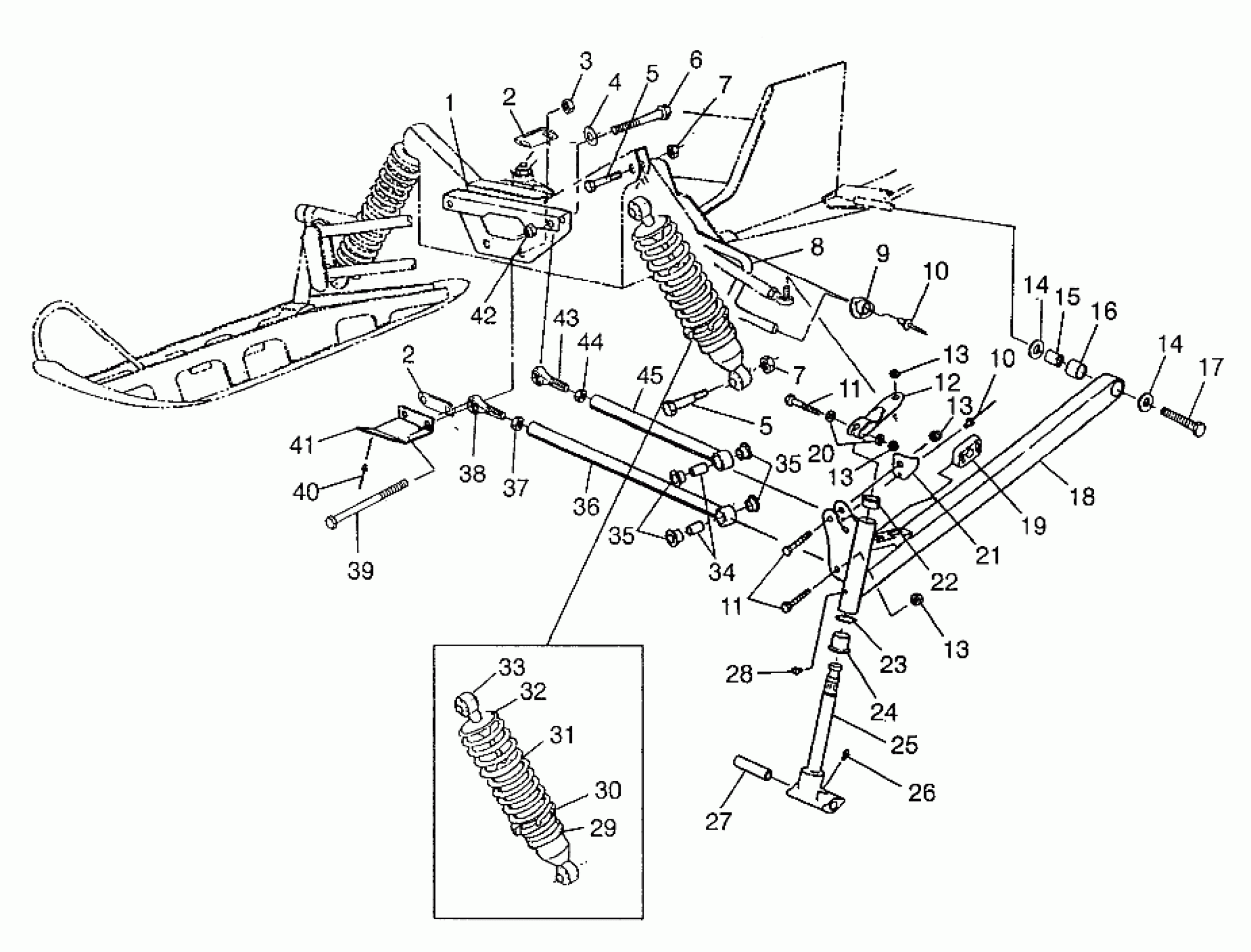

Polaris 700 RMK - 0970966 FRONT SUSPENSION and SKI 700 RMK 0970966, 700 SKS 0970566, and EUROPEAN 700 (4938573857B001) Diagram
#
1
BRACE,FR.BULKH.,BLK Substituted by 5242112-067
5241641-067
Unavailable
2
STRAP,SPACER BOTTOM
5211345
$12.99
2
STRAP,SPACER BOTTOM
5211345
$12.99
3
NUT FLEX,(10)
7542703
Unavailable
4
WASHER THRUST(10)
7558702
$1.59
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
BOLT(10)
7512551
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BAR,SWAY,BLK, (SKS)
5224742-067
Unavailable
8
BAR,SWAY (RMK)
5224757-067
Unavailable
9
BUSHING,SWAY BAR (SKS)
5432038
$19.99
9
BUSHING,SWAY BAR (RMK)
5432412
$15.99
10
RIVET(50) Substituted by 7661130
7661643
Unavailable
10
RIVET(50) Substituted by 7661130
7661643
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
ARM,LH,STRG,BLK.
5241660-067
Unavailable
12
ARM,RH,STRG,BLK.
5241661-067
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE, BUSHING
5010310
$9.70
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH (Incl. 15, 16)
1822449
Unavailable
18
ARM,TRLG,RH (Incl. 15, 16)
1822450
Unavailable
19
SLIDE,SWAYBAR,5/8 (SKS)
5432331
$28.32
19
SLIDE,SWAYBAR,9/16 (RMK)
5432332
$32.37
20
WASHER(10) Substituted by 7555832
7555851
Unavailable
21
STOP,LH,STRG,BLK
5241777-067
$15.08
21
STOP,RH,STRG,BLK.
5241778-067
$18.23
22
BUSHING-FLANGE
3573909
$2.39
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
26
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
27
BUSHING,PIVOT,(10)
5010158
$19.99
28
ZERK,FITTING,THREADED(10)
7080433
$1.49
29
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
30
RING,SPRING PRELOAD ADJ.
5431734
$52.60
31
SPRING,COMPRESSION
7041551-067
$74.99
32
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
33
SHOCK,GAS,IFS (SKS)
7041538
Unavailable
33
SHOCK,GAS,IFS (RMK)
7041543
$179.99
34
BUSHING-RADIUS ROD,(10)
5010127
$7.99
35
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
35
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
36
ROD,RAD,LOWER,BLK (RMK)
1822444-067
$60.70
36
ROD,RAD,LOWER,BLK (SKS)
1822377-067
Unavailable
37
NUT-JAM(10)
7542711
$2.39
38
ROD END,RH Substituted by 7061011 (RMK)
7060156
Unavailable
38
ROD END,1/2 LINED Substituted by 7061071 (SKS)
7061011
$48.56
39
BOLT(10)
7512678
$19.99
40
RIVET(50)
7621452
$1.49
41
BRACE, PAN
5223997-067
Unavailable
42
NUT, LOCK,(10)
7542503
$10.39
43
ROD END, RH Substituted by 7061010 (RMK)
7060155
Unavailable
43
ROD,END,7/16 LINED Substituted by 7061049 (SKS)
7061010
Unavailable
44
NUT JAM(10)
7542520
$2.39
45
ROD,RAD,UPPER,BLK (SKS)
1822375-067
Unavailable
45
ROD,RAD,UPPER,BLK (RMK)
1822446-067
Unavailable
