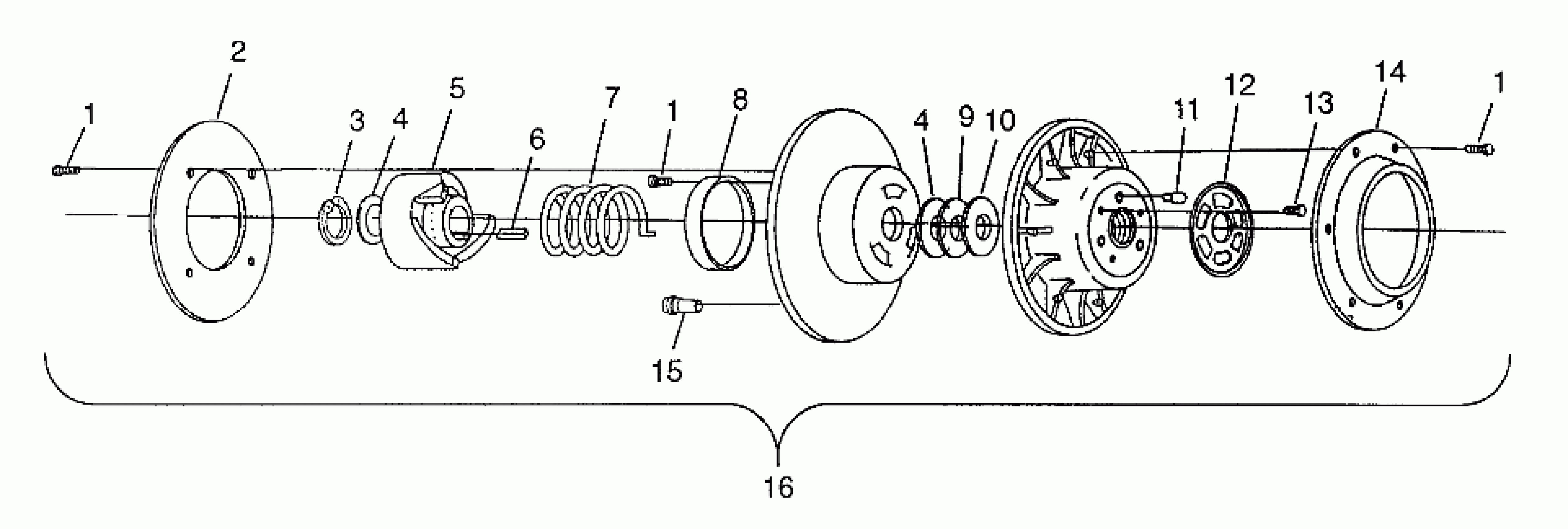

Polaris 700 RMK - 0970966 DRIVEN CLUTCH 700 RMK 0970966, 700 SKS 0970566, and EUROPEAN 700 SKS E97056 (4938573857C002) Diagram

#

Description
Price

1

SCREW(10) (SKS)

7512048

Unavailable

1

SCREW(10) (SKS)

7512048

Unavailable

1

SCREW(10) (SKS)

7512048

Unavailable

2

PLATE (SKS)

5210749

$30.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10) (.03)

7556804

$1.49

4

WASHER(10) (.03)

7556804

$1.49

5

RAMP,STAT,36DEG,MOD. (SKS)

5130717

$199.99

5

RAMP,DRIVEN,R11,MACH (RMK)

5131297

Unavailable

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,CLUTCH,SVR. (Red)

7041499

$56.65

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER(10) (.02)

7555898

Unavailable

10

WASHER,DRIVE CLUTCH(10)

7555865

$6.39

11

PIN, CLUTCH

5020653

$34.99

12

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

13

SCREW(10)

7515133

$3.99

14

CAP DRIVEN (SKS)

5230101

Unavailable

15

BUTTON-RAMP,(10)

5430466

$6.46

16

CLUTCH,DRIVEN,36 D,MOD Substituted by 1321947 (36 (Incl. 1-14) (SKS)

1322178

Unavailable

16

CLUTCH,DRIVEN,R11 W/O CVR. (R-11) (Incl. 1-13) (RMK)

1322179

Unavailable
