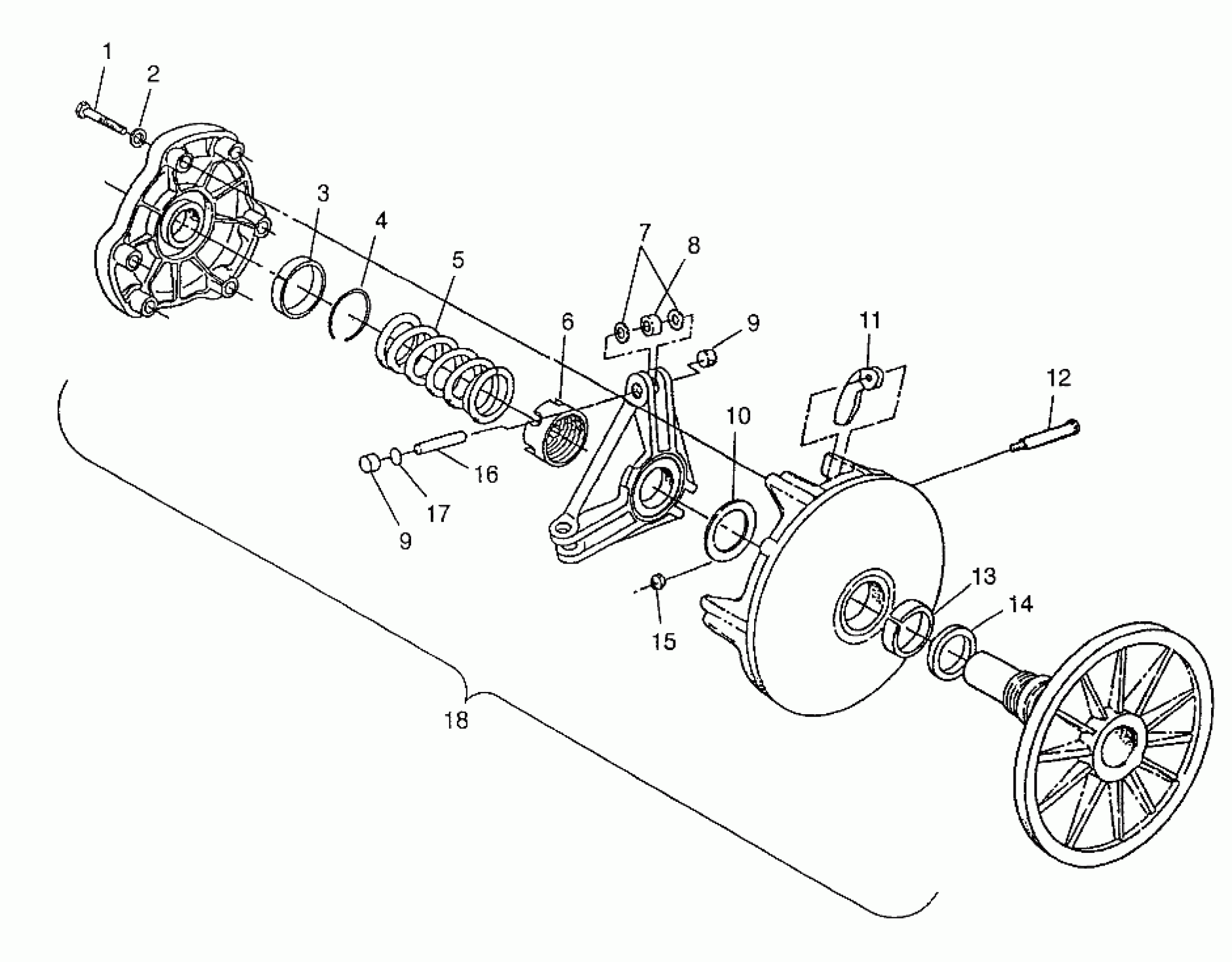

Polaris 700 RMK - 0970966 DRIVE CLUTCH 700 RMK 0970966, 700 SKS 0970566 and EUROPEAN 700 SKS E970566 (4938573857C001) Diagram

BOLT,(10)

7512265

$3.99

LOCK WASHER(10)

7552801

$1.59

COVER,BEARING,GARMAX (Garmax)

3576516

$28.32

RING-RETAINING,COVER

7710417

$1.49

SPRING,(DK.BLU) Substituted by 7041781 (Dark Blue)

7041526

$56.65

NUT-JAM

5020425

$23.99

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING (SKS)

1321457

$40.46

ASM-ROLLER AND BUSHING (RMK)

1321622

$32.37

BUTTON, GUIDE,(10)

5430445

$6.39

BUTTON, GUIDE,(10)

5430445

$6.39

SPACER(10) (.050mm)

5210754

Unavailable

SPACER(10) (.020mm)

5210752

Unavailable

SPACER(10) (.032mm)

5210753

Unavailable

WT/BUSH.ASM,10-58(3) (10-58) (RMK)

1321588

$40.46

Weight/Bushing (10-60) (10-60) (SKS)

1321587

$40.46

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

SLEEVE, BEARING

3576502

$23.99

INSERT-MOVEABLE

5010188

$7.99

NUT FLEX LOC(10)

7541906

$3.19

PIN-ROLLER

5020422

$2.39

Kit - Shim, Drive Clutch

2200387

$24.27

CLUTCH,BASIC#67(DRIVE) Substituted by 2201887 (Less 5, 11) (SKS)

1321694

Unavailable

CLUTCH,BASIC#73(DRIVE) Substituted by 2201886 (Less 5, 11) (RMK)

1321713

Unavailable
