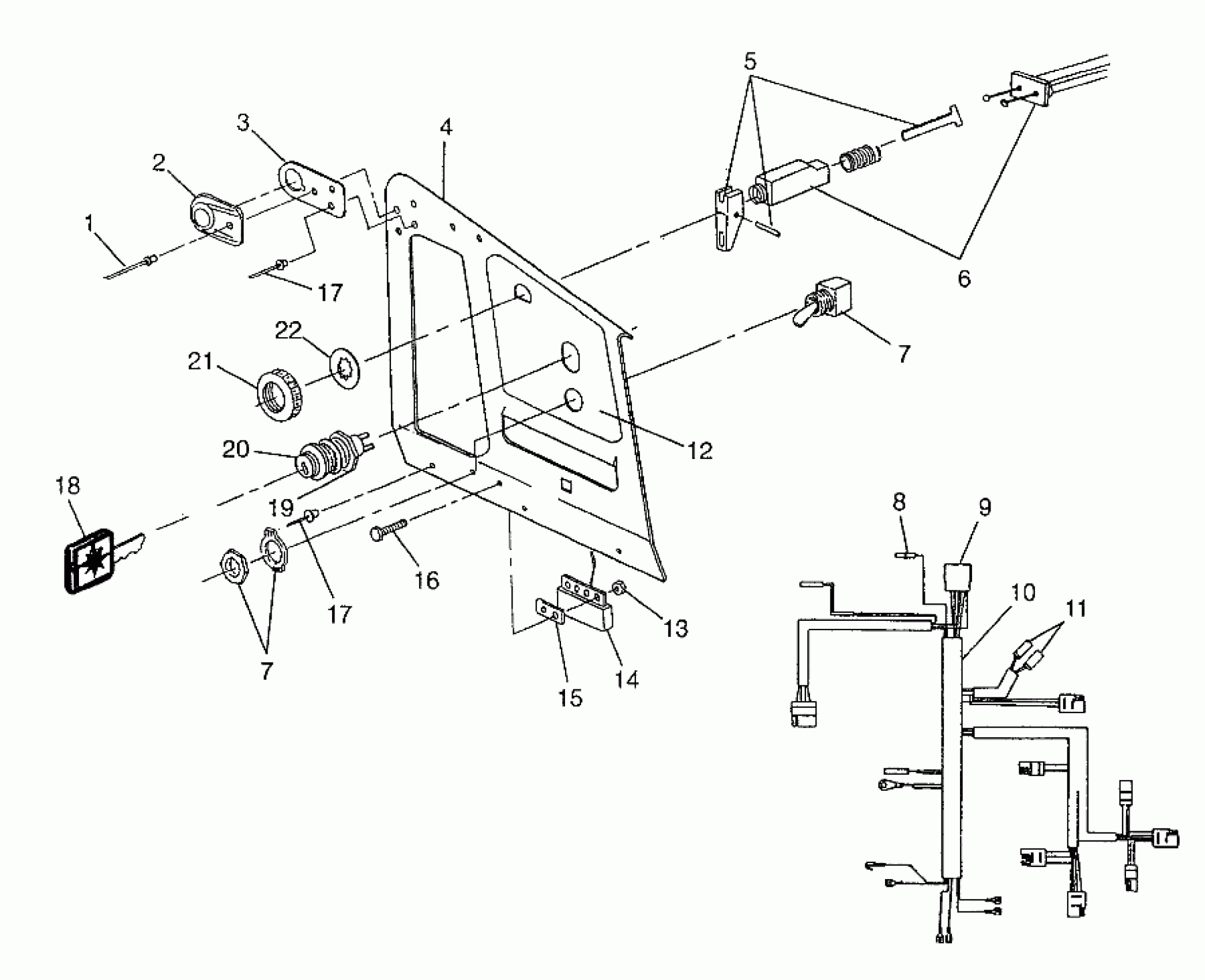

Polaris 700 RMK - 0970966 CONSOLE - 0970966 (4938573857a013) Diagram
#
Description
Price
1
RIVET,(50)
7621477
$1.19
2
GUIDE, RECOIL
5431385
$10.51
3
BRKT,ROPE GUIDE,BLK.
5222682-067
Unavailable
4
CONSOLE
5222756-067
Unavailable
5
KIT-CHOKE CONTROL
2200188
$24.27
6
CABLE,CHOKE
7080636
Unavailable
7
SW,HEATER,HI-LOW
4110077
Unavailable
7
SW,HEATER,HI-LOW
4110077
Unavailable
8
HOUSING
4020133
Unavailable
9
Housing w/Receptacle
4020057
$3.51
10
HARNESS,MAIN WIRE (RMK, SKS)
2460579
Unavailable
10
HARNESS,MAIN WIRE(EURO) (Euro)
2460580
$95.24
11
Housing
4020153
$1.49
12
DECAL, CONSOLE [No Longer Available]
7073075
Unavailable
13
NUT(10)
7541925
$1.49
14
REGULATOR,(14.3VAC),LR-7
4060123
Unavailable
15
SPACER,REGULATOR
5211573
Unavailable
16
BOLT(10)
7512031
$2.23
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
18
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid
5410611
Unavailable
19
NUT, IGN.SWITCH(10)
7543101
Unavailable
20
KIT,IGN. SWITCH (Incl. 18)
2200357
Unavailable
21
Nut
7080229
$19.99
22
WASHER-LOCK(10)
7571610
$3.99
