CHAINCASE 700 RMK 0970966, 700 SKS 0970566, and EUROPEAN 700 SKS E970566 (4938573857B008)

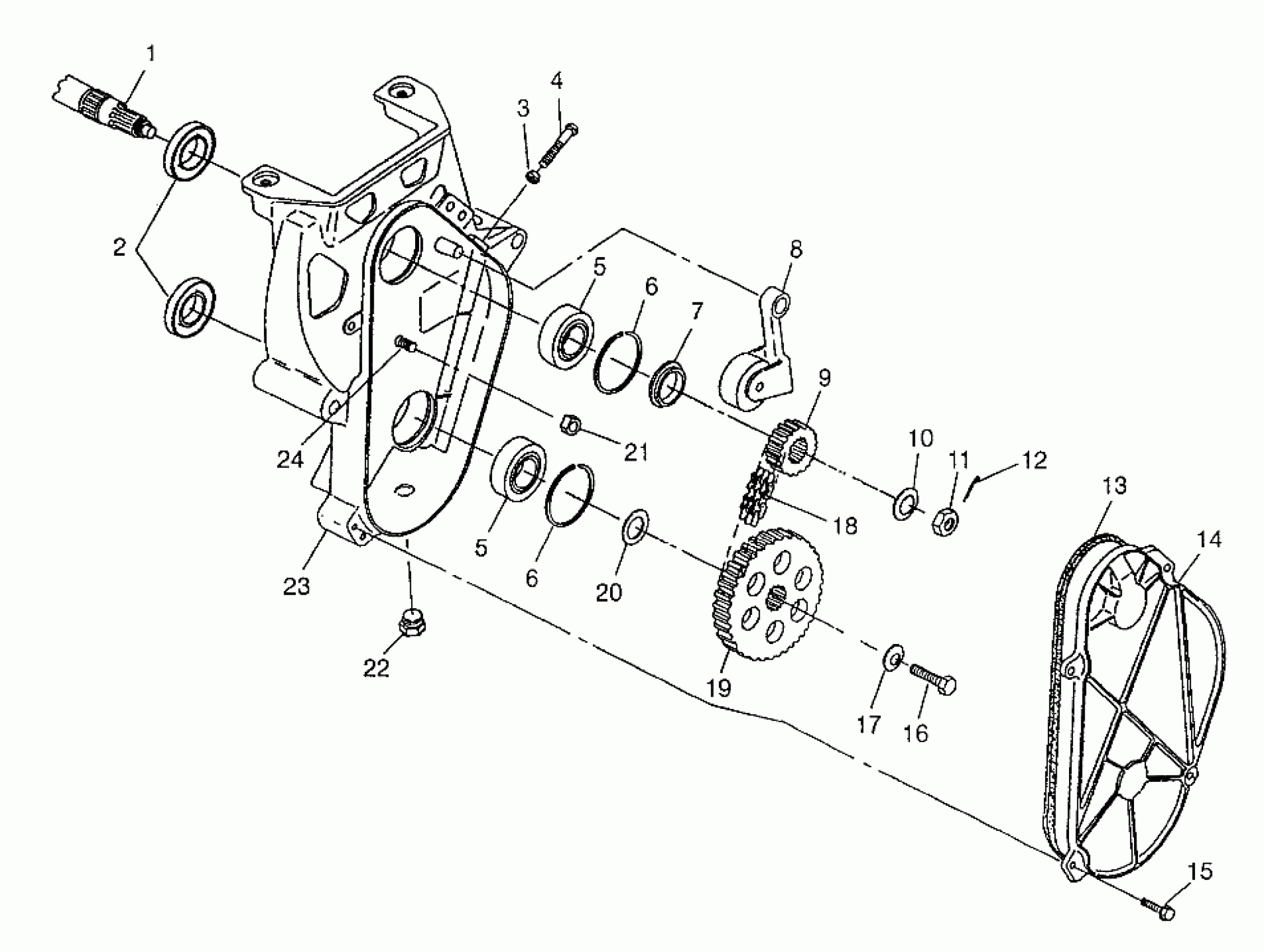

Polaris 700 RMK - 0970966 CHAINCASE 700 RMK 0970966, 700 SKS 0970566, and EUROPEAN 700 SKS E970566 (4938573857B008) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. A23, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
NUT(10)
7542404
$1.59
4
SCREW(10)
7515511
$3.99
5
BEARING
3514308
Unavailable
5
BEARING
3514308
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER,SPROCKET
5010359
Unavailable
8
PIN,CHAIN TIGHTENER
7662210
Unavailable
8
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
8
BEARING
3553002
$11.99
8
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
8
WHEEL,C/C IDLER
5630123
Unavailable
8
WASHER THRUST(10)
7558702
$1.59
9
SPKT,20T,(13W),15T SPLINE (13W)
3221061
Unavailable
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT
7542811
Unavailable
12
COTTER PIN(10)
7661401
$1.49
13
GASKET,CHAINCASE,LONG
5411207
$20.22
14
COVER,CHAINCASE
5630691
$115.99
15
SCREW(10)
7512242
$2.39
16
SCREW(10)
7515350
$3.97
17
WASHER(10)
7571618
$6.39
18
CHAIN,66P,(13W),SILENT (13W) HD (SKS)
3224051
Unavailable
18
CHAIN,SILENT,68P,13W (13W) HD (RMK)
3224061
Unavailable
19
SPROCKET,35T,(13W) (13W) (SKS)
3222053
Unavailable
19
SPKT,39T,13W,RIBBED (13W) (RMK)
3222064
$34.92
20
BUSHING(10)
7555864
$2.39
21
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
22
PLUG(10)
7052115
$5.65
23
CHAINCASE,VENTED
5131455
Unavailable
24
BOLT(10)
7515477
$34.99
