Description

Price

11012

CAP

11012-3725

Unavailable

39156

PAD,HANDLE POLE

39156-3714

Unavailable

39156A

PAD,HULL DECK,LH

39156-3717

Unavailable

39156B

PAD,HULL DECK,RH

39156-3718

Unavailable

39156C

PAD,METER

39156-3719

Unavailable

39156D

PAD,ENGINE HOOD,LH

39156-3728

Unavailable

39156E

PAD,ENGINE HOOD,RH

39156-3729

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

92009

SCREW,TAPPING,5X20

92009-3716

$3.65

92009A

SCREW

92009-3728

$1.46

92009B

SCREW,5X12

92009-3740

$4.18

92009C

SCREW,TAPPING

92011-561

Unavailable

92022

WASHER,6MM

92022-3747

$1.84

92066

PLUG

92066-3716

$4.92

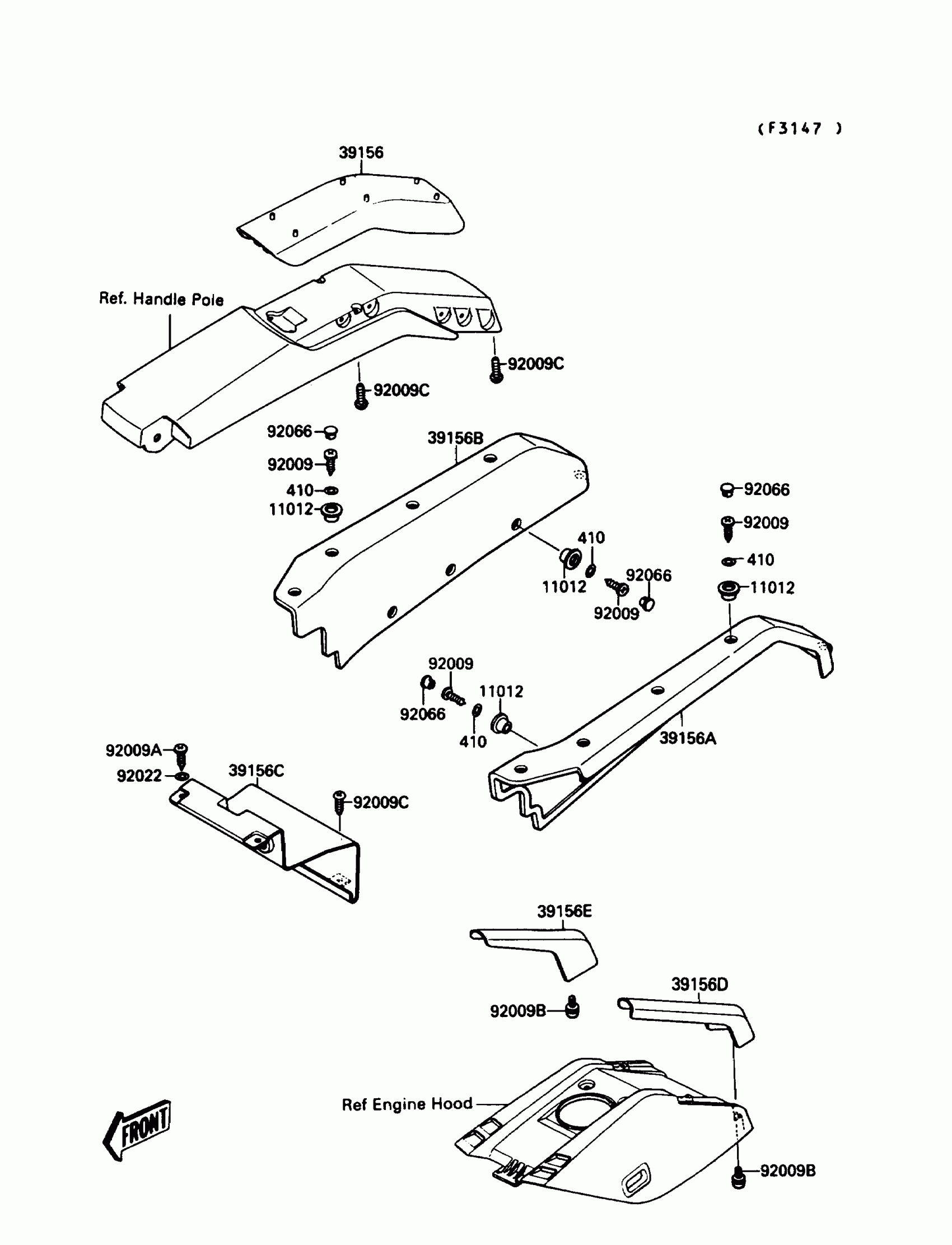

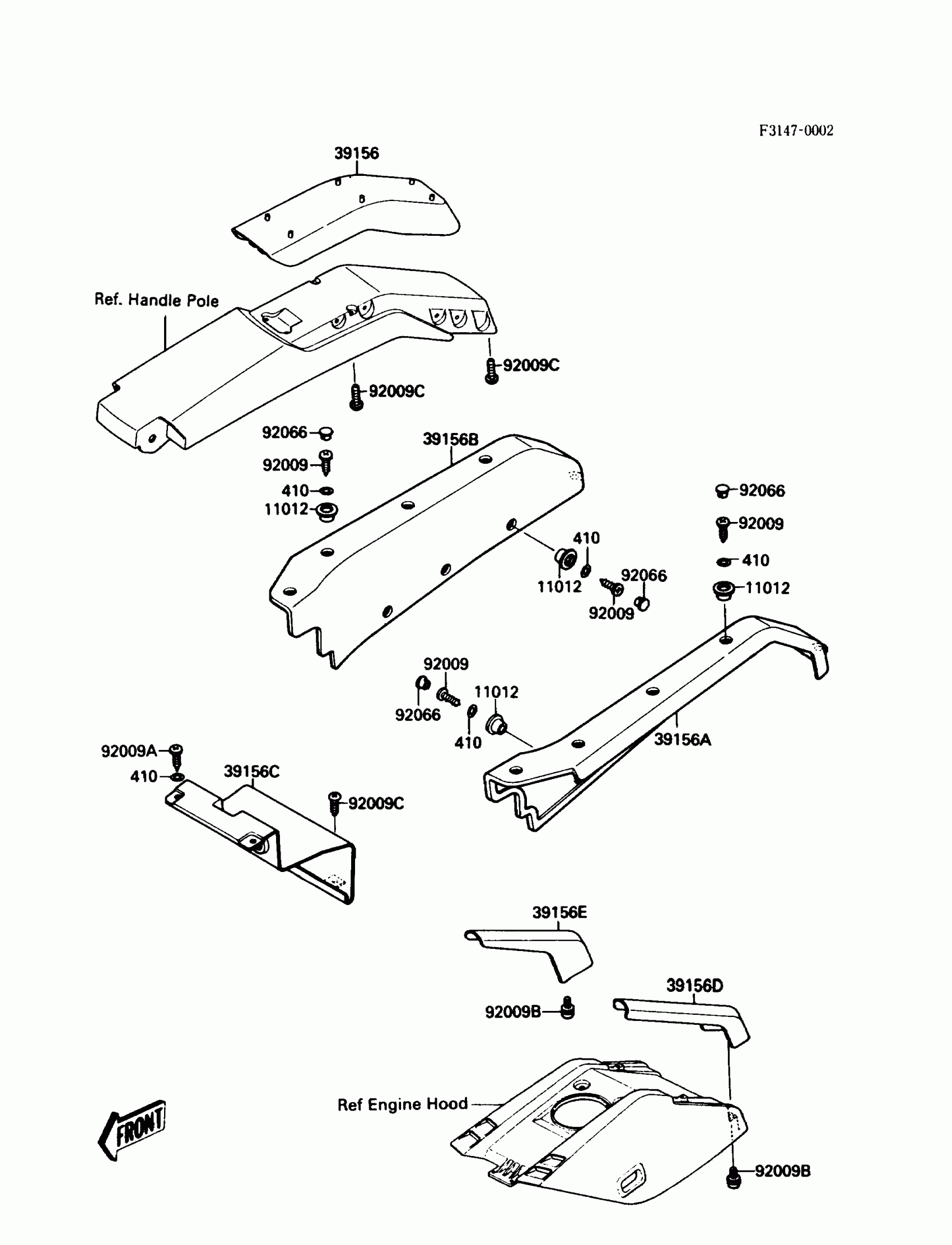

Kawasaki 650 SX Pads Diagram

CAP

PAD,HANDLE POLE

PAD,HULL DECK,LH

PAD,HULL DECK,RH

PAD,METER

PAD,ENGINE HOOD,LH

PAD,ENGINE HOOD,RH

WASHER-PLAIN-SMALL,6MM

SCREW,TAPPING,5X20

SCREW

SCREW,5X12

SCREW,TAPPING

WASHER,6MM

PLUG
