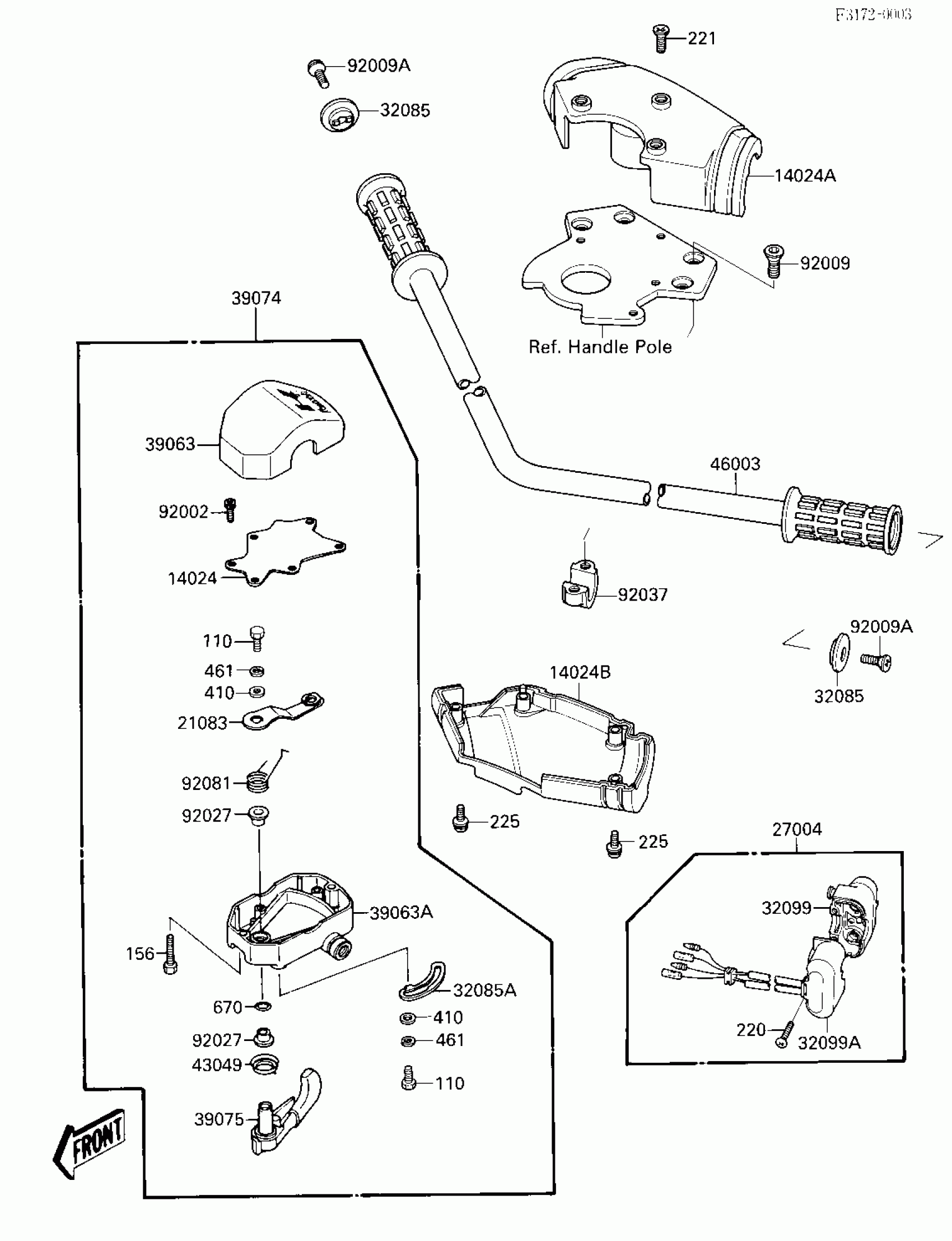

Kawasaki 650 SX HANDLEBAR Diagram

#

Description
Price

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

14024B

COVER,LWR

14024-3724

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$15.65

27004

SWITCH-ASSY

27004-3705

$321.15

32085

STOPPER

32085-3705

$4.83

32085A

STOPPER

32085-3709

Unavailable

32099

CASE,FR,SWITCH

32099-3721

$68.26

32099A

CASE,RR,SWITCH

32099-3723

$240.07

39063

HOUSING-CONTROL,UPP

39063-3703

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3705

$43.49

39074

LEVER-ASSY-THROTTLE

39074-3711

$226.26

39075

LEVER-THROTTLE

39075-3704

Unavailable

43049

PACKING,THROTTLE LEVER

43049-3701

$7.69

46003

HANDLE

46003-3705

$129.46

92002

BOLT,SOCKET,3X10

92002-3751

$5.46

92009

SCREW,8X22

92009-3701

$7.49

92009A

SCREW,6X16

92009-3703

$4.31

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92037

CLAMP,HANDLEBAR

92037-503

$16.01

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$6.52

110

BOLT,5X10

110R0510

$2.48

156

BOLT-WP,5X25

156R0525

$5.22

220

SCREW-PAN-CROS,5X30

220R0530

$4.87

221

SCREW-CSK-CROS,6X16

221R0616

$1.41

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.45

410

W-PLAIN-S,5MM

410S0500

$1.59

461

WASHER-SPRING,5MM

461S0500

$0.49

670

O RING,8MM

670B1508

$1.29
