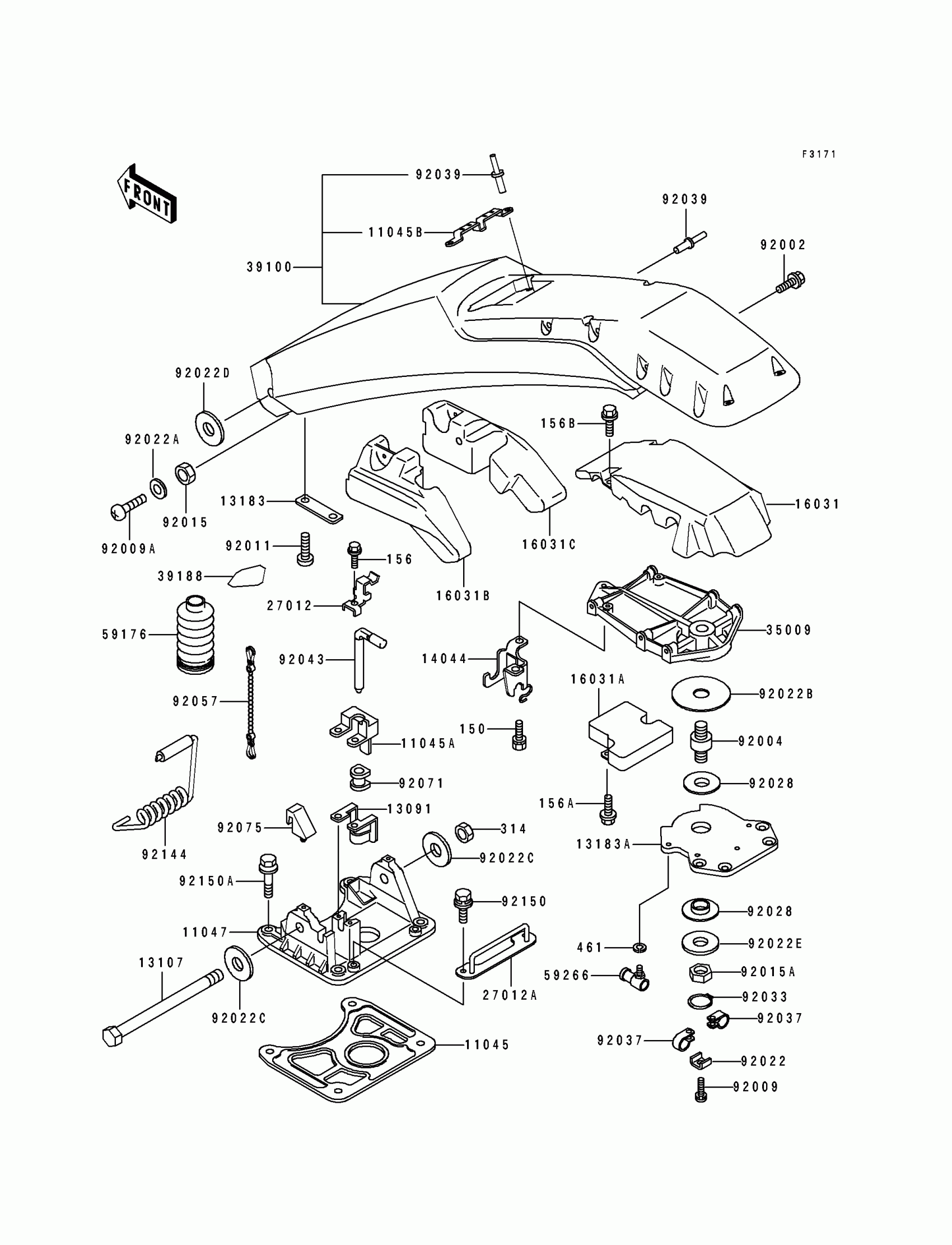

Kawasaki 650 SX Handle Pole(&NAMI.KAW64650 91) Diagram
#
11045
BRACKET,BACK-UP PLATE
11045-3722
Unavailable
11045A
BRACKET,POLE STOPPER
11045-3728
Unavailable
11045B
BRACKET,HANDLE POLE PAD
11045-3733
Unavailable
11047
BRACKET,PIVOT SHAFT
11047-3756
Unavailable
13091
HOLDER
13091-3717
Unavailable
13107
SHAFT,PIVOT
13107-3709
Unavailable
13183
PLATE
13183-3720
Unavailable
13183A
PLATE,HANDLEBAR
13183-3761
Unavailable
14044
HOLDER-CABLE
14044-3001
Unavailable
16031
FLOAT
16031-3715
$20.70
16031A
FLOAT,CNT
16031-3737
$9.45
16031B
FLOAT,LH
16031-3738
$7.40
16031C
FLOAT,RH
16031-3752
$11.10
27012
HOOK
27012-3717
Unavailable
27012A
HOOK,ENGINE HOOD
27012-3733
Unavailable
35009
BRACE
35009-3705
$134.41
39100
POLE-COMP-HANDLE,M.M.BLUE
39100-3707-TA
$638.70
39188
TAPE,(BLUE)
39188-3703
Unavailable
59176
CAP.
59176-514
Unavailable
59266
JOINT-BALL
59266-3701
$66.16
92002
BOLT,6X16
92002-3728
$4.69
92004
STUD
92004-3724
$89.30
92009
SCREW,5X16
92009-3736
$5.20
92009A
SCREW
92009-3738
$0.82
92011
SCREW
92011-562
$1.65
92015
NUT
92015-3015
$0.74
92015A
NUT,18MM
92015-3746
$15.25
92022
WASHER,CLAMP
92022-3014
$4.76
92022A
WASHER
92022-3042
$0.64
92022B
WASHER
92022-3716
Unavailable
92022C
WASHER,15X34X2.0
92022-3738
$6.57
92022D
WASHER,15X36X4.5
92022-3741
Unavailable
92022E
WASHER
92022-571
$36.16
92028
BUSHING
92028-3726
Unavailable
92033
RING-SNAP,15MM
92033-3710
$4.65
92037
CLAMP,LEAD WIRE
92037-3007
$7.31
92039
RIVET
92039-3701
$1.67
92043
PIN,POLE STOPPER
92043-3714
$22.53
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92071
GROMMET
92071-3752
$4.32
92075
DAMPER,POLE STOPPER
92075-3742
Unavailable
92144
SPRING,HANDLE POLE
92144-3716
$56.17
92150
BOLT,6X12
92150-3709
Unavailable
92150A
BOLT,8X30
92150-3721
$6.88
150
BOLT-WS,6X12
150R0612
$3.35
156
BOLT-WP,5X10
156R0510
$1.85
156A
BOLT-WP,5X12
156R0512
$2.28
156B
BOLT-WP,5X14
156R0514
$1.67
314
NUT-HEX-FINE,14MM
314R1400
$9.13
461
WASHER-SPRING,6MM
461S0600
$1.07
