BRAKE AND CHAINCASE RXL/RXL SKS (492132213221A)

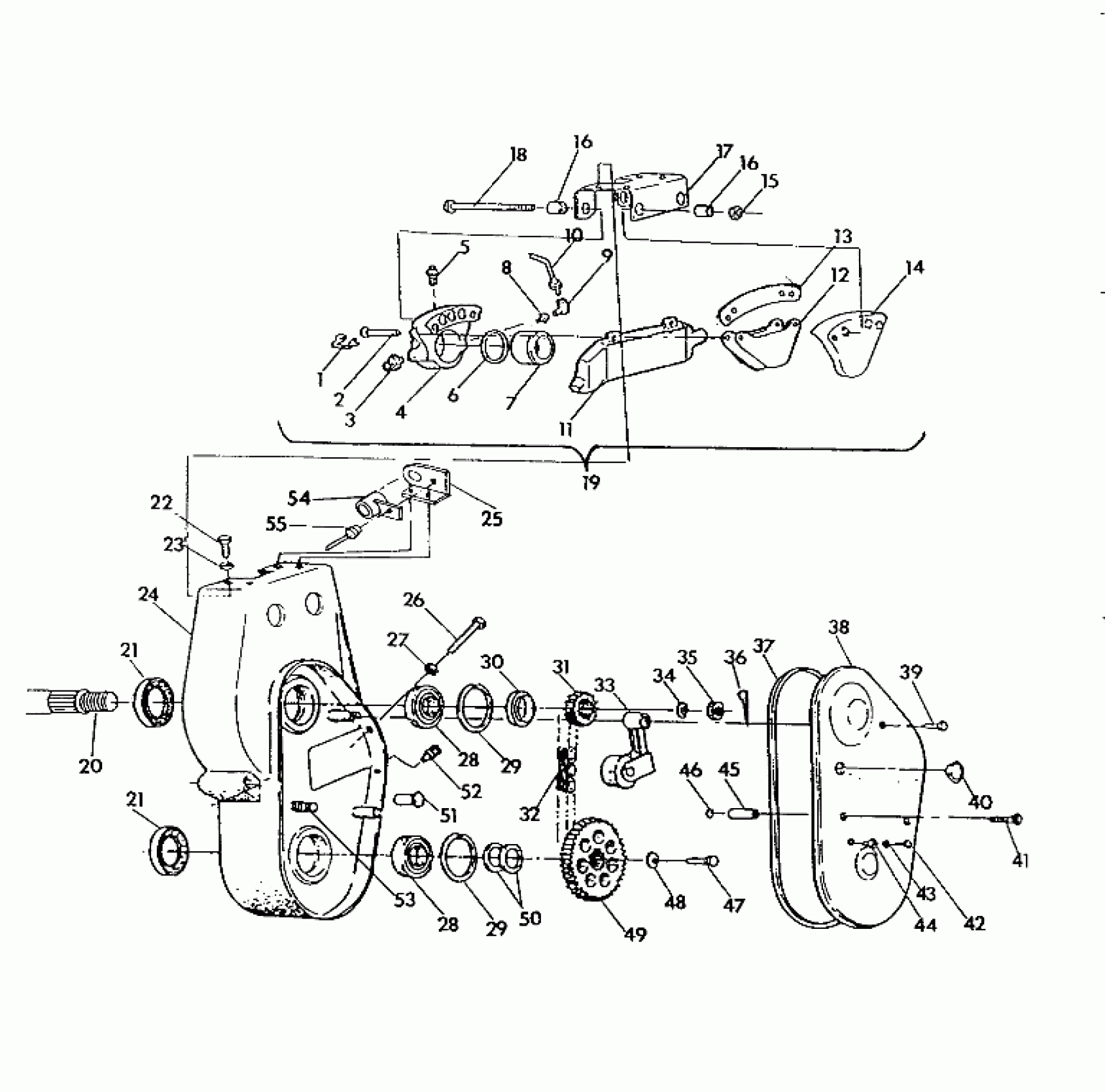

Polaris 650 RXL SKS - 0920568 BRAKE AND CHAINCASE RXL/RXL SKS (492132213221A) Diagram
#
1
CLIP-SPRING
1930562
Unavailable
2
PIN,PAD RETAINING
1930563
Unavailable
3
SWITCH-STOPLIGHT
4110046
Unavailable
4
CALIPER ASM, BRAKE
1930556
Unavailable
5
SCREW-BLEEDER
1930564
Unavailable
6
SEAL-PISTON
1930567
Unavailable
7
PISTON
1930568
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW
7052058
Unavailable
10
LINE,BRAKE
1930692
Unavailable
11
COOLER-BRAKE
2511154
$53.59
12
PAD, BRAKE
1930569
Unavailable
13
SPACER
5210999
Unavailable
14
CASTING-CARRIER
1930570
Unavailable
15
NUT
1930558
Unavailable
16
BUSHING
1930559
Unavailable
16
BUSHING
1930559
Unavailable
17
BRACKET
5223986
Unavailable
18
BOLT-BRIDGE
1930561
Unavailable
19
CALIPER BRAKE UNIT (Incl. 1-17)
1930587
Unavailable
20
SHAFT, INPUT Substituted by 1332135-067
5130787
Unavailable
21
SEAL-OIL
3610030
$20.22
21
SEAL-OIL
3610030
$20.22
22
BOLT(10)
7512240
$3.99
23
WASHER, SPLIT LOCK(10)
7552804
$3.19
24
CHAINCASE
5130795
Unavailable
25
BRACKET Substituted by 5222686-067
5222686
Unavailable
26
SCREW(10)
7515511
$3.99
27
NUT(10)
7542404
$1.59
28
BEARING,CHAINCASE
3514306
Unavailable
28
BEARING,CHAINCASE
3514306
Unavailable
29
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
29
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
30
SPACER, SPROCKET
5010270
Unavailable
31
SPKT, 21T (RXL SKS)
3221035
Unavailable
31
SPKT, 20T (RXL)
3221053
Unavailable
32
CHAIN 64 PITCH (RXL)
3224023
Unavailable
32
CHAIN 66 PITCH (RXL SKS)
3224024
Unavailable
33
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
34
WASHER, SLOTTED(10)
7571620
$7.19
35
NUT, SLOTTED(10)
7542810
$3.19
36
COTTER PIN(10)
7661401
$1.49
37
GASKET-CHAINCASE
5410277
$24.99
38
COVER,CHAINCASE
5222579
Unavailable
39
BOLT(10)
7512246
Unavailable
40
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
41
BOLT, S.S.(10)
7512293
Unavailable
42
SCREW(10)
7511909
$3.99
43
WASHER, FLAT(10)
7558201
$5.79
44
NUT-WELL(10)
7541918
Unavailable
45
STAND-OFF,C/C COVER
5333033
Unavailable
46
O RING
5410565
Unavailable
47
SCREW(10)
7515350
$3.97
48
WASHER(10)
7571618
$6.39
49
SPROCKET 35 T (RXL)
3222036
$53.59
49
SPROCKET 39T (RXL SKS)
3222034
Unavailable
50
WASHER SPECIAL(10)
7556509
$1.59
51
CAP, STUD COVER
5020569
Unavailable
52
PLUG, MAGNETIC
7051518
$12.35
53
BOLT(10)
7515477
$34.99
54
GUIDE, RECOIL
5431385
$10.51
55
RIVET,(50)
7621477
$1.19
