THROTTLE BODY RXL/RXL SKS (4921322132045A)

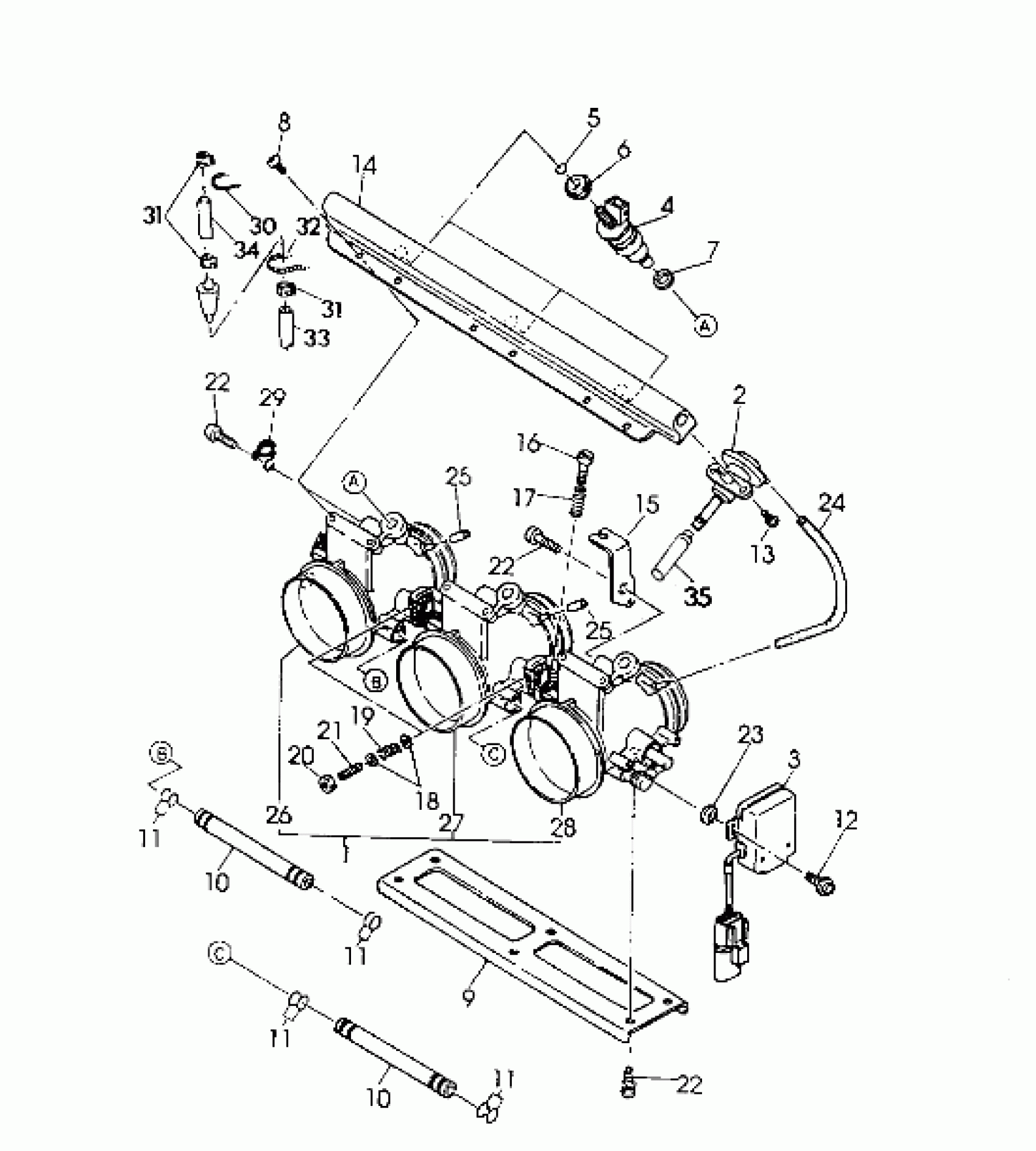

Polaris 650 RXL - 0920768 THROTTLE BODY RXL/RXL SKS (4921322132045A) Diagram
#
1
THROTTLEBODY ASM.
3084304
$977.58
2
REGULATOR,PRESSURE
3084053
Unavailable
3
SENSOR,THROTTLE POS. Substituted by 3084616
3084055
Unavailable
4
INJECTOR, FUEL
3084056
Unavailable
5
O RING, CONNECTOR
3084057
Unavailable
6
INSULATOR,UPPER
3084058
Unavailable
7
INSULATOR,LOWER
3084059
Unavailable
8
SCREW(10)
3084060
Unavailable
9
PLATE, STAY
3084305
$63.73
10
JOINT, PIPE
3084062
$38.79
10
JOINT, PIPE
3084062
$38.79
11
O RING
3084063
Unavailable
11
O RING
3084063
Unavailable
11
O RING
3084063
Unavailable
11
O RING
3084063
Unavailable
12
SCREW
3084064
$1.44
13
SCREW
3084065
Unavailable
14
PIPE,FUEL DELIVERY
3084306
Unavailable
15
STAY, (WIRE) (Wire)
3084307
Unavailable
16
SCREW, ADJUST.
3084068
$5.43
17
SPRING
3084069
Unavailable
18
WASHER(10)
3084070
Unavailable
19
SPRING
3084071
Unavailable
20
NUT
3084072
Unavailable
21
SCREW, ADJUST.
3084073
$10.63
22
SCREW Substituted by 3084392
3084074
Unavailable
22
SCREW Substituted by 3084392
3084074
Unavailable
22
SCREW Substituted by 3084392
3084074
Unavailable
23
GASKET
3084385
Unavailable
24
PIPE, RUBBER
3084308
Unavailable
25
CAP, RUBBER
3084077
Unavailable
25
CAP, RUBBER
3084077
Unavailable
26
THROTTLEBODY 1 ASM.
3084309
Unavailable
27
THROTTLEBODY 2 ASM.
3084310
Unavailable
28
THROTTLEBODY 3 ASM.
3084311
Unavailable
29
CLAMP, HOSE
3084312
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
31
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
32
STRAP, PANDUIT
7080418
Unavailable
33
FUEL LINE Substituted by 8450044-153
8450044-22
Unavailable
34
FUEL LINE Substituted by 8450044-153
8450044-27
Unavailable
35
FUEL LINE Substituted by 8450045-153
8450045-56
Unavailable
