OIL TANK/AIR BOX ASSEMBLY RXL/RXL SKS (4921322132033A)

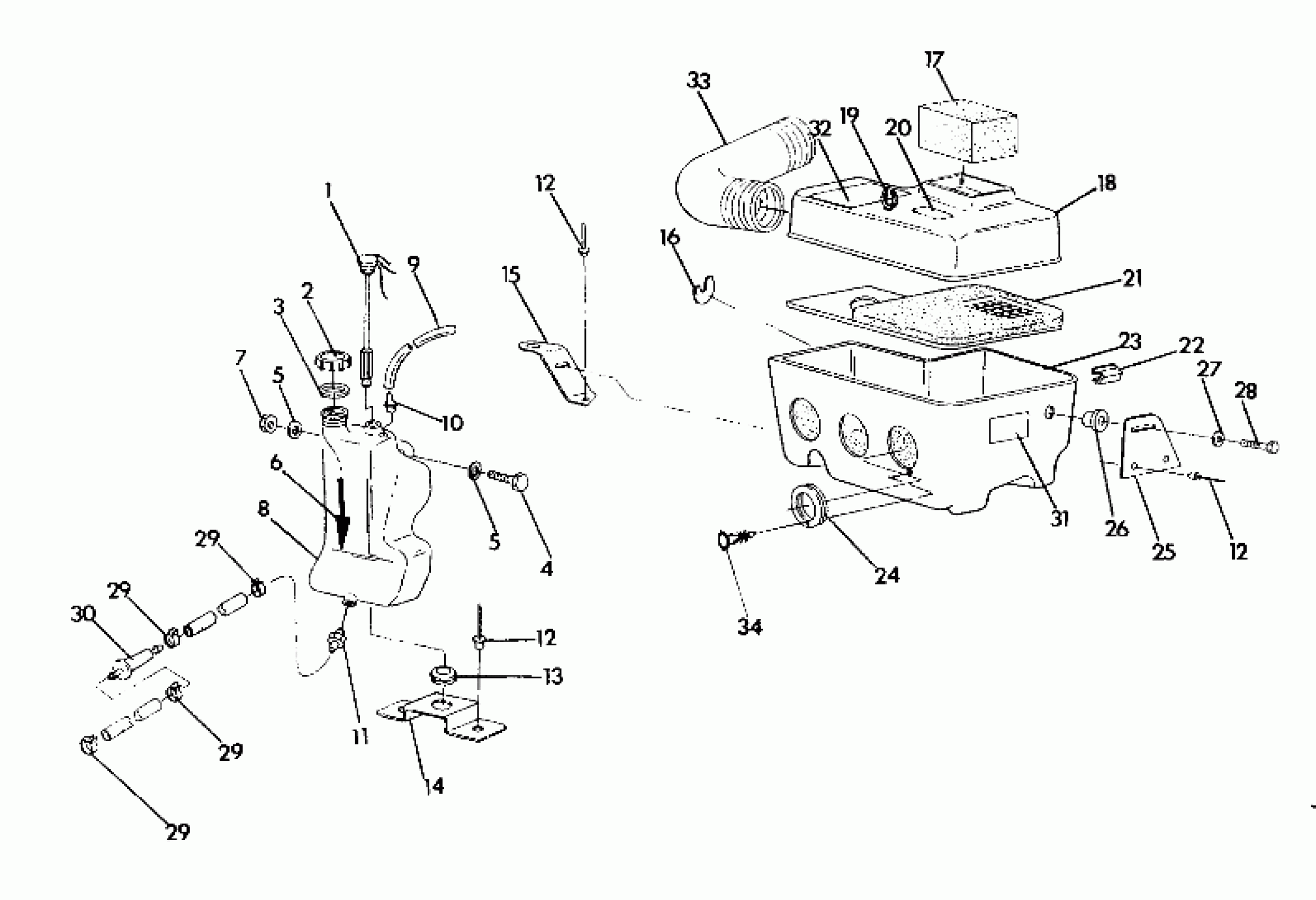

Polaris 650 RXL - 0920768 OIL TANK/AIR BOX ASSEMBLY RXL/RXL SKS (4921322132033A) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
7
NUT-LOCK(10)
7542122
$1.49
8
TANK, OIL
5430997
Unavailable
9
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
10
VENT-TANK
5430579
Unavailable
11
FITTING, OUTLET
7052042
$8.99
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
13
GROMMET RUBBER
5410021
Unavailable
14
BRACKET
5223985
Unavailable
15
BRKT,AIR SILENCER
5222617-067
Unavailable
16
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
17
INTAKE ASM, FOAM
1253107
$36.41
18
COVER,SILENCER(DRILLED)
5431220
Unavailable
19
CLAMP,WIRE ROUTING(10)
7080409
$2.39
20
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
21
BAFFLE ASM.
1253104
Unavailable
22
CLIP, AIR BOX,(10)
7670055
$7.99
23
SILENCER,INTAKE(DRILLED)
5431192
Unavailable
24
O RING
5410565
Unavailable
25
BRACKET, SILENCER
5211274
$9.70
26
NUT-WELL(10)
7541923
$5.59
27
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
28
SCREW(10)
7512279
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
31
DECAL, GREASING [No Longer Available]
7073426
$7.27
32
DECAL,COOLING SYSTEM [No Longer Available]
7072131
Unavailable
33
HOSE-INLET
5410251
Unavailable
34
FASTENER,PANEL,NYLON,(10)
7670076
$7.99
