HOOD ASSEMBLY RXL/RXL SKS (4921322132007A)

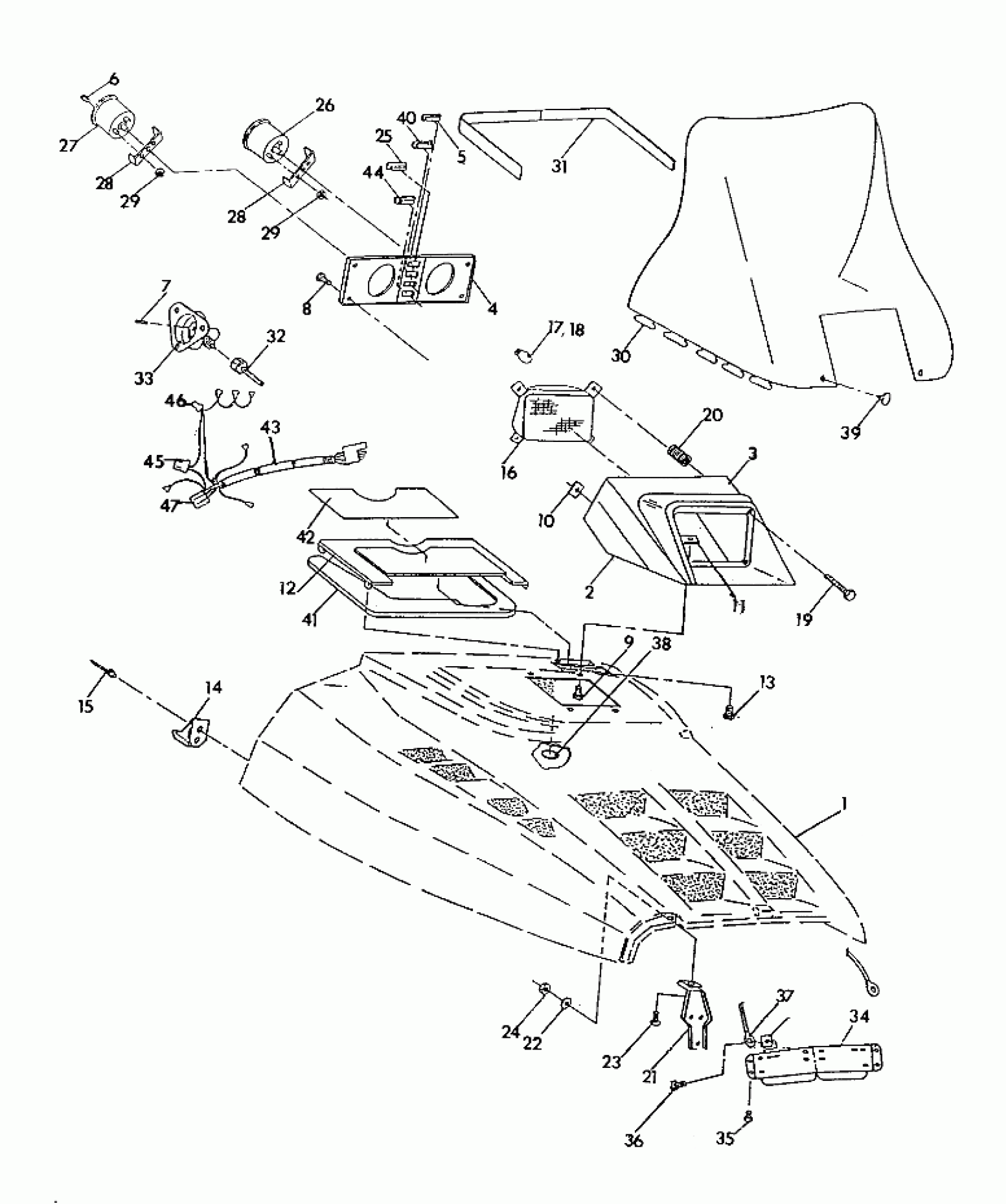

Polaris 650 RXL - 0920768 HOOD ASSEMBLY RXL/RXL SKS (4921322132007A) Diagram
#
1
HOOD,CLASSIC&RXL Substituted by 2631574-145
5431194-145
Unavailable
2
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
3
HSG,INST,TOP,BLK
5430923-070
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
KNOB,TRIP ODOMETER
3280103
$3.83
7
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
8
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
9
SCREW, SEMS(10)
7512283
$3.99
10
NUT, SPEED(10)
7670056
Unavailable
11
NUT, SPEED(10)
7670057
$1.49
12
PANEL,INTAKE,BLUE Substituted by 2620078-145
5431195-145
Unavailable
13
SCREW(10)
7511840
Unavailable
14
CUP, HOOD LATCH,(10)
5430733
$4.84
15
RIVET(50)
7621334
$1.49
16
HEADLIGHT ASM.
4032040
Unavailable
17
BULB, H/L
4030028
$29.99
18
BULB,QUARTZ.H/L,INDY (Optional)
2870448
$24.99
19
SCREW, ADJ.(10)
4032003
Unavailable
20
SPRING-ADJ
4032002
Unavailable
21
HINGE ASM,HD,BLK
2635005-067
$16.67
22
WASHER,WROUGHT(10)
7558302
$1.59
23
BOLT-CARRIAGE(10)
7512263
$3.99
24
NUT-LOCK(10)
7542122
$1.49
25
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
26
SPEEDOMETER
3280092
$111.99
27
TACHOMETER,3 CYL. Substituted by 3280192
3280096
Unavailable
28
BRACKET
3280098
Unavailable
28
BRACKET
3280098
Unavailable
29
NUT
3280063
Unavailable
29
NUT
3280063
Unavailable
30
WINDSHIELD,STD,SMOKE BLUE Substituted by 5431144 (RXL SKS)
5431332
$134.99
30
WINDSHIELD,LO.BLUE(INDY) (RXL)
5431323
Unavailable
31
PAD,W/S,LH,BLACK
5810437
Unavailable
31
PAD,W/S,RH,BLACK
5810438
$1.67
32
CABLE,SPEEDO.
3280094
$60.70
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
SCREW(10)
7511861
Unavailable
36
SCREW(10)
7511989
Unavailable
37
CABLE,HOOD RETAINER
7080368
$10.51
38
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
39
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
40
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
41
SEAL, INTAKE
5810597
Unavailable
42
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
43
HARNESS,HEADLIGHT
2460308
Unavailable
44
INDICATOR,'ACC'WARN.
4040014
Unavailable
45
Housing
4020115
$1.59
46
HOUSING
4020114
Unavailable
47
HOUSING
4020052
Unavailable
