FRONT SUSPENSION and SKI RXL/RXL SKS (4921322132015A)

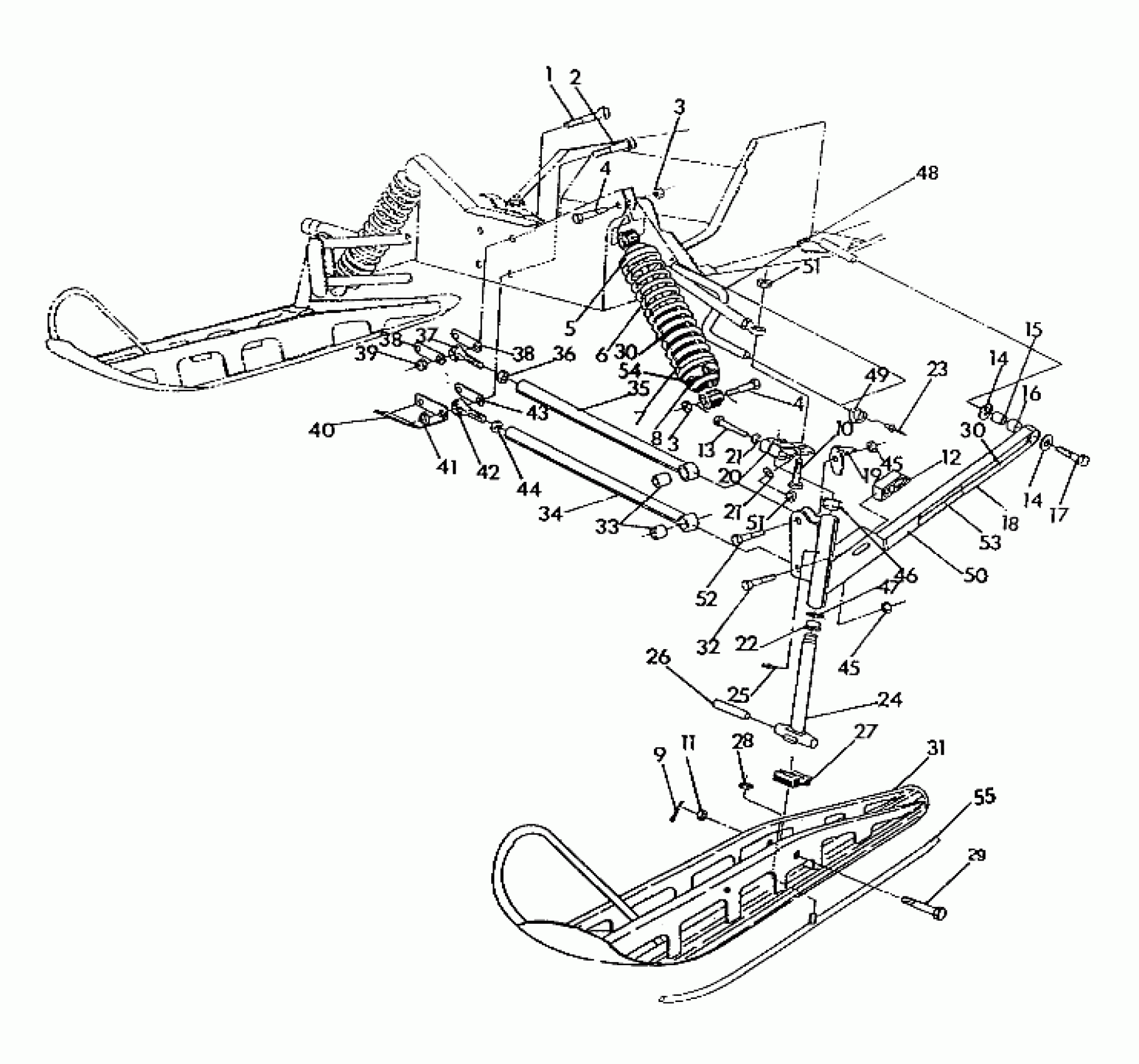

Polaris 650 RXL - 0920768 FRONT SUSPENSION and SKI RXL/RXL SKS (4921322132015A) Diagram
#
1
SCREW(10)
7512522
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
5
RETAINER-TOP
5220225
$10.39
6
SPRING Substituted by 7041261-067
7041261-156
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSPENSION
7041243
Unavailable
9
SHOCK,FRONT
7041251
Unavailable
10
BOLT(10)
7512404
$3.99
11
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
12
SLIDE-SWAYBAR (RXL SKS)
5410384
Unavailable
12
SLIDE,(FR.SUSP.) (RXL)
5410385
Unavailable
13
BOLT Substituted by 7515491
7515433
$1.59
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH,BLK. Substituted by 1822427
1822053-067
Unavailable
18
ARM,TRLG,RH,BLK. Substituted by 1822428
1822052-067
Unavailable
19
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
19
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
20
Arm, Steering
5220326-067
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
RIVET(50)
7621433
$1.49
24
SPINDLE,BLK. Substituted by 5130919-067
6230055-067
Unavailable
25
ZERK,FITTING,THREADED(10)
7080433
$1.49
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
STOP-RUBBER
5521094
Unavailable
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
BOLT(10)
7515462
$8.79
30
SLEEVE,SPRING PROTECTOR (RXL Only)
5431032
$31.99
30
SLEEVE,SPRING PROTECTOR (RXL Only)
5431032
$31.99
31
SKI Substituted by 1820332-067
1820265
Unavailable
32
BOLT(10) Substituted by 7515492
7512410
Unavailable
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD,RADIUS,BLACK (RXL SKS)
1822045-067
Unavailable
34
ROD,RADIUS,(BLK.)LOW (RXL)
1822055-067
Unavailable
35
ROD,RADIUS,BLACK (RXL SKS)
1822037-067
Unavailable
35
ROD, RADIUS,(BLK.) (RXL)
1822054-067
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END RH
7060126
Unavailable
38
STRAP-SPACER
5220178
$1.49
38
STRAP-SPACER
5220178
$1.49
39
NUT, LOCK,(10)
7542503
$10.39
40
BRACE, PAN
5223997-067
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END
7060127
Unavailable
43
STRAP-SPACER BOTTOM
5220227
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
NUT LOCK(10)
7542411
$3.19
45
NUT LOCK(10)
7542411
$3.19
46
BUSHING-FLANGE
3573909
$2.39
47
WASHER SPECIAL(10)
7556509
$1.59
48
BAR,SWAY,BLACK (RXL SKS)
5224237-067
Unavailable
48
BAR, SWAY, (BLK.) (RXL)
5224240-067
$49.21
49
BUSHING-SWAYBAR (RXL SKS)
5410383
Unavailable
49
BUSHING,SWAYBAR (RXL)
5410386
Unavailable
50
DECAL, IFS [No Longer Available]
7073284
Unavailable
53
DECAL(25.0'')RED,TOP [No Longer Available]
7072569
Unavailable
54
CAM,ADJUSTING SPRING (RXL Only)
5630334
$32.37
55
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
