ENGINE MOUNTING RXL/RXL SKS (4921322132031A)

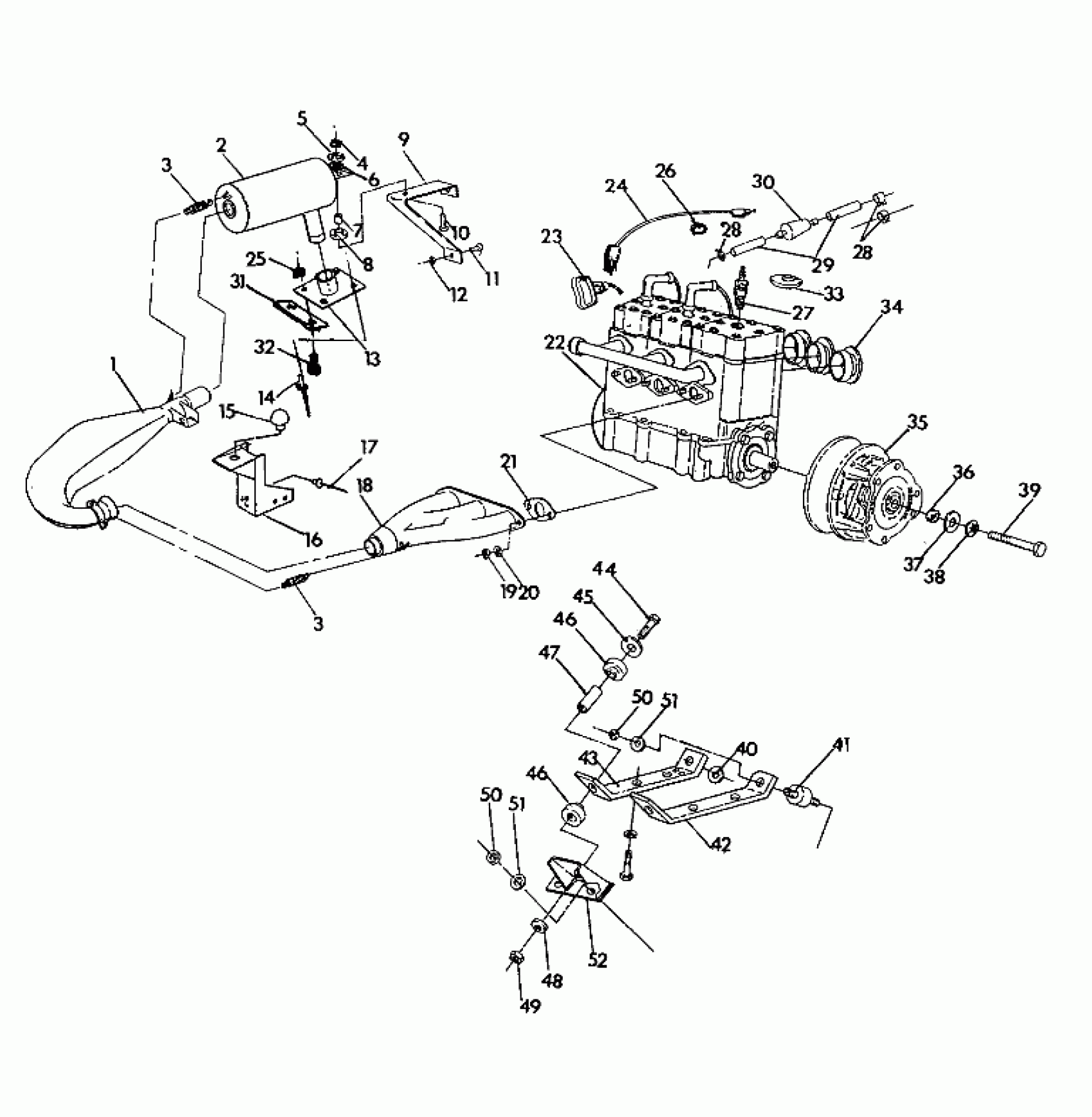

Polaris 650 RXL - 0920768 ENGINE MOUNTING RXL/RXL SKS (4921322132031A) Diagram
#
1
MUFFLER, (650SPEC.)
1260554
Unavailable
2
RESONATOR [No Longer Available]
1260550
Unavailable
3
SPRING, EXHAUST(10)
7042031
$5.65
3
SPRING, EXHAUST(10)
7042031
$5.65
4
NUT-LOCK(10)
7542122
$1.49
5
WASHER(10)
7558221
$2.39
6
WASHER,RUBBER
5410436
$1.59
7
BUSHING-RES. MT.
5010192
$6.39
8
DAMPENER
5410241
Unavailable
9
SUPPORT,R.MUFFLER,BLK.
5220695-067
Unavailable
10
BOLT-CARRIAGE(10)
7512275
$3.99
11
BOLT(10)
7512193
$2.39
13
STINGER,OUTLET,(RXL)
1260569-067
Unavailable
14
RIVET(50)
7621431
$1.49
15
DAMPNER, VIB.
5410467
$8.79
16
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
18
MANIFOLD WELD,BLK. Substituted by 1260477-029
1260477
Unavailable
19
NUT(10)
3080285
Unavailable
20
WASHER LOCK ,(10)
3080530
$3.19
21
GASKET, EXHAUST
3083770
Unavailable
22
ENG,EC65PL-03(EFI) [No Longer Available]
1211463
Unavailable
23
HANDLE-RECOIL
5430520
Unavailable
24
CABLE,THROTTLE Substituted by 7080555
7080403
Unavailable
25
NUT, LOCK(10)
7542103
$5.59
26
CLIP(10)
7080278
$2.63
27
SPARKPLUG(8)
3070165
$3.99
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
30
FILTER FUEL,(10)
2530008
$4.84
31
Deflector, Snow
5222615-067
$20.63
32
BOLT(10)
7515103
Unavailable
33
CAP, PRESSURE
2511155
Unavailable
34
BOOT, RELIEVED
5410585
Unavailable
35
CLUTCH, DRIVE Substituted by 1321578
1321546
Unavailable
36
BUSHING-.437 X.770 X.50
5430261
$7.19
37
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
38
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
39
BOLT(10)
7512565
$19.99
40
WASHER(10)
7555721
$1.49
41
MOUNT
3110022
Unavailable
42
PLATE,ENG.,LH
5220704
Unavailable
43
PLATE,ENG.,RH
5220705
$38.41
44
SCREW(10)
7512533
$1.75
45
WASHER(10)
7555740
$1.59
46
MOUNT, ENGINE
5410390
Unavailable
46
MOUNT, ENGINE
5410390
Unavailable
47
SPACER, (MTR.MT.)
5332778
Unavailable
48
WASHER(10)
7555801
$3.99
49
NUT,FLEX LOC(10)
7542507
$3.99
50
NUT-LOCK(10)
7542439
$1.49
50
NUT-LOCK(10)
7542439
$1.49
51
WASHER(10) Substituted by 7555806
7555720
$0.79
51
WASHER(10) Substituted by 7555806
7555720
$0.79
52
MOUNT, FRONT
1011502-067
Unavailable
