BRAKE AND CHAINCASE 650 RXL (4919531953017A)

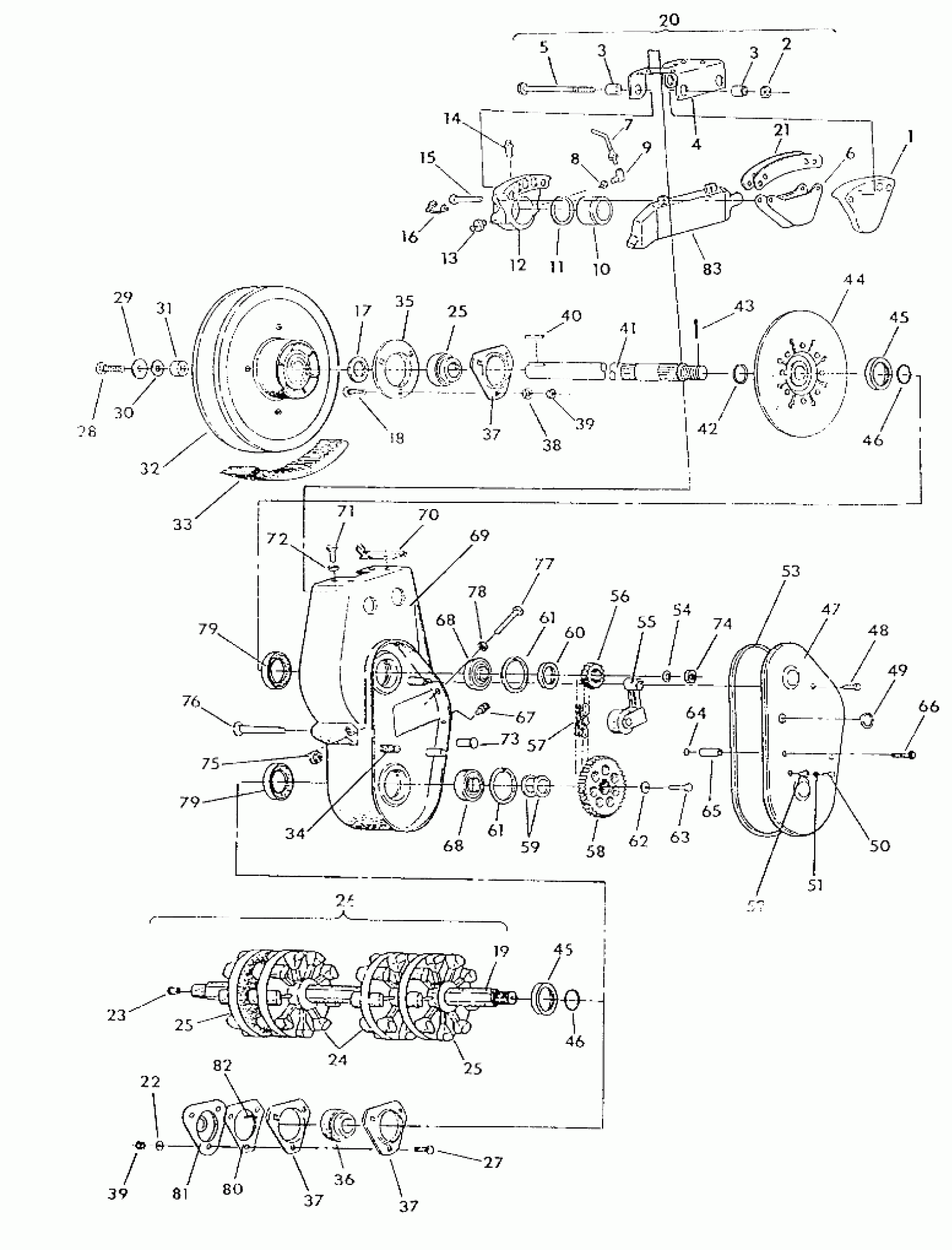

Polaris 650 RXL - 0920768 BRAKE AND CHAINCASE 650 RXL (4919531953017A) Diagram
#
1
CASTING-CARRIER
1930570
Unavailable
2
NUT
1930558
Unavailable
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET
5223986
Unavailable
5
BOLT-BRIDGE
1930561
Unavailable
6
PAD, BRAKE
1930569
Unavailable
7
LINE,BRAKE
1930692
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW
7052058
Unavailable
10
PISTON
1930568
Unavailable
11
SEAL-PISTON
1930567
Unavailable
12
CALIPER ASM, BRAKE Substituted by 1930556
1930566
Unavailable
13
SWITCH-STOPLIGHT
4110046
Unavailable
14
SCREW-BLEEDER
1930564
Unavailable
15
PIN,PAD RETAINING
1930563
Unavailable
16
CLIP-SPRING
1930562
Unavailable
17
WASHER SPECIAL(10)
7556509
Unavailable
18
BOLT(10) Substituted by 7512377
7512394
Unavailable
19
DRIVE SHAFT
5020388
Unavailable
20
CALIPER ASM, BRAKE
1930556
Unavailable
21
SPACER
5210999
Unavailable
22
WASHER(10)
7555725
Unavailable
23
BUSHING METAL SPEEDO
3280019
$11.99
24
SPROCKET, 9T
5430571
Unavailable
25
SPROCKET, HALF,9T
5430993
Unavailable
25
SPROCKET, HALF,9T
5430993
Unavailable
25
SPROCKET, HALF,9T
5430993
Unavailable
26
DRIVESHAFT ASM.
1590218
Unavailable
27
BOLT(10)
7512331
$3.99
28
BOLT(10)
7515301
Unavailable
29
WASHER FLAT(10)
7555701
$3.99
30
WASHER(10)
7555734
Unavailable
31
SPACER
5020291
Unavailable
32
CLUTCH ASM,(36 DEG.) Substituted by 1322105
1322132
Unavailable
33
BELT DRIVE(5)
3211042
$109.99
34
BOLT(10)
7515477
$34.99
35
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
36
BEARING,1 IN.(GREASEABLE)
3514511
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
38
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
KEY,(10)
7727003
Unavailable
41
SHAFT, INPUT Substituted by 1332135-067
5130787
Unavailable
42
RING, RETAINING(10)
7710422
$3.99
43
COTTER PIN(10)
7661401
$1.49
44
DISC, BRAKE Substituted by 1910064
5210744
Unavailable
45
SLEEVE, SEAL
5020588
$23.99
45
SLEEVE, SEAL
5020588
$23.99
46
O RING,(10)
5410613
$1.99
46
O RING,(10)
5410613
$1.99
47
DESC NOT_AVAILABLE
5223579
Unavailable
48
BOLT(10)
7512246
Unavailable
49
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
50
SCREW(10)
7511909
$3.99
51
WASHER, FLAT(10)
7558201
$5.79
52
NUT-WELL(10)
7541918
Unavailable
53
GASKET-CHAINCASE
5410277
$24.99
54
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 21 T
3221035
Unavailable
57
CHAIN,SILENT,66P Substituted by 3224024
3224050
Unavailable
57
CHAIN Substituted by 3224023
3224049
Unavailable
58
SPROCKET 35 T
3222036
$53.59
58
SPROCKET 39 T
3222034
Unavailable
60
SPACER Substituted by 5010270
5010128
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
WASHER(10)
7571618
$6.39
63
BOLT(10)
7512325
$2.39
64
O RING
5410565
Unavailable
65
STAND-OFF,C/C COVER
5333033
Unavailable
66
BOLT, S.S.(10)
7512293
Unavailable
67
PLUG,PIPE
7052045
$12.79
68
BEARING,CHAINCASE
3514306
Unavailable
68
BEARING,CHAINCASE
3514306
Unavailable
69
CHAINCASE
5130795
Unavailable
70
RETAINER, RECOIL Substituted by 1011593-067
1011593
Unavailable
71
BOLT(10)
7512240
$3.99
72
LOCK WASHER(10)
7552801
$1.59
73
CAP, STUD COVER
5020569
Unavailable
74
NUT, SLOTTED(10)
7542810
$3.19
75
NUT(10)
7542423
$3.99
76
BOLT(10)
7515428
$4.79
77
SCREW(10)
7512470
Unavailable
78
Nut, Tension Adjust
7542404
$1.59
79
SEAL-OIL
3610030
$20.22
79
SEAL-OIL
3610030
$20.22
80
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
81
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
82
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
