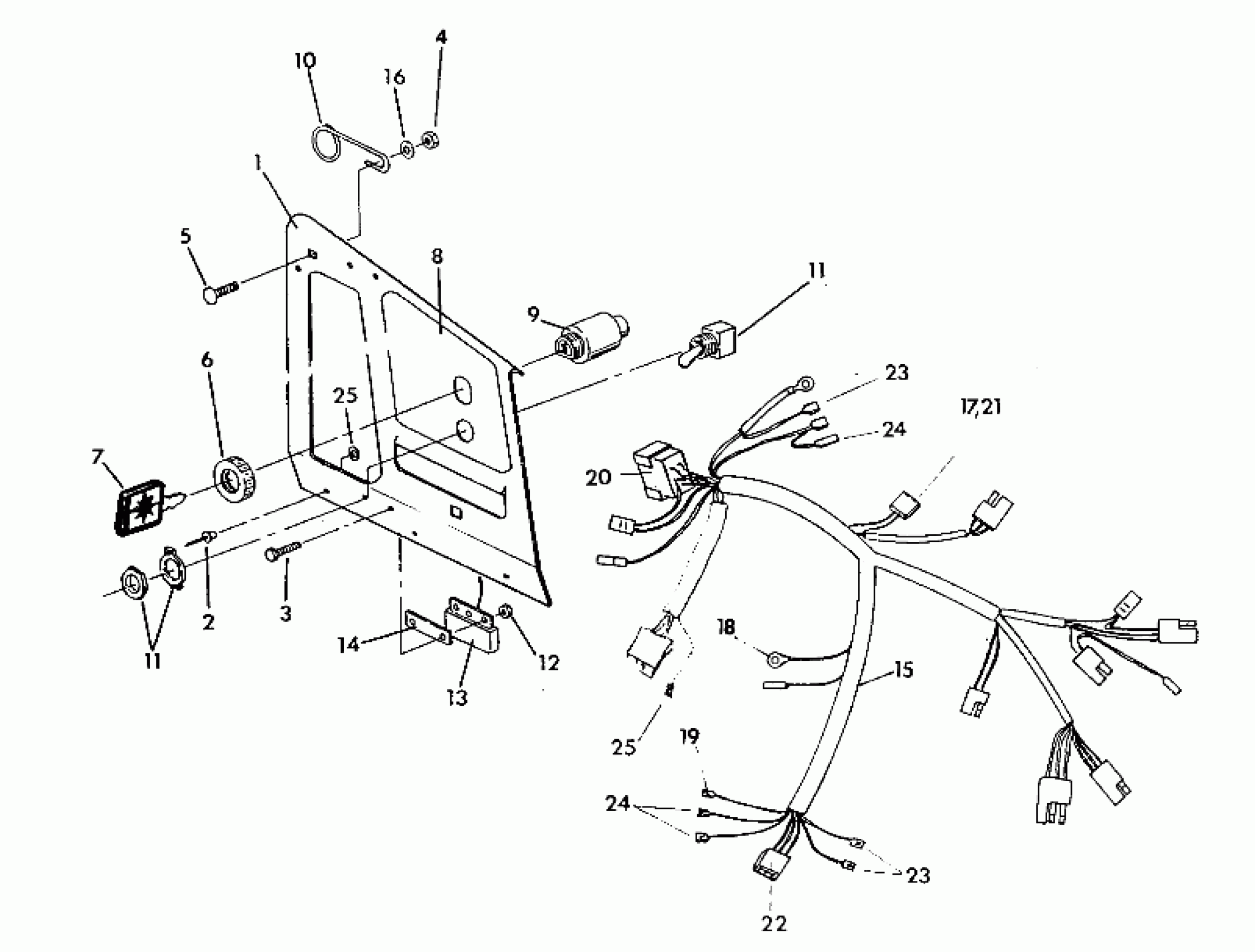

Polaris 650 RXL - 0910768 CONSOLE 650 RXL (4919531953006A) Diagram
#
Description
Price
1
CONSOLE Substituted by 5222568-067
5222568
Unavailable
2
POP RIVET(50)
7621425
$1.49
3
SCREW(10)
7512007
$3.99
4
NUT-LOCK(10)
7542122
$1.49
5
BOLT-CARRIAGE(10)
7512263
$3.99
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
KEY, IGNITION
5410378
$13.75
8
DECAL, CONSOLE [No Longer Available]
7073073
Unavailable
9
SWITCH,IGN.(E/S) Substituted by 2200358
4110110
$76.89
10
MOUNT, RING RECOIL
5224441
Unavailable
11
SW,HEATER,HI-LOW
4110077
Unavailable
11
SW,HEATER,HI-LOW
4110077
Unavailable
12
NUT(10)
7541925
$1.49
13
REGULATOR - MINKS
4060071
Unavailable
14
HEAT SINK
5210650
Unavailable
15
HARNESS, MAIN WIRE
2460321
Unavailable
16
WASHER,WROUGHT(10)
7558302
$1.59
17
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
17
TERMINAL
4020113
Unavailable
18
TERMINAL, RING Substituted by 4020092
2200029
Unavailable
19
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Unavailable
20
Housing w/Receptacle
4020057
$3.51
21
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
22
CONN., IGN.SWITCH
4020098
Unavailable
23
RECEPTACLE
4020147
Unavailable
23
RECEPTACLE
4020147
Unavailable
24
RECEPTACLE Substituted by 4020144
4020095
Unavailable
24
RECEPTACLE Substituted by 4020144
4020095
Unavailable
25
KIT,IGN.SWITCH NOTE: If only key is needed, order P/N 4110112 and specify If for an A, B, C, D, or E switch. Letter code will be labelled on switch body behind console.
2200358
Unavailable
25
KIT,IGN. SWITCH (Incl. 6, 7, 9)
2200357
Unavailable
25
KIT,IGN. SWITCH
2200357
Unavailable
25
RECEPTACLE
4020101
Unavailable
25
KIT,IGN.SWITCH NOTE: If only key is needed, order P/N 4110112 and specify If for an A, B, C, D, or E switch. Letter code will be labelled on switch body behind console.
2200358
Unavailable
25
KIT,IGN. SWITCH (Incl. 6, 7, 9)
2200357
Unavailable
25
KIT,IGN. SWITCH
2200357
Unavailable
25
RECEPTACLE
4020101
Unavailable
