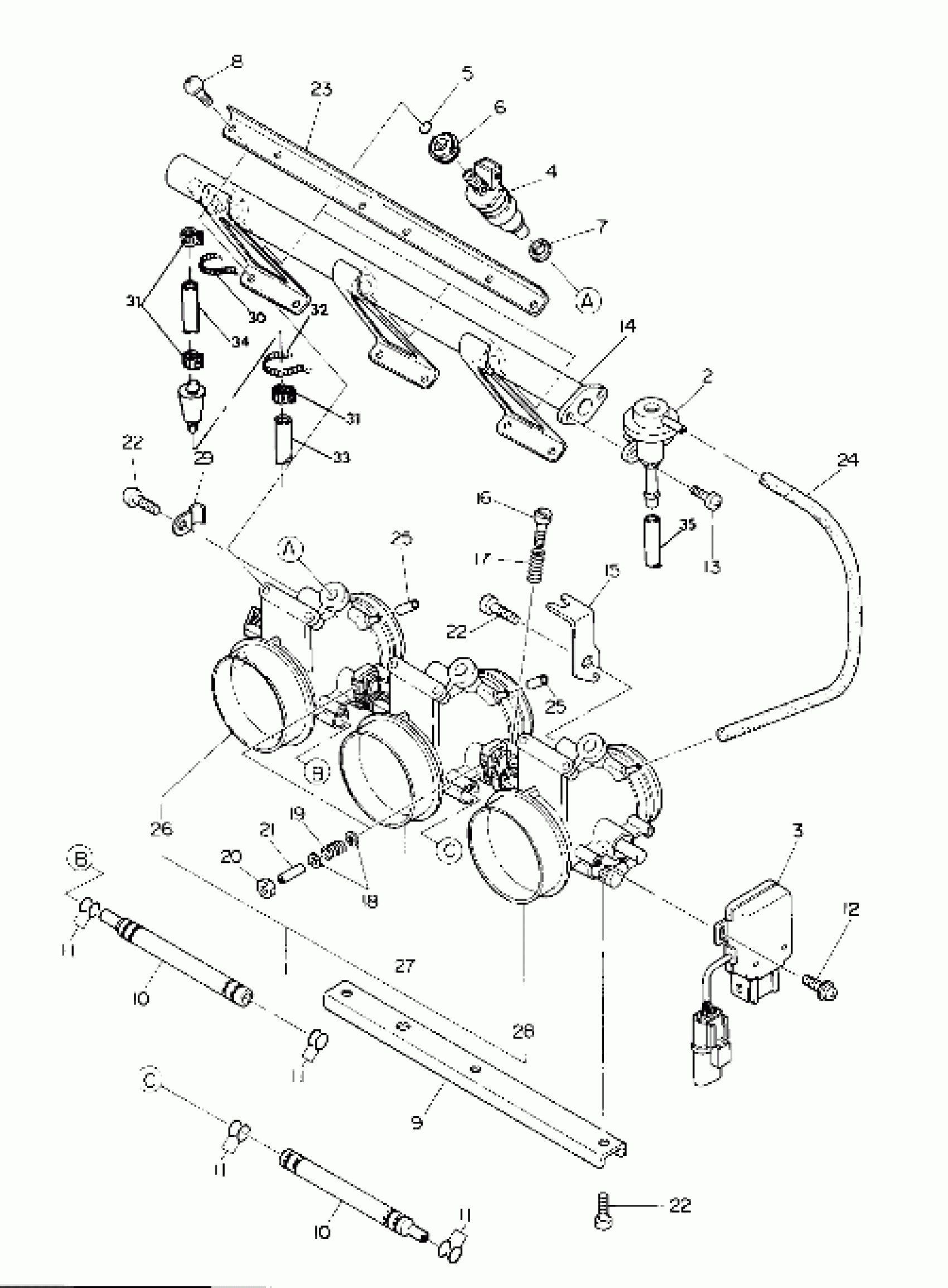

Polaris 650 RXL - 0900768 Throttle Body (4918391839032A) Diagram
#
2
REGULATOR,PRESSURE
3084053
Unavailable
3
SENSOR,THROTTLE POS. Substituted by 3084616
3084055
Unavailable
4
INJECTOR, FUEL
3084056
Unavailable
5
O RING, CONNECTOR
3084057
Unavailable
6
INSULATOR,UPPER
3084058
Unavailable
7
INSULATOR,LOWER
3084059
Unavailable
8
SCREW(10)
3084060
Unavailable
9
PLATE, STAY
3084061
Unavailable
10
JOINT, PIPE
3084062
$38.79
10
JOINT, PIPE
3084062
$38.79
11
O RING
3084063
Unavailable
11
O RING
3084063
Unavailable
11
O RING
3084063
Unavailable
11
O RING
3084063
Unavailable
12
SCREW
3084064
$1.44
13
SCREW
3084065
Unavailable
14
PIPE,FUEL DELIVERY
3084306
Unavailable
15
STAY, (WIRE) (Wire)
3084067
Unavailable
16
SCREW, ADJUST.
3084068
$5.43
17
SPRING
3084069
Unavailable
18
WASHER(10)
3084070
Unavailable
19
SPRING
3084071
Unavailable
20
NUT
3084072
Unavailable
21
SCREW, ADJUST.
3084073
$10.63
22
SCREW Substituted by 3084392
3084074
Unavailable
22
SCREW Substituted by 3084392
3084074
Unavailable
22
SCREW Substituted by 3084392
3084074
Unavailable
23
PLATE #2, STAY
3084075
Unavailable
24
PIPE, RUBBER
3084076
Unavailable
25
CAP, RUBBER
3084077
Unavailable
25
CAP, RUBBER
3084077
Unavailable
26
BODY ASM#1,THROTTLE
3084078
Unavailable
27
BODY ASM#2,THROTTLE
3084079
Unavailable
28
BODY ASM#3
3084080
Unavailable
29
CLAMP, HOSE
3084081
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
31
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
32
STRAP, PANDUIT
7080418
Unavailable
33
FUEL LINE Substituted by 8450044-153
8450044-22
Unavailable
34
FUEL LINE Substituted by 8450044-153
8450044-27
Unavailable
35
DESC NOT_AVAILABLE
8450003-61
Unavailable
