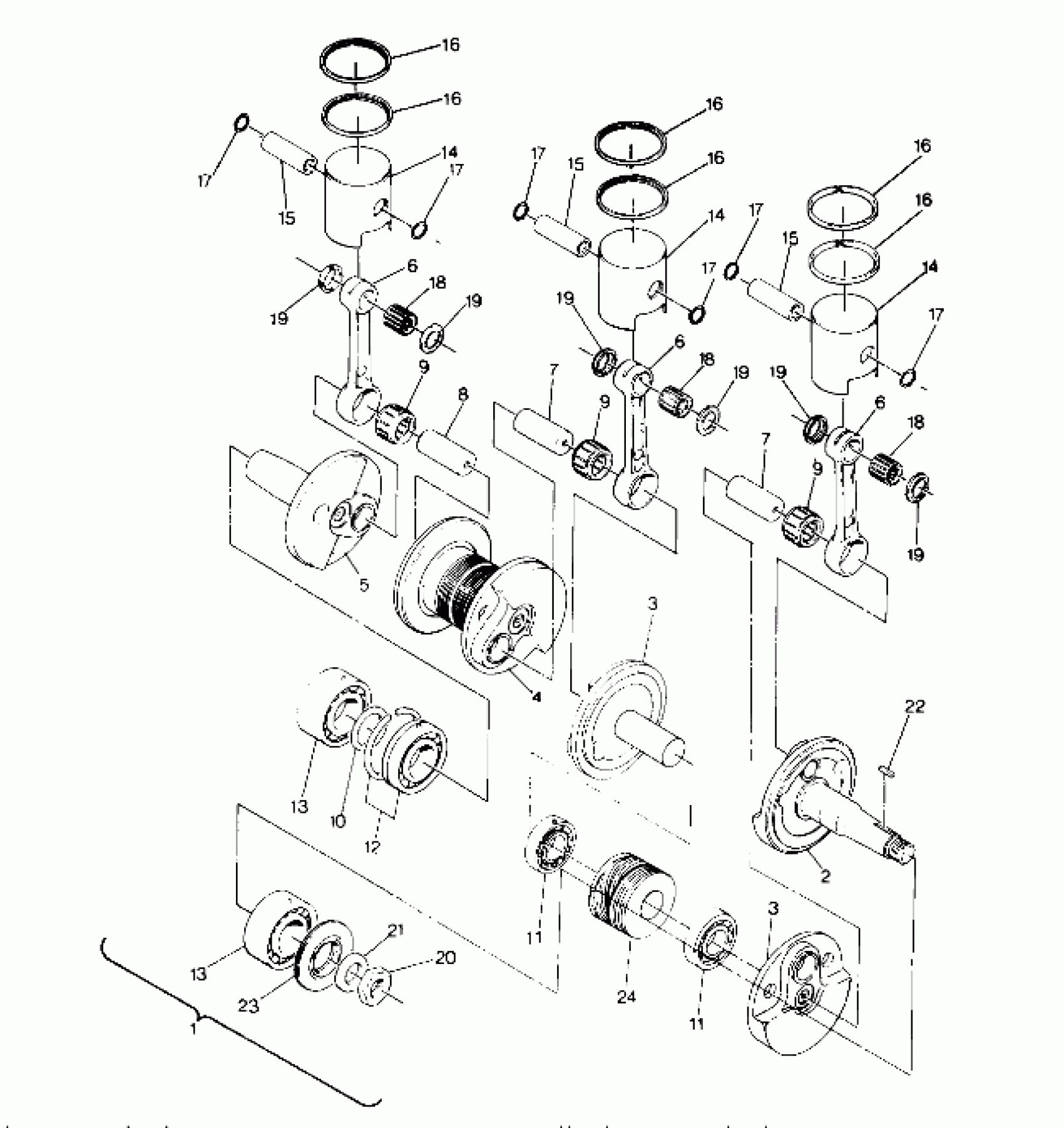

Polaris 650 RXL - 0900768 Piston And Crankshaft (4918391839025A) Diagram
#
1
CRANKSHAFT ASM. Substituted by 3084377 (Incl. 2-13,24)
3083476
$1,104.99
2
CRANKSHAFT 1 MAG. END
3083342
Unavailable
3
CRANKSHAFT,MAG SIDE (Incl. 7)
3083478
$314.22
3
CRANKSHAFT,MAG SIDE (Incl. 7)
3083478
$314.22
4
CRANKSHAFT,PTO SIDE (Incl. 7)
3083479
$1,104.99
5
CRANKSHAFT,PTO END
3083346
Unavailable
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
7
PIN-CRANK 1
3083253
$12.81
7
PIN-CRANK 1
3083253
$12.81
8
PIN-CRANK 2
3083254
Unavailable
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
10
Spacer
3083399
$1.49
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
12
BEARING Substituted by 3083714
3083457
Unavailable
13
BEARING,BALL Substituted by 3084378
3083002
Unavailable
13
BEARING,BALL Substituted by 3084378
3083002
Unavailable
14
PISTON,.010 O/S Substituted by 3084246 (Incl. 17)
3083875
Unavailable
14
PISTON,.020 O/S Substituted by 3084247 (Incl. 17)
3083876
Unavailable
14
PISTON Substituted by 3084245 (Incl. 2-13, 24)
3083857
$142.84
14
PISTON,.010 O/S Substituted by 3084246 (Incl. 17)
3083875
Unavailable
14
PISTON,.020 O/S Substituted by 3084247 (Incl. 17)
3083876
Unavailable
14
PISTON Substituted by 3084245 (Incl. 2-13, 24)
3083857
$142.84
14
PISTON,.010 O/S Substituted by 3084246 (Incl. 17)
3083875
Unavailable
14
PISTON,.020 O/S Substituted by 3084247 (Incl. 17)
3083876
Unavailable
14
PISTON Substituted by 3084245 (Incl. 2-13, 24)
3083857
$142.84
15
PIN, PISTON
3083858
$23.99
15
PIN, PISTON
3083858
$23.99
15
PIN, PISTON
3083858
$23.99
16
RING,.020 O/S (.020 Over)
3083874
Unavailable
16
RING,.010 O/S (.010 Over)
3083873
$47.39
16
RING, PISTON (Standard)
3083859
Unavailable
16
RING,.020 O/S (.020 Over)
3083874
Unavailable
16
RING,.010 O/S (.010 Over)
3083873
$47.39
16
RING, PISTON (Standard)
3083859
Unavailable
16
RING,.020 O/S (.020 Over)
3083874
Unavailable
16
RING,.010 O/S (.010 Over)
3083873
$47.39
16
RING, PISTON (Standard)
3083859
Unavailable
16
RING,.020 O/S (.020 Over)
3083874
Unavailable
16
RING,.010 O/S (.010 Over)
3083873
$47.39
16
RING, PISTON (Standard)
3083859
Unavailable
16
RING,.020 O/S (.020 Over)
3083874
Unavailable
16
RING,.010 O/S (.010 Over)
3083873
$47.39
16
RING, PISTON (Standard)
3083859
Unavailable
16
RING,.020 O/S (.020 Over)
3083874
Unavailable
16
RING,.010 O/S (.010 Over)
3083873
$47.39
16
RING, PISTON (Standard)
3083859
Unavailable
17
CLIP,PISTON PIN,(10)
3083839
$4.75
17
CLIP,PISTON PIN,(10)
3083839
$4.75
17
CLIP,PISTON PIN,(10)
3083839
$4.75
17
CLIP,PISTON PIN,(10)
3083839
$4.75
17
CLIP,PISTON PIN,(10)
3083839
$4.75
17
CLIP,PISTON PIN,(10)
3083839
$4.75
18
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
18
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
18
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
19
SPACER Substituted by 3083860
3083401
Unavailable
19
SPACER Substituted by 3083860
3083401
Unavailable
19
SPACER Substituted by 3083860
3083401
Unavailable
19
SPACER Substituted by 3083860
3083401
Unavailable
19
SPACER Substituted by 3083860
3083401
Unavailable
19
SPACER Substituted by 3083860
3083401
Unavailable
20
NUT
3083047
Unavailable
21
WASHER Substituted by 3083048
3082805
Unavailable
22
KEY Substituted by 3081447
3080364
Unavailable
23
OIL SEAL Substituted by 3083045
3082709
$36.41
24
GEAR,OIL PUMP
3083781
Unavailable
