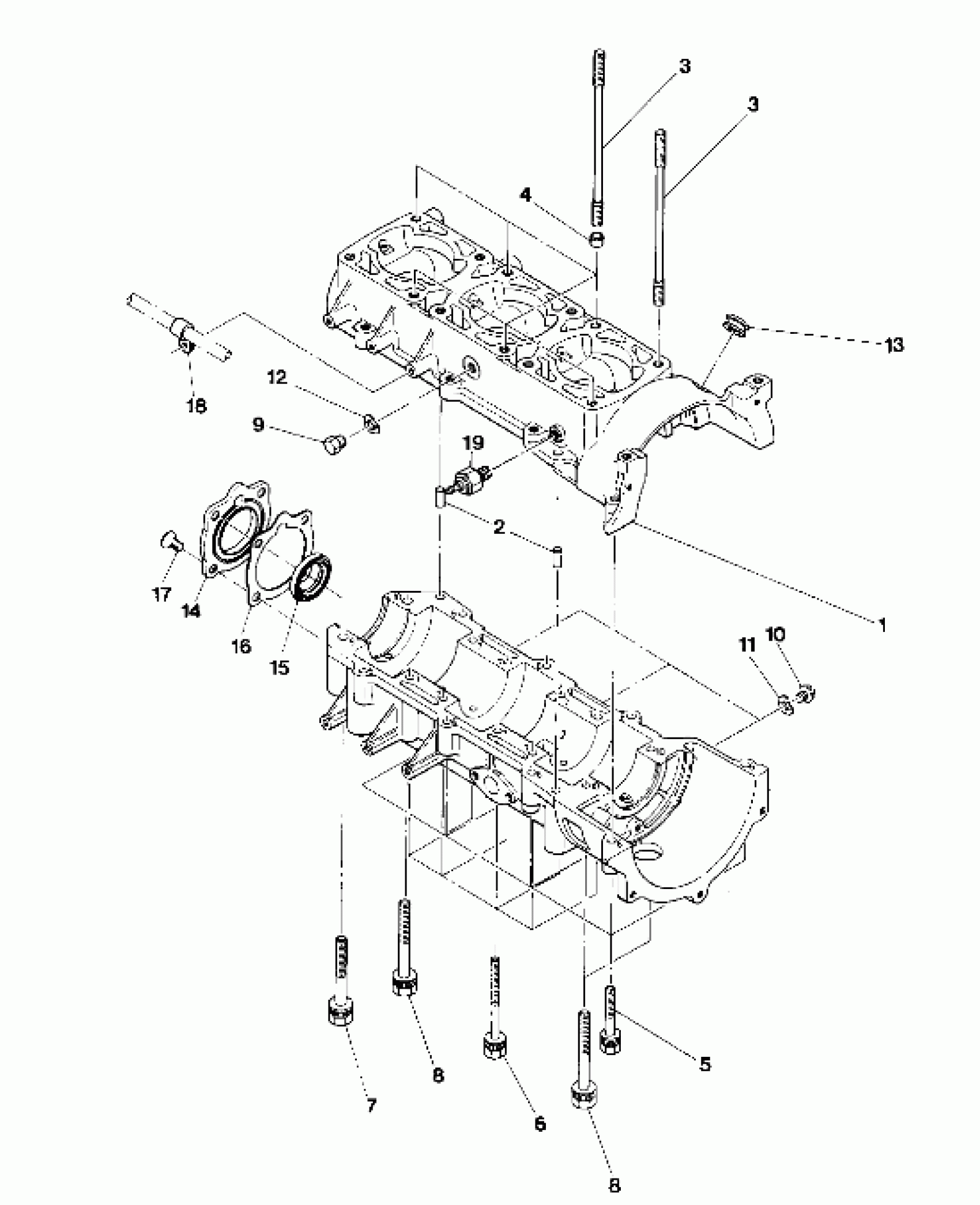

Polaris 650 RXL - 0900768 Crankcase (4918391839023A) Diagram

#

Description

Price

1

CRANKCASE (Incl. 2, 5-8)

3084038

Unavailable

2

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

3

STUD

3083785

Unavailable

3

STUD

3083785

Unavailable

4

SPACER

3083786

Unavailable

5

BOLT AND WASHER ASSY.

3082097

Unavailable

6

BOLT-WASHER

3082923

$6.19

7

BOLT & WASHER

3082925

Unavailable

8

BOLT-WASHER

3082924

Unavailable

8

BOLT-WASHER

3082924

Unavailable

9

PLUG

3082926

$3.51

10

PLUG Substituted by 3084491

3083044

Unavailable

11

WASHER,WAVE(10)

3083027

Unavailable

12

WASHER WAVE

3081634

Unavailable

13

GROMMET Substituted by 3082875

3082862

Unavailable

14

COVER, CRANKCASE

3083390

Unavailable

14

COVER,CRANKCASE * Substituted by 3083390 (Incl. 15)

3083389

Unavailable

15

SEAL, OIL(10)

3083331

Unavailable

16

GASKET (Case Cover)

3083473

$1.49

17

SCREW, COUNTER SUNK

3083333

Unavailable

18

CLAMP

3083391

$6.23

19

SENSOR,CASE TEMP.

3084039

Unavailable
