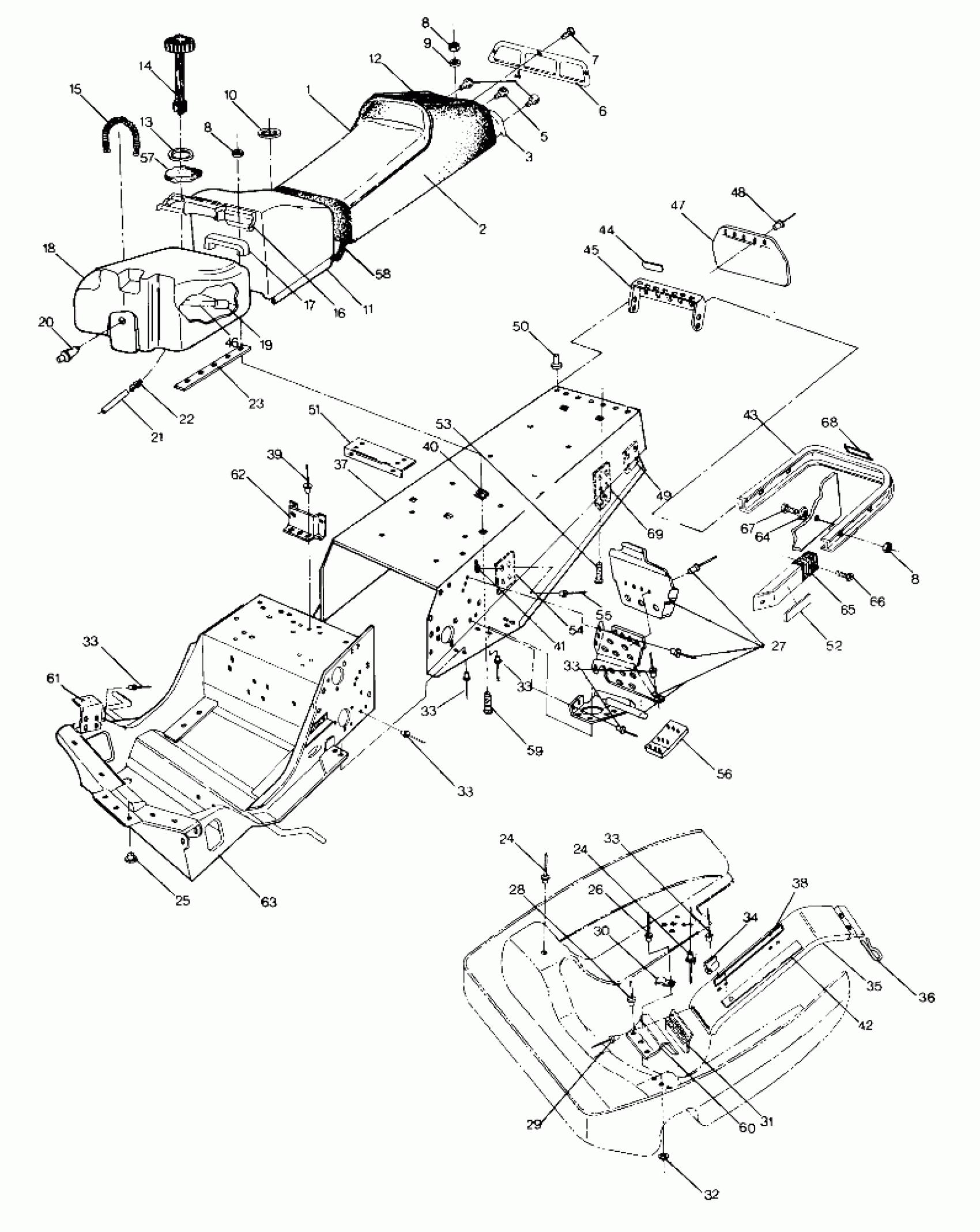

Polaris 650 RXL - 0900768 Chassis And Seat (4918391839001A) Diagram
#
1
CUSHION,SEAT,'88(650) (2-7, 12, 54)
2681329
Unavailable
2
COVER,SEAT Substituted by 2200738
2681330
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET-GAS TANK
5430575
Unavailable
11
COVER,TANK,(650 SPEC) [No Longer Available]
2681474
Unavailable
12
BUCKLE&STRAP
2681290
$4.78
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK ASM,GAS
2511191
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
23
PAD-GAS TANK
5810063
$4.95
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG-HOLE
7080398
$4.84
26
BLIND RIVET(50)
7621403
$1.49
27
FOOTREST,LH,(650)
2200303
Unavailable
27
FOOTREST ASM. [No Longer Available]
2200339
Unavailable
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE
5210728
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
34
CLIP, BELT Substituted by 5222769
5220817
Unavailable
35
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
37
TUNNEL, (650)
1011665-21
Unavailable
38
DECAL,CLUTCH,POLARIS [No Longer Available]
7072558
Unavailable
40
SPEED NUT(10)
7670021
$6.99
41
SNAP-MALE(10)
7080227
Unavailable
42
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
43
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
44
DECAL,TRACK,SILVER [No Longer Available]
7072873
Unavailable
45
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
46
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
47
FLAP,SNOW(RED&BLACK) Substituted by 5410394-1117
5410577
$121.02
48
POP RIVET(50)
7621418
$1.49
49
WEARPLATE,TUNNEL
5222061
Unavailable
50
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
51
BRKT, TOOL BOX
5220973
Unavailable
52
REFLECTOR RED
2670070
$9.91
53
BOLT(10)
7512103
$3.19
54
BRKT. Substituted by 5220542-067
5220542
Unavailable
55
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
56
PLATE,TUNNEL,LH
5220634
Unavailable
56
PLATE,TUNNEL,RH
5220635
Unavailable
57
FOAM, FILLER
5810201
Unavailable
58
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
59
BOLT(10)
7512193
$2.39
60
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
61
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
62
BRACKET Substituted by 5221932-067
5221932
Unavailable
63
BULKHEAD
1011796
Unavailable
64
WASHER(10)
7558301
$1.49
65
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
66
SCREW(10)
7511863
$1.99
67
BOLT(10)
7512240
$3.99
68
DECAL,36'',R.BUMP [No Longer Available]
7072582
Unavailable
69
BRKT,R.SUSP,RH MTG. Substituted by 1011750-067
1011667
Unavailable
69
BRKT,R.SUSP,LH MTG. Substituted by 1011749-067
1011666
Unavailable
69
DECAL,TUNNEL STRIPE [No Longer Available]
7072776
Unavailable
