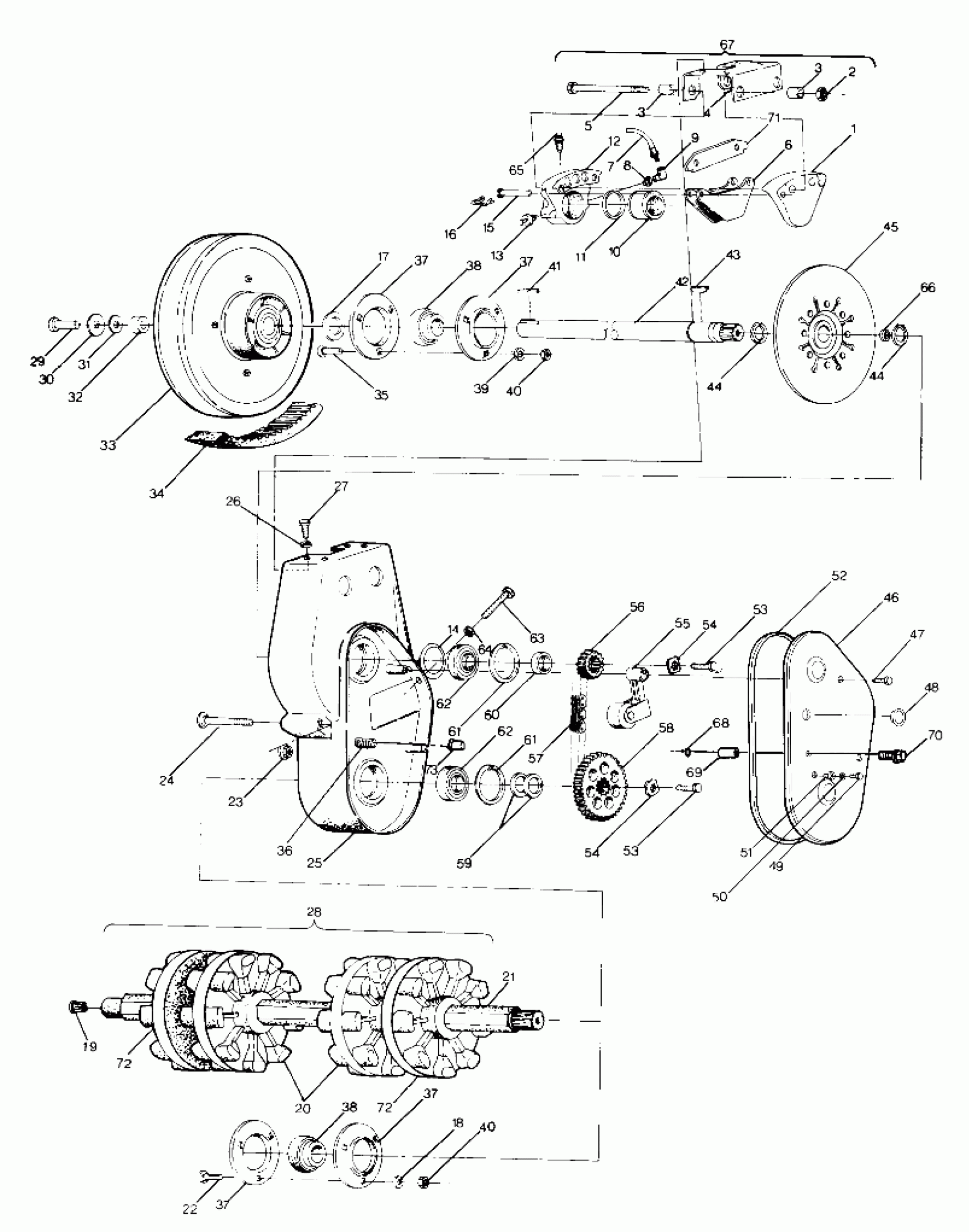

Polaris 650 RXL - 0900768 Brake And Chaincase (4918391839017A) Diagram
#
1
CASTING-CARRIER
1930570
Unavailable
2
NUT
1930558
Unavailable
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET
5223986
Unavailable
5
BOLT-BRIDGE
1930561
Unavailable
6
PAD, BRAKE
1930569
Unavailable
7
LINE-BRAKE [No Longer Available]
5420114
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW-FEMALE
7052034
$5.19
10
PISTON
1930568
Unavailable
11
SEAL-PISTON
1930567
Unavailable
12
HOUSING, PISTON
1930589
$111.99
13
SWITCH-STOPLIGHT
4110046
Unavailable
14
O-RING,CHAINCASE
5410401
Unavailable
15
PIN,PAD RETAINING
1930563
Unavailable
16
CLIP-SPRING
1930562
Unavailable
17
WASHER SPECIAL(10)
7556509
Unavailable
18
WASHER(10)
7555725
Unavailable
19
BUSHING METAL SPEEDO
3280019
$11.99
20
SPROCKET, 9T
5430571
Unavailable
21
DRIVE SHAFT
5020388
Unavailable
22
BOLT(10)
7512331
$3.99
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
CHAINCASE Substituted by 1332124
5130739
$261.90
26
LOCK WASHER(10)
7552801
$1.59
27
BOLT(10)
7512240
$3.99
28
DRIVESHAFT ASM. (19-21)
1590218
Unavailable
29
BOLT(10)
7515301
Unavailable
30
WASHER FLAT(10)
7555701
$3.99
31
WASHER(10)
7555734
Unavailable
32
SPACER
5020291
Unavailable
33
Driven Clutch Asm.
-------
Unavailable
34
BELT DRIVE(5)
3211042
$109.99
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
BOLT(10)
7515477
$34.99
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
38
BEARING
3514501
Unavailable
38
BEARING
3514501
Unavailable
39
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
KEY-SQUARE(10)
7721204
$3.19
42
SHAFT, INPUT,BLK. Substituted by 5020323-067
5020323
Unavailable
43
KEY,(10)
7727003
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
45
DISC BRAKE ASM
1332091
Unavailable
46
COVER CHAINCASE Substituted by 5222579
5223775
Unavailable
47
BOLT(10)
7512246
Unavailable
48
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
49
SCREW(10)
7511909
$3.99
50
WASHER, FLAT(10)
7558201
$5.79
51
NUT-WELL(10)
7541918
Unavailable
52
GASKET-CHAINCASE
5410277
$24.99
53
BOLT(10)
7512325
$2.39
53
BOLT(10)
7512325
$2.39
54
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
54
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 21 T
3221035
Unavailable
57
CHAIN 64 PITCH
3224023
Unavailable
58
SPROCKET 35 T
3222036
$53.59
60
SPACER Substituted by 5010270
5010128
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
BEARING
3514303
$11.99
62
BEARING
3514303
$11.99
63
SCREW(10)
7512470
Unavailable
64
NUT(10)
7542404
$1.59
65
SCREW-BLEEDER
1930564
Unavailable
66
SPACER,DISK BRAKE
5020430
Unavailable
67
CALIPER ASM, BRAKE (Incl. 1-6,10-12)
1930556
Unavailable
68
O RING
5410565
Unavailable
69
STAND-OFF,C/C COVER
5333033
Unavailable
70
BOLT, S.S.(10)
7512293
Unavailable
71
SPACER
5210999
Unavailable
72
SPROCKET, HALF,9T
5430993
Unavailable
72
SPROCKET, HALF,9T
5430993
Unavailable
