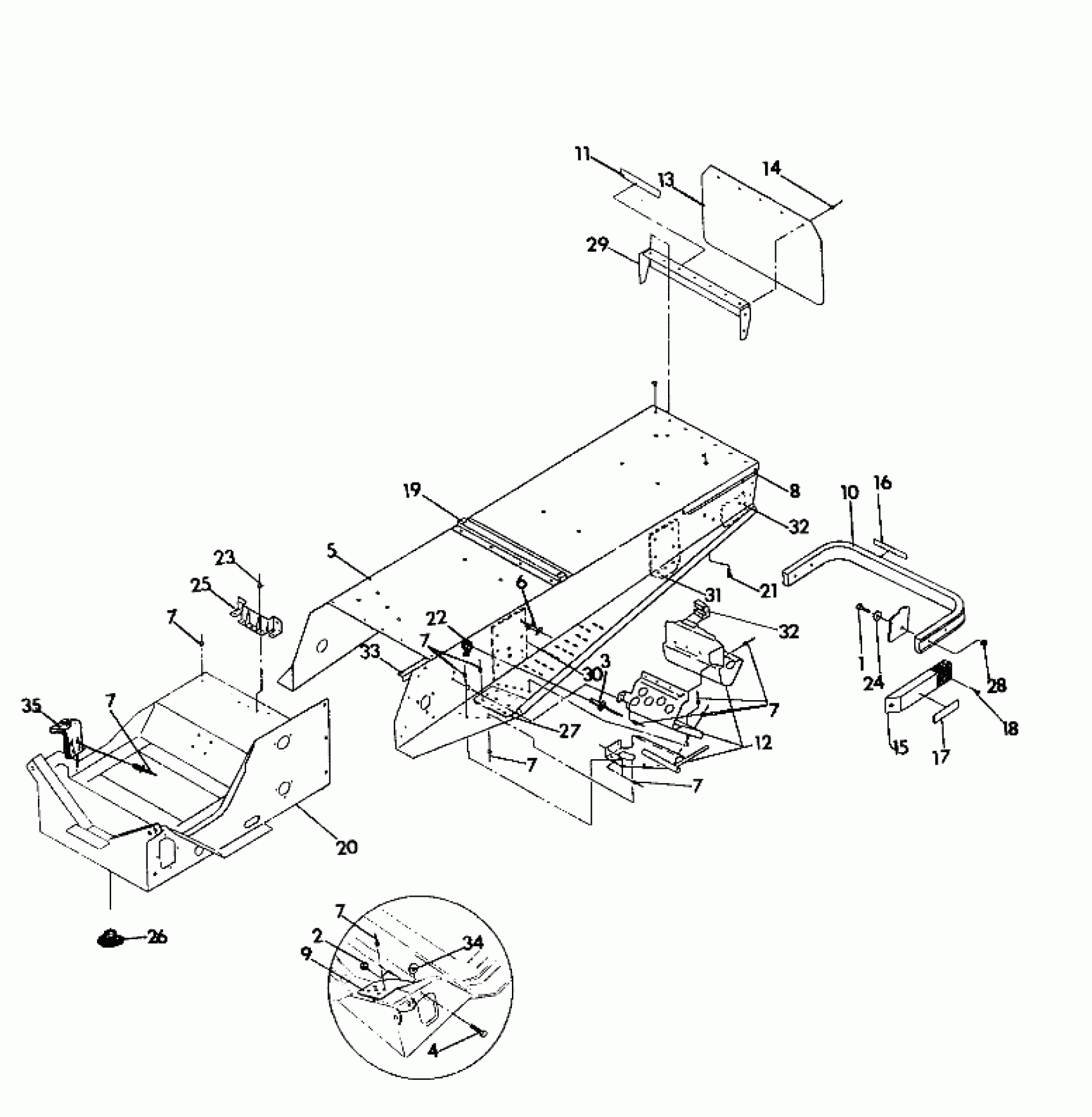

Polaris 650 - 0920758 TUNNEL ASSEMBLY 650 (4921312131001A) Diagram
#
1
BOLT(10)
7512240
$3.99
2
NUT LOCK(10)
7542321
$1.49
3
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
4
BOLT(10)
7515307
$3.99
5
TUNNEL,(LIQ.BLK-91)
1011809
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
DECAL,RH TUNNEL'650' [No Longer Available]
7073270
Unavailable
8
DECAL,LH TUNNEL'650' [No Longer Available]
7073269
Unavailable
9
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
9
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
10
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
11
DECAL,TRACK/SEAT,SILVER [No Longer Available]
7073123
Unavailable
12
FOOTREST,LH,(650)
2200303
Unavailable
12
KIT,FOOTREST,RH(BLK)
2200349
Unavailable
14
POP RIVET(50)
7621418
$1.49
15
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
16
DECAL,(24'')R.BUMP'650' [No Longer Available]
7073268
Unavailable
17
REFLECTOR RED
2670070
$9.91
18
SCREW(10)
7511863
$1.99
19
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
20
BULKHEAD,(600/650)
1011614
Unavailable
21
BOLT(10)
7512103
$3.19
22
SNAP-MALE(10)
7080227
Unavailable
23
RIVET(50)
7621301
$3.99
24
WASHER(10)
7558301
$1.49
25
BRKT,GASTANK,WELD.
1011733-067
$19.73
26
PLUG, HOLE(10)
7080416
$5.65
27
PLATE,TUNNEL,LH
5220634
Unavailable
27
PLATE,TUNNEL,RH
5220635
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
29
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
30
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
31
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
31
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
32
EXTRUSION,CLUTCHGUARD
5521238
$6.46
32
EXTRUSION,CLUTCHGUARD
5521238
$6.46
33
BRACE,TUNNEL REINF.
5222412
Unavailable
34
WASHER FLAT(10) (L.H. Only)
7555701
$3.99
35
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
