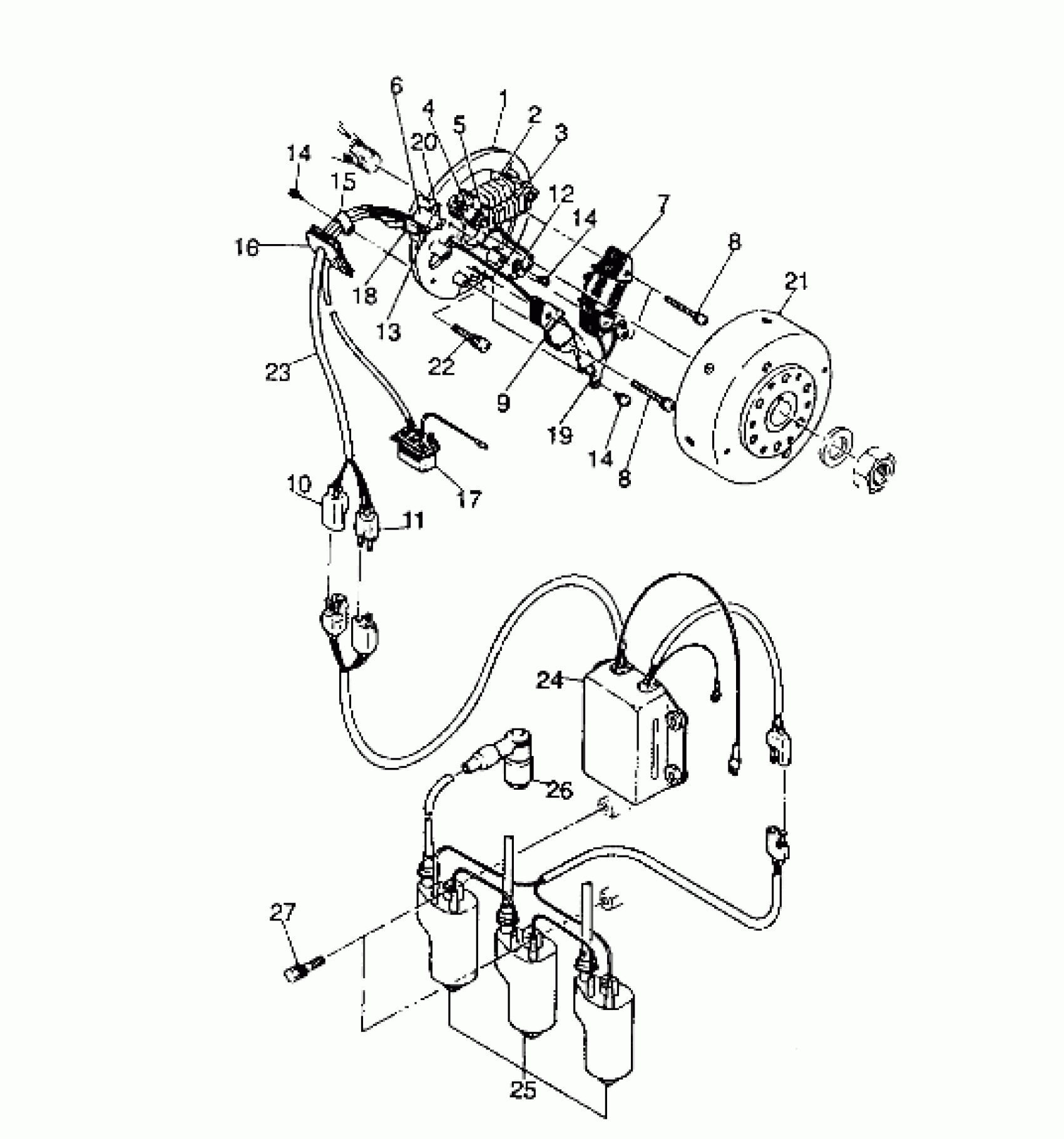

Polaris 650 - 0920758 MAGNETO 650 (4921312131043A) Diagram
#
Description
Price
1
PLATE ASM. (Incl. 1-20)
3084253
Unavailable
2
COIL, EXCITING
3084091
Unavailable
3
COIL, PULSATING
3084092
Unavailable
4
COLLAR
3082961
Unavailable
5
SCREW-WASHER ASM(10)
3082962
Unavailable
6
COIL, PULSER
3084093
Unavailable
7
COIL.LAMP,'A'
3084233
$61.90
7
COIL, LAMP
3084232
Unavailable
8
SCREW & WASHER
3081588
Unavailable
8
SCREW & WASHER
3081588
Unavailable
9
COIL,LAMP,'B'
3084234
Unavailable
10
COUPLER-3P
3083150
$10.63
11
COUPLER
3083909
$23.99
12
CLAMP
3081259
Unavailable
13
SCREW & WASHER ASM.
3084096
Unavailable
14
SCREW&WASHER,(10)
3081260
$3.19
14
SCREW&WASHER,(10)
3081260
$3.19
14
SCREW&WASHER,(10)
3081260
$3.19
15
Clamp
3081146
$1.49
16
Grommet
3082969
Unavailable
17
COUPLER,MALE
3081513
$19.99
18
BAND
3084097
Unavailable
19
CLAMP
3084098
Unavailable
20
Band
3084099
Unavailable
21
FLYWHEEL
3084235
Unavailable
22
BOLT&WASHER ASM.
3083866
Unavailable
23
HARNESS, WIRE
3084236
Unavailable
24
CDI SYSTEM
3084237
Unavailable
25
COIL, IGNITION Substituted by 3085212
3084103
Unavailable
26
CAP SPARK PLUG,(10)
4020129
$9.70
27
SCREW & WASHER ASM.
3083867
Unavailable
