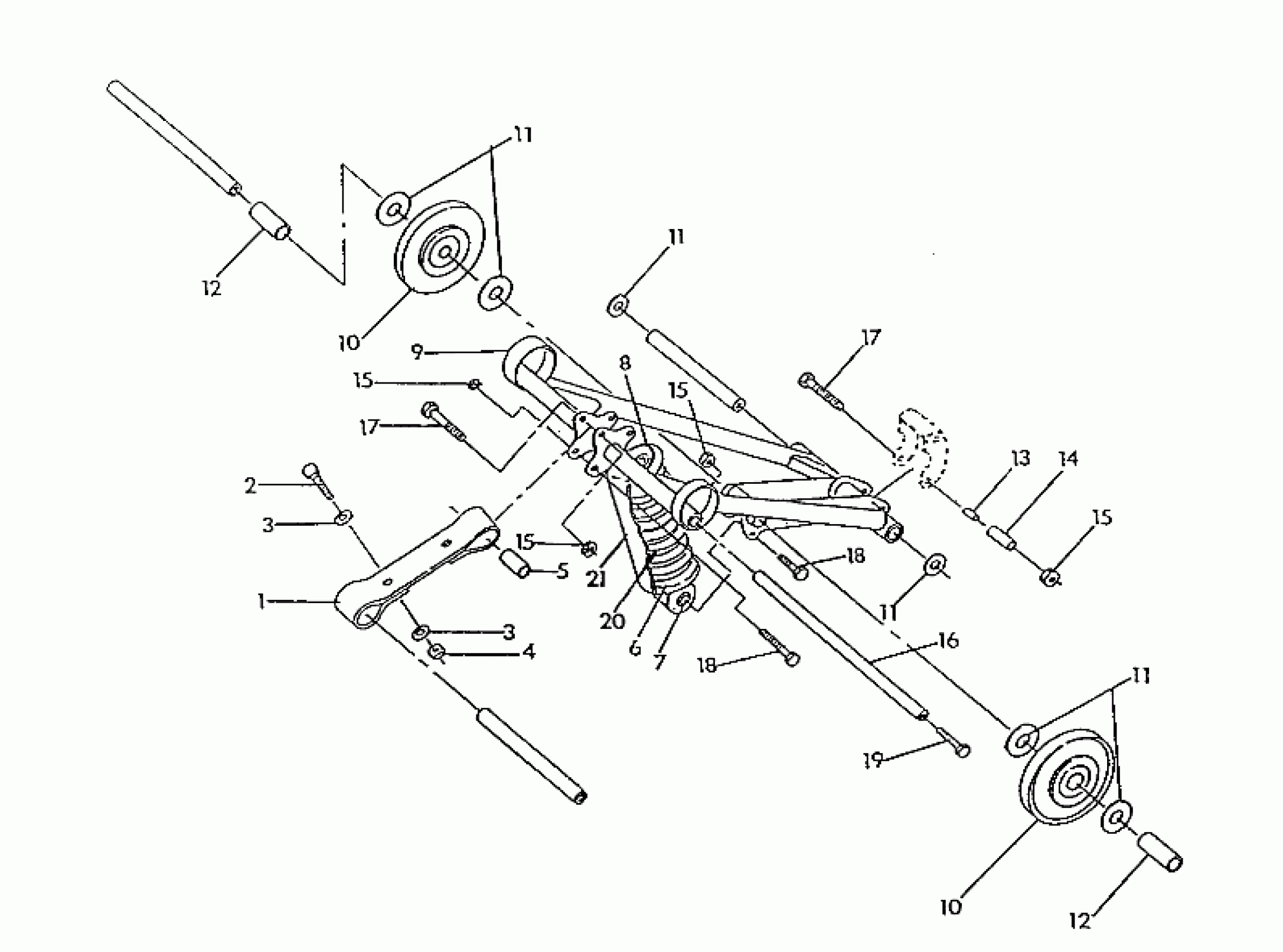

Polaris 650 - 0920758 FRONT TORQUE ARM 650 (4921312131025A) Diagram
#
Description
Price
1
STRAP, LIMITER
5410397
Unavailable
2
BOLT(10)
7515307
$3.99
3
WASHER(10)
7555716
$1.59
3
WASHER(10)
7555716
$1.59
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
BUSHING,SUSPENSION
5010212
Unavailable
6
SPACER,SHOCK RETAINER(10)
5210953
$6.39
7
SHOCK-SUSP
7041142
Unavailable
8
RETAINER-TOP
5220225
$10.39
9
ARM,FRONT TORQUE
1540667-067
Unavailable
10
WHEEL,BOGIE
1543020
Unavailable
10
WHEEL,BOGIE
1543020
Unavailable
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
13
BUSHING,PIVOT TUBE
5020561
$1.59
14
Spacer
5333028
$1.59
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
16
SHAFT,MOUNTING
5010149
Unavailable
17
BOLT(10)
7515415
$1.49
17
BOLT(10)
7515415
$1.49
18
BOLT(10)
7515438
$4.79
18
BOLT(10)
7515438
$4.79
19
BOLT(10)
7515432
Unavailable
20
SPRING-SHOCK
7041127
Unavailable
21
SHIELD-SPRING
5430671
$24.27
