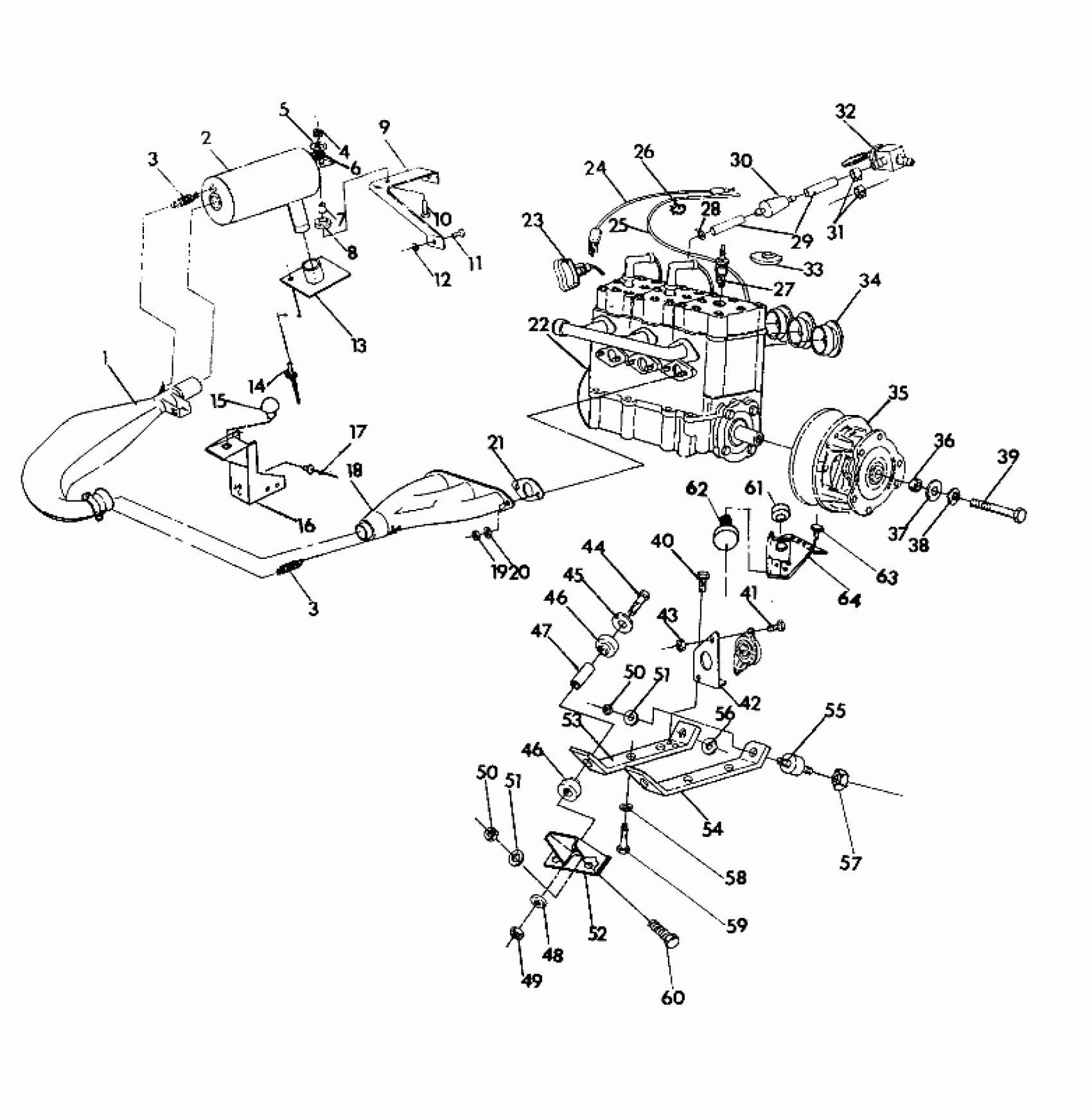

Polaris 650 - 0920758 ENGINE MOUNTING 650 (4921312131029A) Diagram
#
1
MUFFLER WELD.
1260545
Unavailable
2
RESONATOR [No Longer Available]
1260550
Unavailable
3
SPRING, EXHAUST(10)
7042031
$5.65
3
SPRING, EXHAUST(10)
7042031
$5.65
4
NUT-LOCK(10)
7542122
$1.49
5
WASHER(10)
7558221
$2.39
6
WASHER,RUBBER
5410436
$1.59
7
BUSHING-RES. MT.
5010192
$6.39
8
DAMPENER
5410241
Unavailable
9
SUPPORT,R.MUFFLER,BLK.
5220695-067
Unavailable
10
BOLT-CARRIAGE(10)
7512275
$3.99
11
BOLT(10)
7512193
$2.39
13
STINGER, OUTLET
1260551-067
$9.91
14
RIVET(50)
7621431
$1.49
15
DAMPNER, VIB.
5410467
$8.79
16
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
18
MANIFOLD WELD,BLK. Substituted by 1260477-029
1260477
Unavailable
19
NUT(10)
3080285
Unavailable
20
WASHER LOCK ,(10)
3080530
$3.19
21
GASKET, EXHAUST
3083770
Unavailable
22
ENG.,EC65PL [No Longer Available]
1211478
Unavailable
23
HANDLE-RECOIL
5430520
Unavailable
24
CABLE-THROTTLE W/OIL
7080262
Unavailable
25
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
26
CLIP(10)
7080278
$2.63
27
SPARKPLUG(8)
3070165
$3.99
28
CLAMP-HOSE(10)
7080134
Unavailable
29
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
30
FILTER FUEL,(10)
2530008
$4.84
31
CLAMP-HOSE,(10)
7080236
$1.59
32
VALVE,FUEL SHUT-OFF
7052039
Unavailable
33
CAP, PRESSURE
2511155
Unavailable
34
Boot
5410271
Unavailable
35
CLUTCH, DRIVE Substituted by 1321578
1321546
Unavailable
36
BUSHING-.437 X.770 X.50
5430261
$7.19
37
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
38
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
39
BOLT(10)
7512565
$19.99
40
BOLT(10)
7512232
$1.49
41
BOLT(10)
7512240
$3.99
42
MOUNT,FUEL PUMP
1253106-067
Unavailable
44
SCREW(10)
7512533
$1.75
45
WASHER(10)
7555740
$1.59
46
MOUNT, ENGINE
5410390
Unavailable
46
MOUNT, ENGINE
5410390
Unavailable
47
SPACER, (MTR.MT.)
5332778
Unavailable
48
WASHER(10)
7555801
$3.99
49
NUT FLANGED LOC,(10)
7542508
Unavailable
50
NUT-LOCK(10)
7542439
$1.49
50
NUT-LOCK(10)
7542439
$1.49
51
WASHER(10) Substituted by 7555806
7555720
$0.79
51
WASHER(10) Substituted by 7555806
7555720
$0.79
52
MOUNT, FRONT
1011502-067
Unavailable
53
PLATE,ENG.,RH
5220705
$38.41
54
PLATE,ENG.,LH
5220704
Unavailable
55
MOUNT
3110022
Unavailable
56
WASHER(10)
7555721
$1.49
57
NUT LOCK(10)
7542411
$3.19
58
WASHER LOCK(10)
7553101
$3.99
59
BOLT(10)
7512539
$3.99
60
BOLT(10)
7512457
$3.99
61
NUT, JAM(10)
7542432
$3.99
62
BRACKET,TORQUE LIMITER Substituted by 1012048-067
1011741-067
$38.71
63
RIVET Substituted by 7661638
7661625
$1.19
64
STOP
3110023
Unavailable
