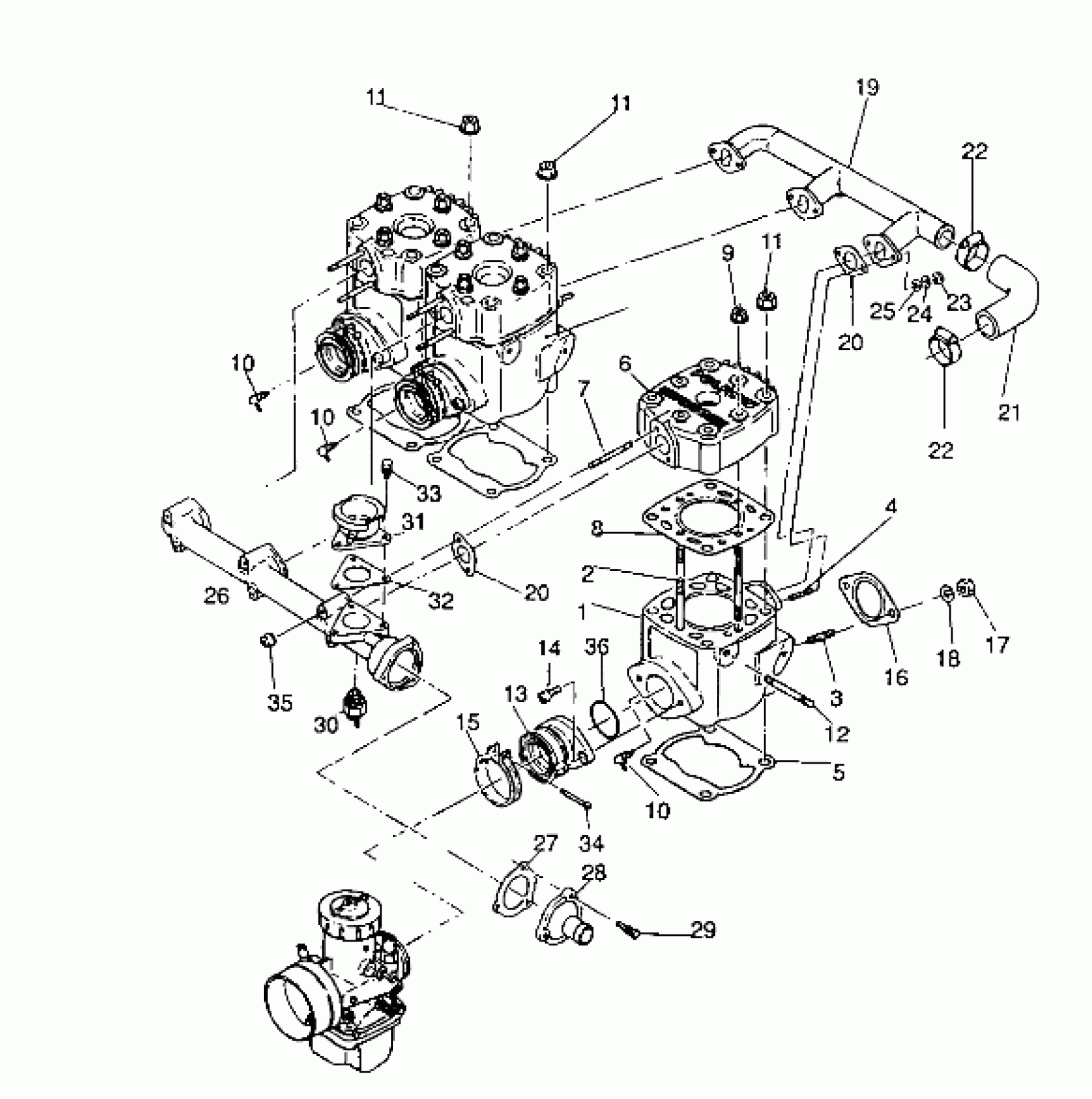

Polaris 650 - 0920758 CYLINDER 650 (4921312131036A) Diagram
#
Description
Price
1
CYLINDER (Incl. 1-4,10)
3084320
Unavailable
2
STUD
3083392
Unavailable
3
STUD (10)
3080016
$5.75
4
STUD
3082931
Unavailable
5
GASKET, CYLINDER Substituted by 3084614
3084041
$21.27
6
HEAD, CYLINDER
3084042
$444.99
7
Stud
3082934
$10.39
8
GASKET, HEAD
3084376
Unavailable
9
NUT-FLANGE(10)
3082910
$2.39
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
11
NUT-FLANGE(10)
3082911
$1.99
11
NUT-FLANGE(10)
3082911
$1.99
11
NUT-FLANGE(10)
3082911
$1.99
12
STUD
3083360
Unavailable
13
ADAPTER, CARB.
3084228
Unavailable
14
BOLT
3084044
Unavailable
15
BAND ASM. (Incl. Bolt)
3083166
$19.84
16
GASKET, EXHAUST,NA.
3084030
$5.92
17
NUT(10)
3080285
Unavailable
18
WASHER LOCK ,(10)
3080530
$3.19
19
MANIFOLD,WATER INLET
3083397
Unavailable
20
GASKET(10)
3082937
Unavailable
20
GASKET(10)
3082937
Unavailable
21
HOSE-MAIN
3082938
Unavailable
22
CLAMP, HOSE
3083394
Unavailable
22
CLAMP, HOSE
3083394
Unavailable
23
NUT(10)
3082939
Unavailable
24
WASHER SPRING(10)
3080077
$2.39
25
WASHER(10)
3080078
Unavailable
26
OUTLET,WATER MANIFOLD
3083853
Unavailable
27
GASKET,THERMOSTAT
3082944
Unavailable
28
COVER,CASE,THERMOSTAT
3084248
Unavailable
29
BOLT&WASHER
3083730
$4.79
30
SWITCH,THERMAL(93 DEG.C.)
3083055
Unavailable
31
NECK, FILLER
3083398
Unavailable
32
GASKET, FILLER NECK
3083340
Unavailable
33
BOLT&WASHER ASM.
3083361
Unavailable
34
SCREW Substituted by 3081497
3083086
Unavailable
35
NUT, FLANGE(10)
3083856
$2.39
36
O-RING
3084229
$7.90
