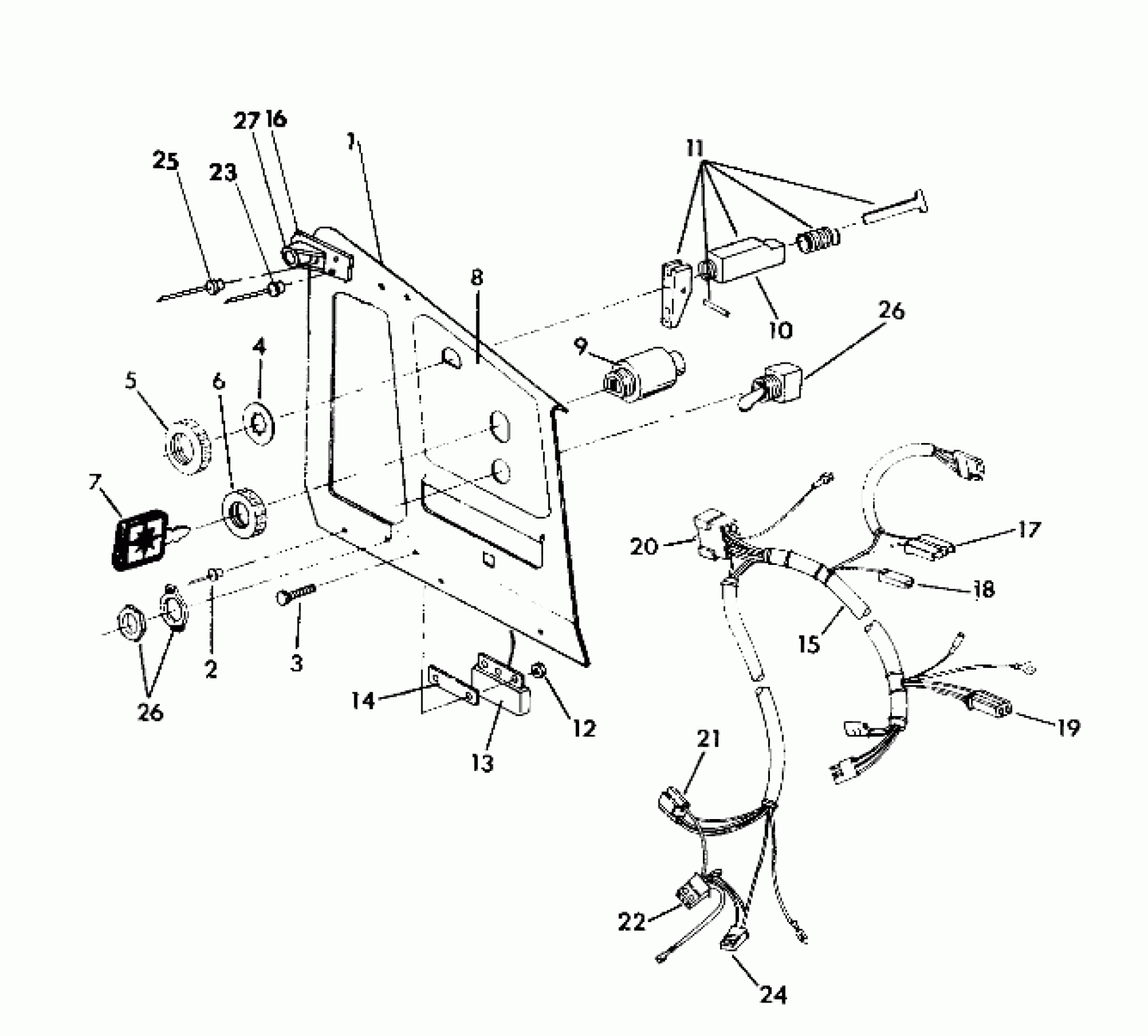

Polaris 650 - 0920758 CONSOLE 650 (4921312131033A) Diagram
#
Description
Price
1
CONSOLE
5222756-067
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
SCREW(10)
7512007
$3.99
4
WASHER-LOCK(10)
7571610
$3.99
5
Nut
7080229
$19.99
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]
5410611
Unavailable
8
DECAL, CONSOLE [No Longer Available]
7073075
Unavailable
9
SWITCH, IGN. Substituted by 2200357
4110111
Unavailable
10
CABLE, CHOKE (Incl. 5)
7080283
$109.99
11
KIT,CHOKE CONTROL
2200189
$20.22
12
NUT(10)
7541925
$1.49
13
REGULATOR, VOLTAGE
4060092
Unavailable
14
HEAT SINK
5210650
Unavailable
15
HARNESS,MAIN WIRE
2460322
$107.19
16
BRKT, ROPE GUIDE Substituted by 5222682-067
5222682
Unavailable
17
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
17
TERMINAL
4020113
Unavailable
18
CONNECTOR-TEMP.LIGHT
2200177
Unavailable
19
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Unavailable
20
HOUSING,W/RECEPTACLES
2200039
Unavailable
21
HOUSING 3 CIRCUIT W/REC
2200022
Unavailable
22
CONNECTOR, TACH.
2200094
Unavailable
23
RIVET Substituted by 7661638
7661625
$1.19
24
KIT HOUSING 2 CIRCUIT
2200095
Unavailable
25
RIVET,(50)
7621477
$1.19
26
SW,HEATER,HI-LOW
4110077
Unavailable
26
SW,HEATER,HI-LOW
4110077
Unavailable
27
GUIDE, RECOIL Note: If only the key is needed, order PN 5410611 and specify if for an A,B,C,D, or E switch. Letter code will be labelled on underside of switch body behind console.
5431385
$10.51
