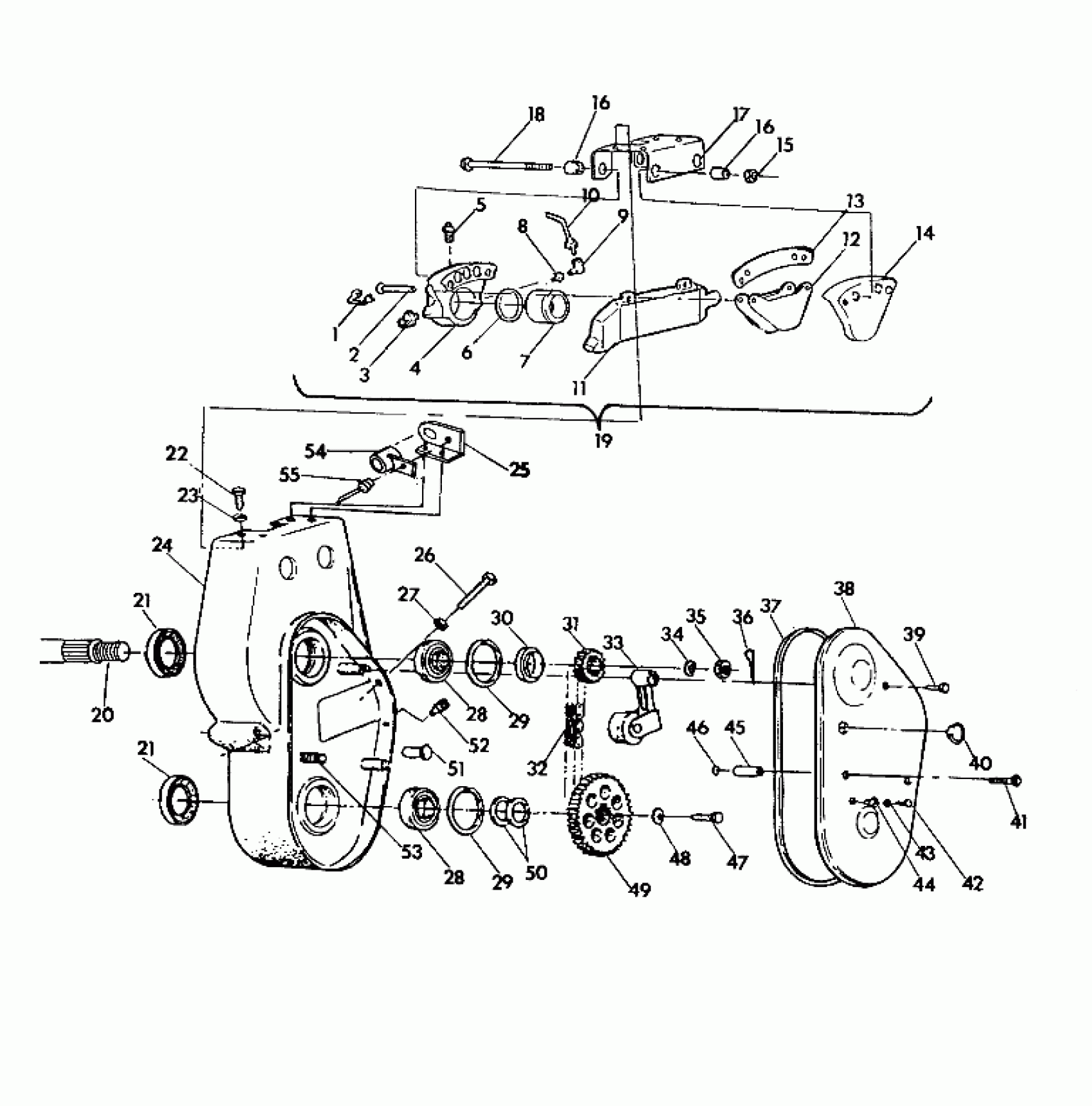

Polaris 650 - 0920758 BRAKE and CHAINCASE 650 (4921312131019A) Diagram
#
1
CLIP-SPRING
1930562
Unavailable
2
PIN,PAD RETAINING
1930563
Unavailable
3
SWITCH-STOPLIGHT
4110046
Unavailable
4
CALIPER ASM, BRAKE
1930556
Unavailable
5
SCREW-BLEEDER
1930564
Unavailable
6
SEAL-PISTON
1930567
Unavailable
7
PISTON
1930568
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW
7052058
Unavailable
10
LINE,BRAKE
1930692
Unavailable
11
COOLER-BRAKE
2511154
$53.59
12
PAD, BRAKE
1930569
Unavailable
13
SPACER
5210999
Unavailable
14
CASTING-CARRIER
1930570
Unavailable
15
NUT
1930558
Unavailable
16
BUSHING
1930559
Unavailable
16
BUSHING
1930559
Unavailable
17
BRACKET
5223986
Unavailable
18
BOLT-BRIDGE
1930561
Unavailable
19
CALIPER BRAKE UNIT (Incl. 1-17)
1930587
Unavailable
20
SHAFT, INPUT Substituted by 1332135-067
5130787
Unavailable
21
SEAL-OIL
3610030
$20.22
21
SEAL-OIL
3610030
$20.22
22
BOLT(10)
7512240
$3.99
23
WASHER, SPLIT LOCK(10)
7552804
$3.19
24
CHAINCASE
5130795
Unavailable
25
BRACKET Substituted by 5222686-067
5222686
Unavailable
26
SCREW(10)
7515511
$3.99
27
NUT(10)
7542404
$1.59
28
BEARING,CHAINCASE
3514306
Unavailable
28
BEARING,CHAINCASE
3514306
Unavailable
29
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
29
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
30
SPACER, SPROCKET
5010270
Unavailable
31
SPKT, 20T
3221053
Unavailable
32
CHAIN 64 PITCH
3224023
Unavailable
33
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
34
WASHER, SLOTTED(10)
7571620
$7.19
35
NUT, SLOTTED(10)
7542810
$3.19
36
COTTER PIN(10)
7661401
$1.49
37
GASKET-CHAINCASE
5410277
$24.99
38
COVER,CHAINCASE
5222579
Unavailable
39
BOLT(10)
7512246
Unavailable
40
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
41
BOLT, S.S.(10)
7512293
Unavailable
42
SCREW(10)
7511909
$3.99
43
WASHER, FLAT(10)
7558201
$5.79
44
NUT-WELL(10)
7541918
Unavailable
45
STAND-OFF,C/C COVER
5333033
Unavailable
46
O RING
5410565
Unavailable
47
SCREW(10)
7515350
$3.97
48
WASHER(10)
7571618
$6.39
49
SPROCKET 35 T
3222036
$53.59
50
WASHER SPECIAL(10)
7556509
$1.59
51
CAP, STUD COVER
5020569
Unavailable
52
PLUG, MAGNETIC
7051518
$12.35
53
BOLT(10)
7515477
$34.99
54
GUIDE, RECOIL
5431385
$10.51
55
RIVET,(50)
7621477
$1.19
