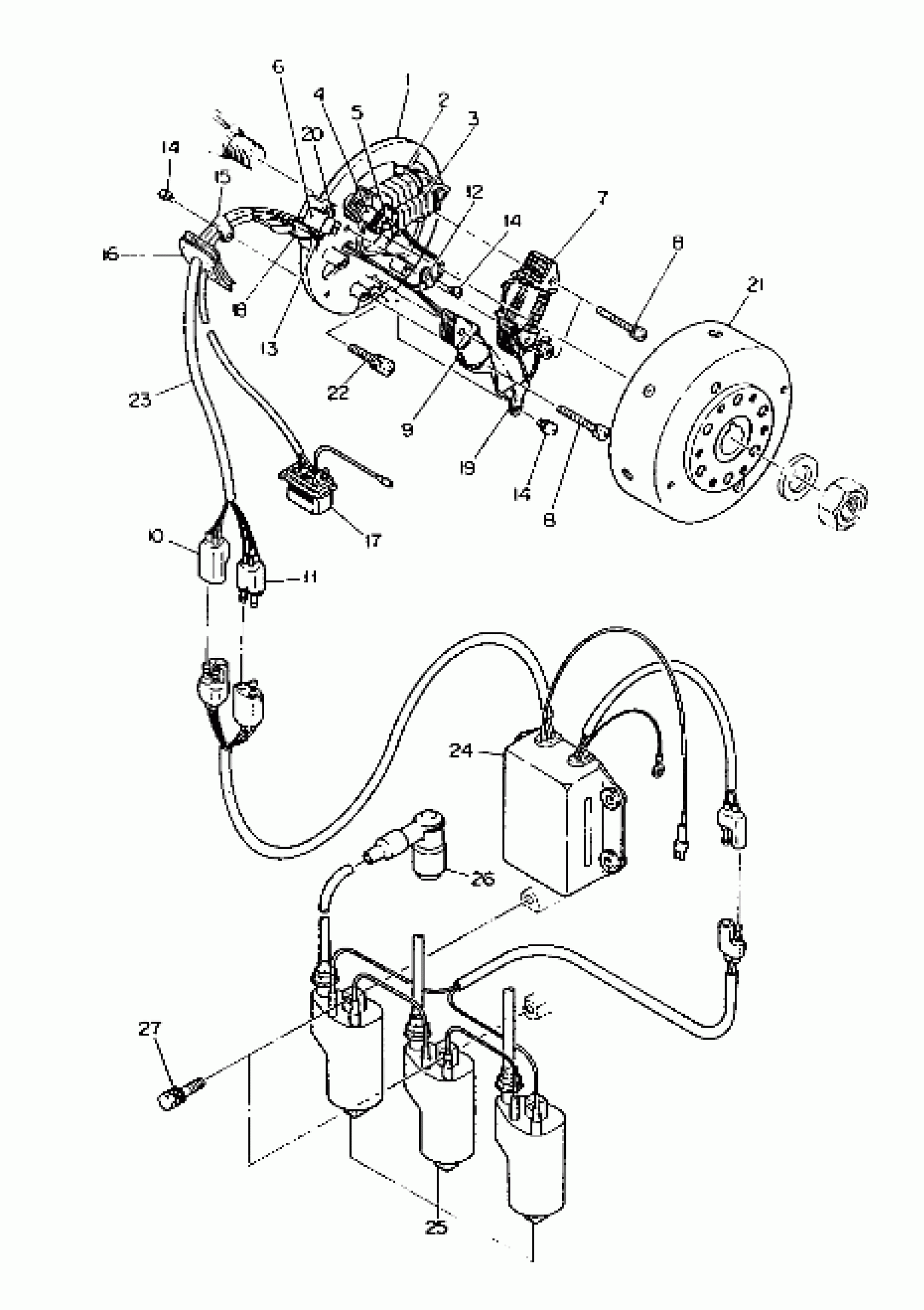

Polaris 650 - 0910758 MAGNETO 650 (4919261926026A) Diagram
#
Description
Price
1
PLATE ASM. (Incl. 1-20)
3084253
Unavailable
2
COIL, EXCITING
3084091
Unavailable
3
COIL, PULSATING
3084092
Unavailable
4
COLLAR
3082961
Unavailable
5
SCREW-WASHER ASM(10)
3082962
Unavailable
6
COIL, PULSER
3084093
Unavailable
7
COIL.LAMP,'A'
3084233
$61.90
7
COIL, LAMP
3084232
Unavailable
8
SCREW & WASHER
3081588
Unavailable
8
SCREW & WASHER
3081588
Unavailable
9
COIL,LAMP,'B'
3084234
Unavailable
10
COUPLER-3P
3083150
$10.63
11
COUPLER
3083909
$23.99
12
CLAMP
3081259
Unavailable
13
SCREW & WASHER ASM.
3084096
Unavailable
14
SCREW&WASHER,(10)
3081260
$3.19
14
SCREW&WASHER,(10)
3081260
$3.19
14
SCREW&WASHER,(10)
3081260
$3.19
15
Clamp
3081146
$1.49
16
Grommet
3082969
Unavailable
17
CONNECTOR Substituted by 3081513
3080839
Unavailable
18
BAND
3084097
Unavailable
19
CLAMP
3084098
Unavailable
20
Band
3084099
Unavailable
21
FLYWHEEL
3084235
Unavailable
22
BOLT&WASHER ASM.
3083866
Unavailable
23
HARNESS, WIRE
3084236
Unavailable
24
CDI SYSTEM
3084237
Unavailable
25
COIL, IGNITION Substituted by 3085212
3084103
Unavailable
26
CAP,SPARK PLUG Substituted by 4020129
3083155
Unavailable
27
SCREW & WASHER ASM.
3083867
Unavailable
