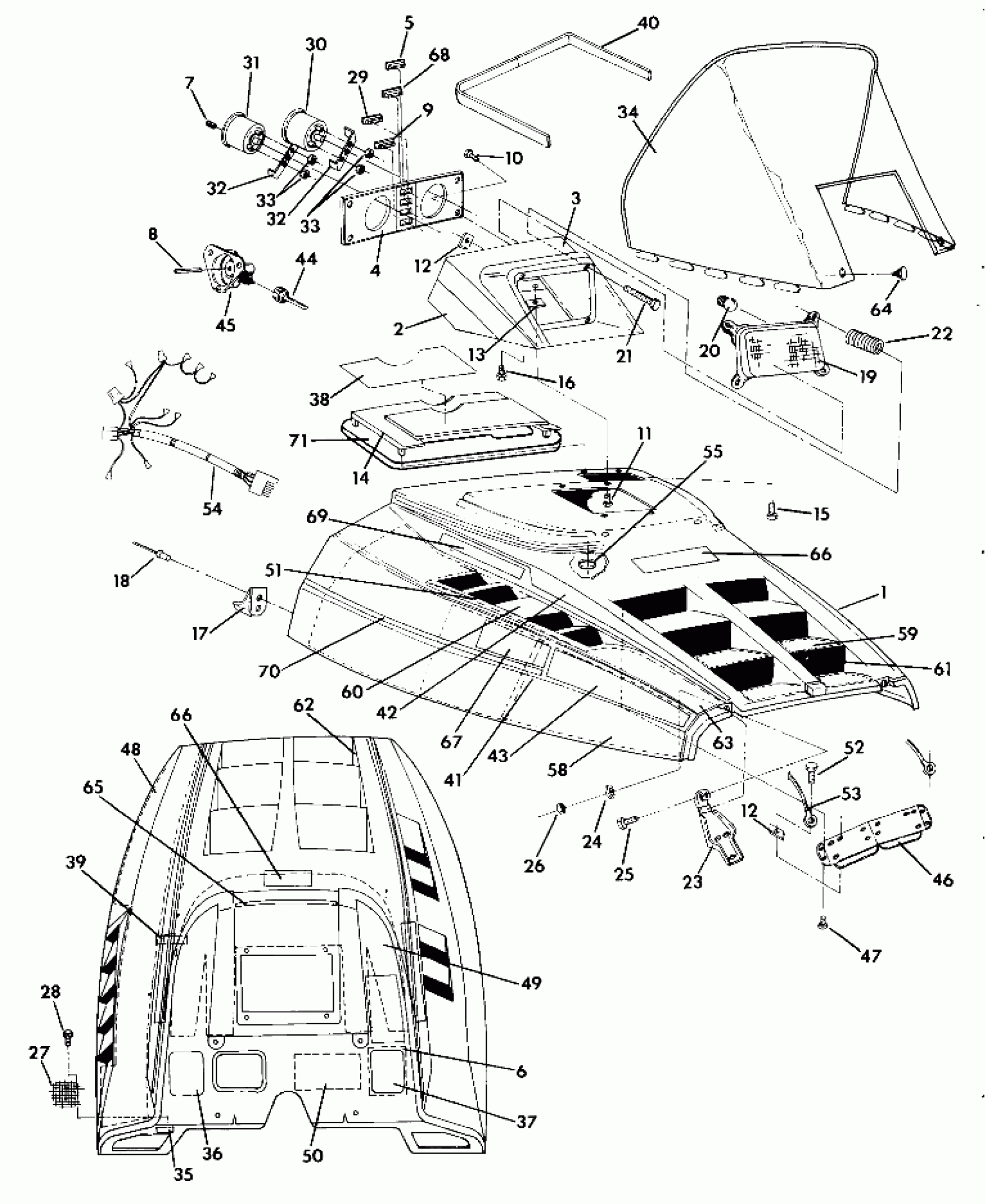

Polaris 650 - 0910758 HOOD 650 and 650 SKS (4919261926003A) Diagram
#
1
HOOD,BLACK,INDY Substituted by 2631574-070
5431194-070
Unavailable
2
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
3
HSG,INST,TOP,BLK
5430923-070
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
DECAL,SPEC,('88-'91) [No Longer Available]
7072503
Unavailable
7
KNOB,TRIP ODOMETER
3280103
$3.83
8
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
9
PLUG,INDIC.HOLE
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
PANEL,INTAKE,BLK Substituted by 2620078-070
5431195-070
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. (Incl. 32-33)
4032040
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT(10)
7512193
$2.39
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511861
Unavailable
29
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
30
SPEEDOMETER (Incl. 32-33)
3280092
$111.99
31
TACHOMETER,3 CYL. Substituted by 3280192 (Incl. 32-33)
3280096
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD(W/RED STRIPE) Substituted by 5431144
5430964
$134.99
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OPER.CAUT.ENG. [No Longer Available]
7072492
Unavailable
37
DECAL,OPER.CAUT.(FR.) [No Longer Available]
7072493
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072491
Unavailable
39
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
40
PAD,W/S,LH,BLACK
5810437
Unavailable
40
PAD,W/S,RH,BLACK
5810438
$1.67
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,LH,HD.TOP(91-650) [No Longer Available]
7072987
Unavailable
42
DECAL,RH,HD.TOP(91-650) [No Longer Available]
7072988
Unavailable
43
DECAL,LH,HD.TOP(91-650) [No Longer Available]
7072987
Unavailable
43
DECAL,RH,HD.TOP(91-650) [No Longer Available]
7072988
Unavailable
44
CABLE,SPEEDO.
3280094
$60.70
45
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HOOD RETAINER
7080368
$10.51
54
HARNESS,HEADLIGHT Substituted by 2460349
2460315
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
66
LOGO,'650' [No Longer Available]
5431240
Unavailable
66
LOGO,'650' [No Longer Available]
5431240
Unavailable
67
DECAL,'650',(91) [No Longer Available]
7072999
Unavailable
68
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
69
DECAL,L/C.TRIPE('91-650) [No Longer Available]
7072944
Unavailable
70
DECAL,LH,HD.TL.(91-650) [No Longer Available]
7072995
Unavailable
70
DECAL,RH,HD.TL.(91-650) [No Longer Available]
7072996
Unavailable
71
HOLDER-CAP
4032004
Unavailable
71
SEAL, INTAKE Substituted by 5810597
5810503
Unavailable
71
DECAL,LH,N'CONE(91-650) [No Longer Available]
7072993
Unavailable
71
DECAL,RH,HOOD(91-650) [No Longer Available]
7072994
Unavailable
