CHASSIS AND SEAT 650 and 650 SKS (4919261926001A)

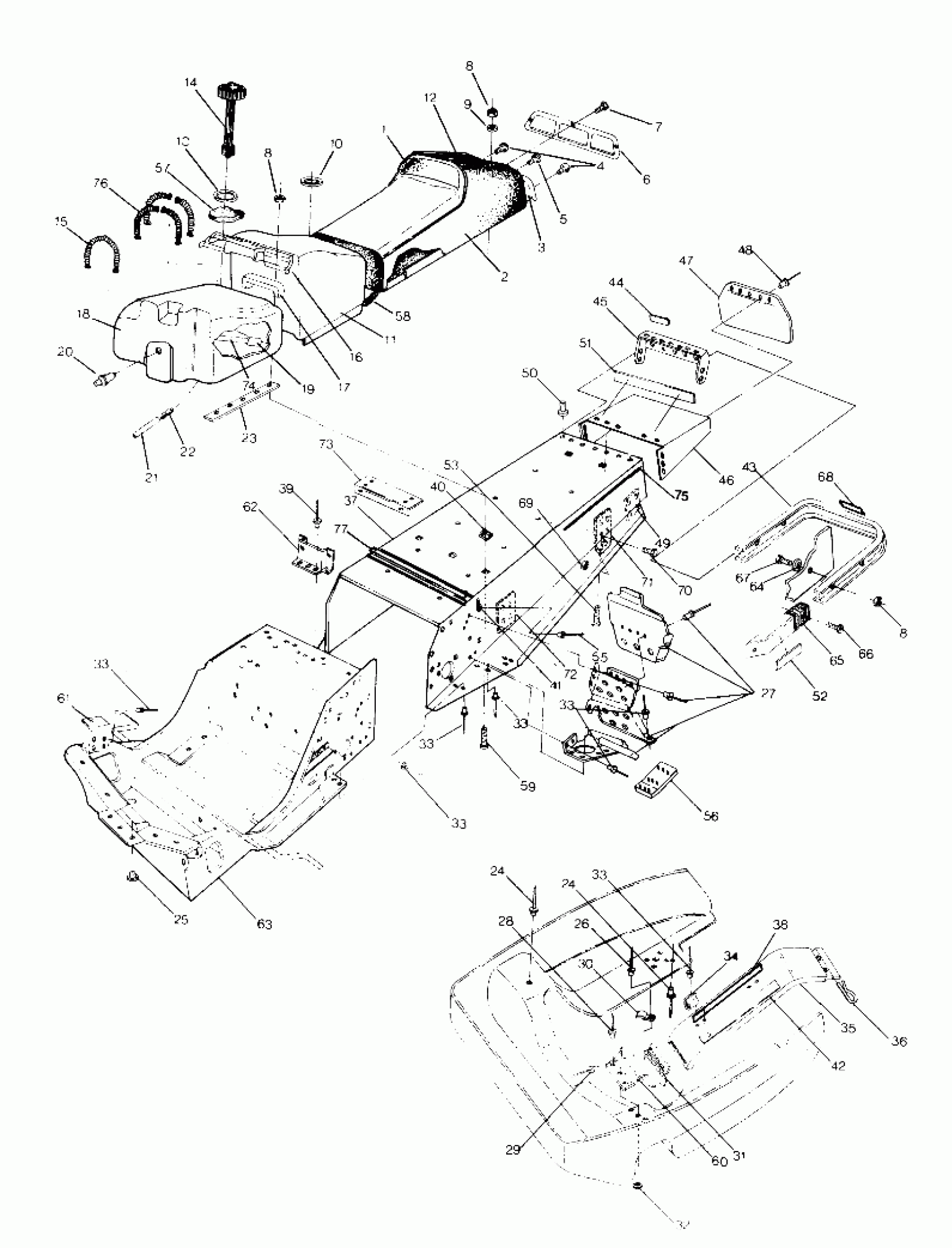

Polaris 650 - 0910758 CHASSIS AND SEAT 650 and 650 SKS (4919261926001A) Diagram
#
1
SEAT ASM,(650) Substituted by 2200751 (Incl. 2-7, 12, 54)
2681487
Unavailable
2
COVER,SEAT,(650) Substituted by 2200741
2681488
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET,GAS TANK [No Longer Available]
5431190
Unavailable
10
GROMMET,GAS TANK [No Longer Available]
5431190
Unavailable
11
COVER,TANK,(650) Substituted by 2200741
2681489
Unavailable
12
BUCKLE&STRAP
2681290
$4.78
14
CAP,GAS(HI.CAP.)
2511184
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
BRACE,TUNNEL REINF.
5222412
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK, GAS Substituted by 2511199
5431130
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
23
PAD-GAS TANK
5810063
$4.95
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG-HOLE
7080398
$4.84
26
BLIND RIVET(50)
7621403
$1.49
27
FOOTREST,LH,(650)
2200303
Unavailable
27
KIT,FOOTREST,RH(BLK)
2200349
Unavailable
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE
5210728
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
34
CLIP, BELT Substituted by 5222769
5220817
Unavailable
35
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
37
TUNNEL ASM. Substituted by 1011809 (650 Only)
1011790
Unavailable
37
TUNNEL,(650SKS),BLK. Substituted by 1011807 (650 SKS Only w/11011694)
1011695-21
Unavailable
38
DECAL,CLUTCH,POLARIS [No Longer Available]
7072558
Unavailable
40
SPEED NUT(10)
7670021
$6.99
41
SNAP-MALE(10)
7080227
Unavailable
42
DECAL, WARNING [No Longer Available]
7072153
Unavailable
43
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
43
BUMPER, (SKS) Substituted by 5224349-067 (650 SKS Only)
5224349
Unavailable
44
DECAL,TRACK,SILVER(650) [No Longer Available]
7072637
Unavailable
45
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
46
PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (650 SKS)
1011694
Unavailable
47
FLAP,SNOW(RED&BLACK) Substituted by 5410394-1117
5410577
$121.02
48
POP RIVET(50)
7621418
$1.49
49
WEARPLATE,TUNNEL
5222061
Unavailable
50
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
51
DECAL, SKS, RED [No Longer Available] (650 SKS Only)
7072818
Unavailable
52
REFLECTOR RED
2670070
$9.91
53
BOLT(10)
7512103
$3.19
55
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
56
PLATE,TUNNEL,LH
5220634
Unavailable
56
PLATE,TUNNEL,RH
5220635
Unavailable
57
FOAM, FILLER
5810201
Unavailable
58
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
59
BOLT(10)
7512193
$2.39
60
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
61
SUPT., MUFFLER [No Longer Available]
1011582
Unavailable
62
BRACKET Substituted by 5221932-067
5221932
Unavailable
63
BULKHEAD,(600/650)
1011614
Unavailable
64
WASHER(10)
7558301
$1.49
65
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
66
SCREW(10)
7511863
$1.99
67
BOLT(10)
7512240
$3.99
68
DECAL,36'',R.BUMP [No Longer Available]
7072582
Unavailable
69
NUT-HEX-3/8-16 A ZTB NYL (650 SKS Only)
7542451
$1.49
70
BOLT,NYLOC,BLACK(10) Substituted by 7515432 (650 SKS Only)
7515493
Unavailable
71
PAD,LH,R.SUSP.MTG. Substituted by 1011749-067
1011749
Unavailable
71
PAD,RH,R.SUSP.MTG. Substituted by 1011750-067
1011750
Unavailable
72
BRKT. Substituted by 5220542-067
5220542
Unavailable
73
BRKT, TOOL BOX
5220973
Unavailable
74
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
75
DECAL,LH,TUNNEL(91-650) [No Longer Available]
7072997
Unavailable
75
DECAL,RH,TUNNEL(91-650) [No Longer Available]
7072998
Unavailable
76
SPRING, TANK
7042033
Unavailable
77
STRIP-WEAR
5510130
Unavailable
77
BRKT,R.FUELTANK MTG. Substituted by 5222375-067
5222375
Unavailable
