BRAKE AND CHAINCASE 650 and 650 SKS TO SERIAL NUMBER 1839636 (4919261926013A)

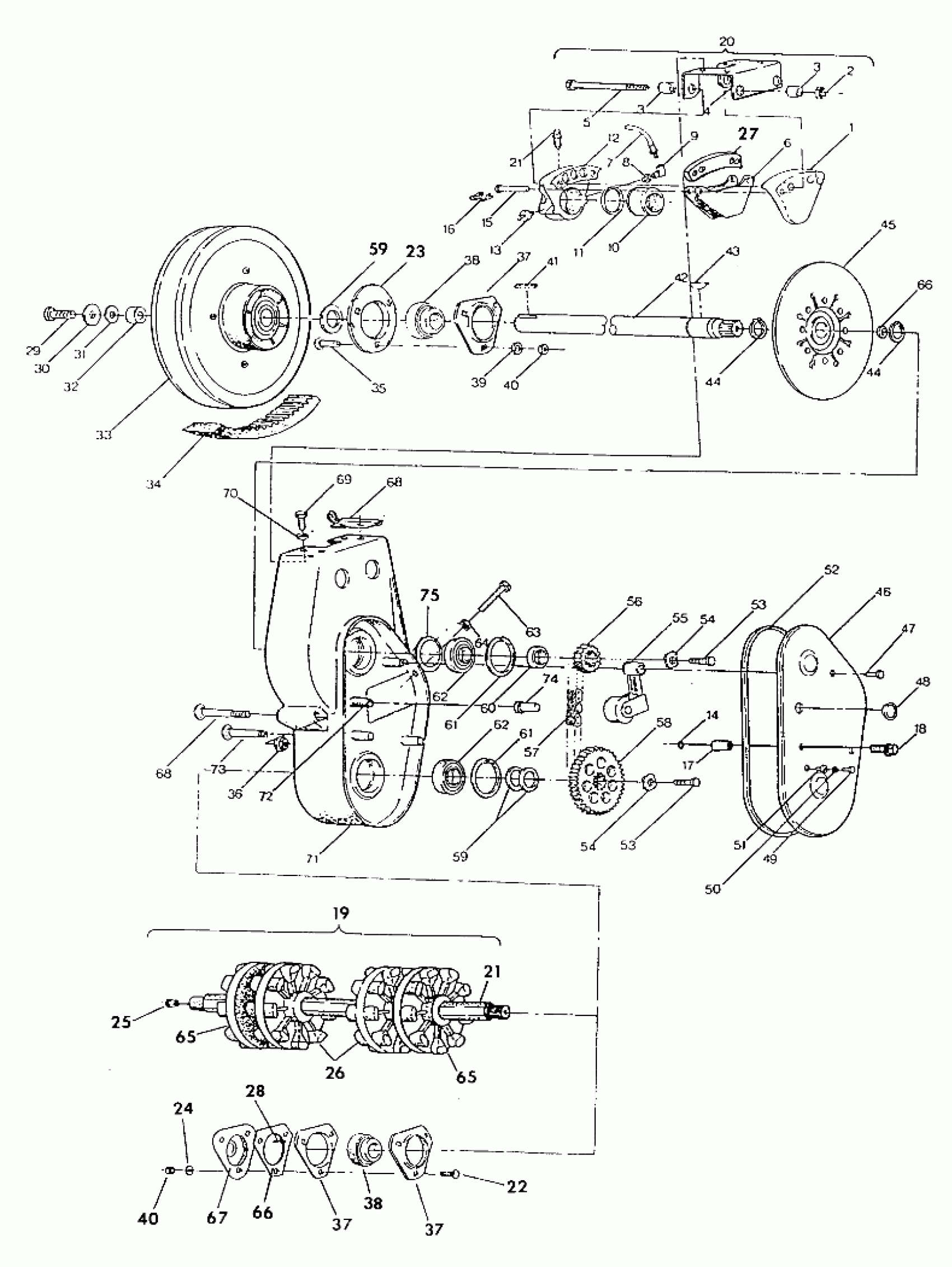

Polaris 650 - 0910758 BRAKE AND CHAINCASE 650 and 650 SKS TO SERIAL NUMBER 1839636 (4919261926013A) Diagram
#
1
CASTING-CARRIER
1930570
Unavailable
2
NUT
1930558
Unavailable
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET
5223986
Unavailable
5
BOLT-BRIDGE
1930561
Unavailable
6
PAD, BRAKE
1930569
Unavailable
7
LINE,BRAKE
1930692
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW
7052058
Unavailable
10
PISTON
5020511
Unavailable
11
SEAL-PISTON
1930567
Unavailable
12
HOUSING, PISTON
1930589
$111.99
13
SWITCH-STOPLIGHT
4110046
Unavailable
14
O RING
5410565
Unavailable
15
PIN,PAD RETAINING
1930563
Unavailable
16
CLIP-SPRING
1930562
Unavailable
17
STAND-OFF,C/C COVER
5333033
Unavailable
18
BOLT, S.S.(10)
7512293
Unavailable
19
DRIVESHAFT ASM.
1590225
Unavailable
20
CALIPER ASM, BRAKE
1930556
Unavailable
21
DRIVE SHAFT
5020388
Unavailable
21
DRIVE SHAFT
5020388
Unavailable
22
BOLT(10)
7512331
$3.99
23
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
24
WASHER(10)
7555725
Unavailable
25
BUSHING METAL SPEEDO
3280019
$11.99
26
SPROCKET, 9T
5430571
Unavailable
27
SPACER
5210999
Unavailable
28
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
29
BOLT(10)
7515301
Unavailable
30
WASHER FLAT(10)
7555701
$3.99
31
WASHER(10)
7555734
Unavailable
32
SPACER
5020291
Unavailable
33
CLUTCH, DRIVEN Substituted by 1322154
1322107
Unavailable
34
BELT DRIVE(5)
3211042
$109.99
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
NUT(10)
7542423
$3.99
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
38
BEARING
3514501
Unavailable
38
BEARING
3514501
Unavailable
39
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
KEY-SQUARE(10)
7721204
$3.19
42
SHAFT, INPUT,BLK. Substituted by 5020323-067
5020323
Unavailable
43
KEY,(10)
7727003
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
45
DISC BRAKE ASM Substituted by 1910086
1910064
Unavailable
46
COVER,CHAINCASE
5222579
Unavailable
47
BOLT(10)
7512246
Unavailable
48
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
49
SCREW(10)
7511909
$3.99
50
WASHER, FLAT(10)
7558201
$5.79
51
NUT-WELL(10)
7541918
Unavailable
52
GASKET-CHAINCASE
5410277
$24.99
53
BOLT(10)
7512325
$2.39
53
BOLT(10)
7512325
$2.39
54
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
54
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 19 T
3221034
Unavailable
56
SPROCKET 21 T
3221035
Unavailable
57
CHAIN Substituted by 3224023
3224049
Unavailable
58
SPROCKET 35 T
3222036
$53.59
59
WASHER SPECIAL(10)
7556509
$1.59
59
WASHER SPECIAL(10)
7556509
$1.59
60
SPACER Substituted by 5010270
5010128
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
BEARING,CHAINCASE
3514305
$19.99
62
BEARING,CHAINCASE
3514305
$19.99
63
SCREW(10)
7512470
Unavailable
64
NUT(10)
7542404
$1.59
65
SPROCKET, HALF,9T
5430993
Unavailable
65
SPROCKET, HALF,9T
5430993
Unavailable
66
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
66
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
67
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
68
RETAINER,RECOIL,BLK. Substituted by 1011448-067
1011448
Unavailable
68
RETAINER,RECOIL,BLK. Substituted by 1011448-067
1011448
Unavailable
69
BOLT(10)
7512240
$3.99
70
LOCK WASHER(10)
7552801
$1.59
71
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
72
BOLT(10)
7515428
$4.79
73
BOLT(10)
7515477
$34.99
74
CAP, STUD COVER
5020569
Unavailable
75
O-RING
5410401
Unavailable
