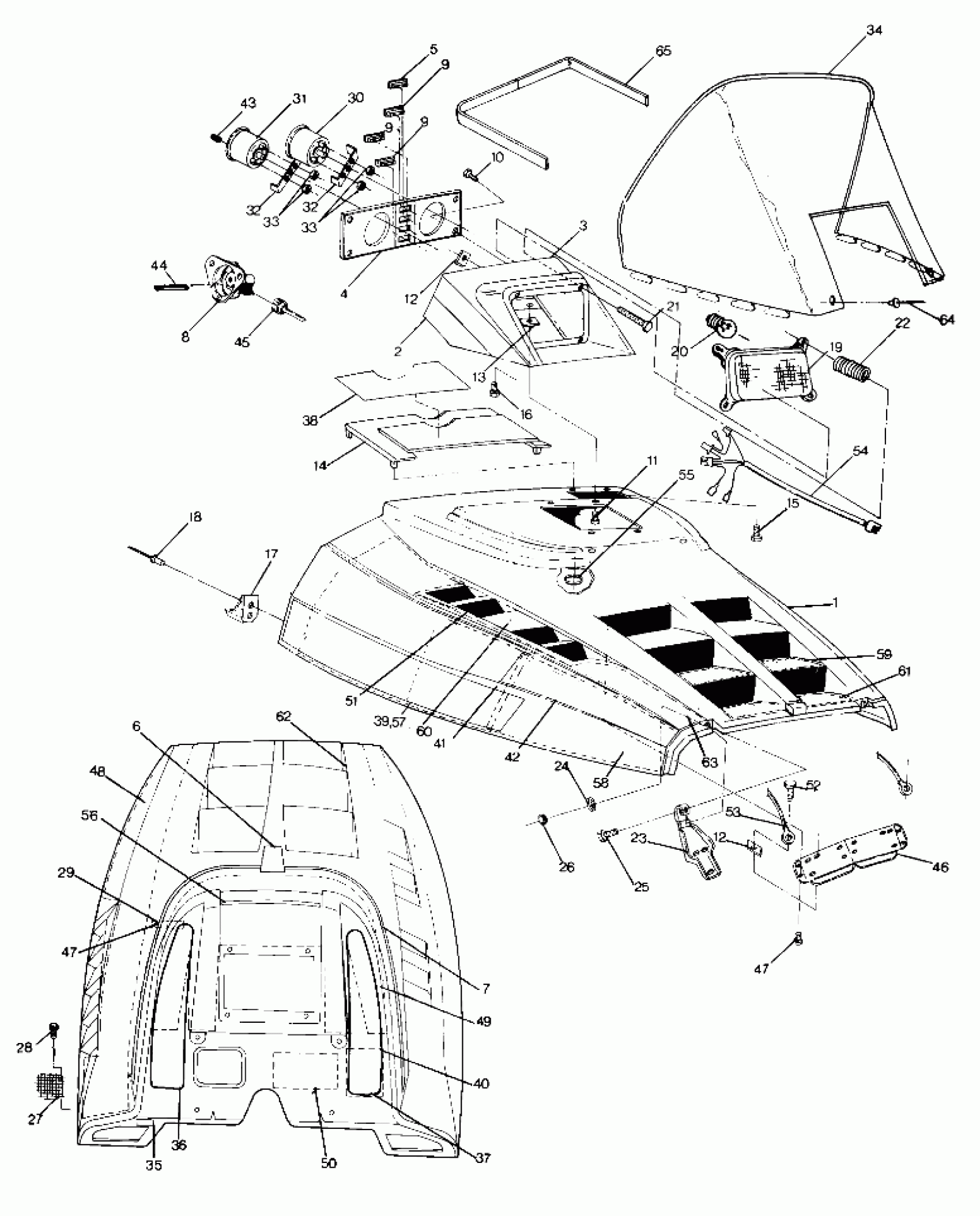

Polaris 650 - 0900758 HOOD 650 Updated 2/90 (4916801680003A) Diagram
#
1
HOOD,BLACK,INDY Substituted by 2631574-070
5431194-070
Unavailable
2
HSG,INST,BOTTOM Substituted by 5430922-070
5431051
Unavailable
3
HSG,INST, TOP Substituted by 5430923-070
5431052
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
EMBLEM,'35 YR'(400) [No Longer Available]
5431127
Unavailable
7
DECAL(27.0'')PINSTRIPE [No Longer Available]
7072753
Unavailable
8
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
9
PLUG,INDIC.HOLE
5430967
$5.65
9
PLUG,INDIC.HOLE
5430967
$5.65
9
PLUG,INDIC.HOLE
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
PANEL,INTAKE,BLK Substituted by 2620078-070
5431195-070
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. Substituted by 4032040 (Incl. 20-22)
2431007
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT(10)
7512193
$2.39
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511861
Unavailable
29
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
30
SPEEDO.,(KILOMETER) (Incl. 32-33)
3280097
$125.65
31
TACHOMETER,3 CYL. Substituted by 3280192 (Incl. 32-33)
3280096
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD,SMOKE,STD(LIQ)
5431144
$134.99
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OPER.CAUT.ENG. [No Longer Available]
7072492
Unavailable
37
DECAL,OPER.CAUT.(FR.) [No Longer Available]
7072493
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072491
Unavailable
39
DECAL,HOOD,LH [No Longer Available]
7072756
Unavailable
39
DECAL,HOOD,RH [No Longer Available]
7072757
Unavailable
40
DECAL, SPEC. [No Longer Available]
7072869
Unavailable
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,LH HOOD TOP [No Longer Available]
7072754
Unavailable
42
DECAL,RH HOOD TOP [No Longer Available]
7072755
Unavailable
43
KNOB,TRIP ODOMETER
3280103
$3.83
44
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
45
CABLE,SPEEDO.
3280094
$60.70
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HOOD RETAINER
7080368
$10.51
54
HARNESS,H/L.&INST. [No Longer Available]
2460261
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
56
DECAL,HOOD-H/L POD [No Longer Available]
7072676
Unavailable
57
KIT,DECAL'650'(90) [No Longer Available] (Incl. 6, 7, 35-40, 42)
2200326
Unavailable
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
65
PAD,W/S,LH,BLACK
5810437
Unavailable
65
PAD,W/S,RH,BLACK
5810438
$1.67
