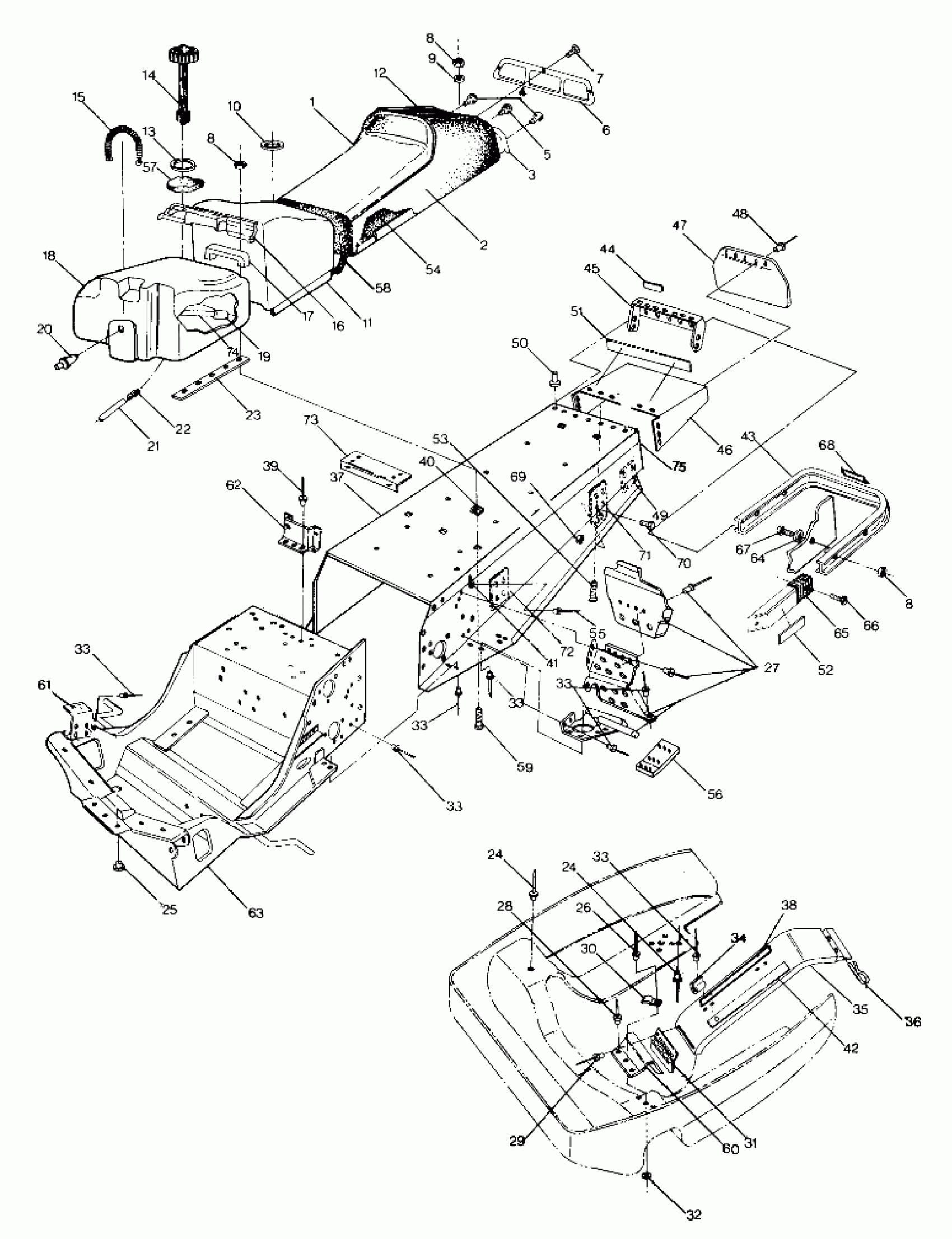

Polaris 650 - 0900758 CHASSIS AND SEAT 650 Updatd 2/90 (4916801680001A) Diagram

SEAT ASM.(650SWED.) Substituted by 2200749 (Incl. 2-7, 12, 54)

2681452

Unavailable

COVER,SEAT(SCAND'650') [No Longer Available]

2681451

Unavailable

HOUSING,TAILLIGHT

5430425

Unavailable

BULB TAILLIGHT(10)

4030015

$4.03

BULB, BRAKELIGHT

4030019

Unavailable

LENS,TAILLIGHT

5430423

Unavailable

SCREW(10)

7511840

Unavailable

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

WASHER(10)

7558221

$2.39

GROMMET-GAS TANK

5430575

Unavailable

COVER,TANK(400/650) Substituted by 2200738

2681427

Unavailable

BUCKLE&STRAP

2681290

$4.78

GASKET-GAS CAP Substituted by 5810513

5810142

Unavailable

GAUGE,GAS Substituted by 2511246

2511149

Unavailable

SPRING,TANK,(10)

7042020

$13.75

STRAP,GAS TANK Substituted by 5222330-067

5221722

Unavailable

CUSHION,TANK H.D.

5420126

Unavailable

TANK,GAS

2511150

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

FITTING - OUTLET(10)

7052023

$24.99

KIT-TANK VENT

2200190

Unavailable

VENT FITTING,TANK Substituted by 5430579

5430669

Unavailable

PAD-GAS TANK

5810063

$4.95

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

PLUG-HOLE

7080398

$4.84

BLIND RIVET(50)

7621403

$1.49

FOOTREST,LH,(650)

2200303

Unavailable

KIT,RH.FOOTREST(SCAND) [No Longer Available]

2200332

Unavailable

RIVET(50)

7621452

$1.49

RIVET, POP(50)

7621330

$1.49

CLIP, WIRING,(10) Substituted by 7080665

4020035

Unavailable

HINGE

5210728

Unavailable

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

CLIP, BELT Substituted by 5222769

5220817

Unavailable

GUARD,CLUTCH Substituted by 5240965

5230118

Unavailable

PIN,RETAINING,(10)

7080216

$9.70

DESC NOT_AVAILABLE (650 SKS Only w/1011694)

1011778

Unavailable

TUNNEL ASM,('89-650) Substituted by 1011808 (650 SKS)

1011665

Unavailable

DECAL,CLUTCH,POLARIS [No Longer Available]

7072558

Unavailable

SPEED NUT(10)

7670021

$6.99

SNAP-MALE(10)

7080227

Unavailable

DECAL, WARNING [No Longer Available]

7072153

Unavailable

BUMPER,R.(N-INDY) Substituted by 5224347-067

5224347

Unavailable

DESC NOT_AVAILABLE (650 SKS Only)

5224421

Unavailable

DECAL,TRACK,SILVER(650) [No Longer Available]

7072637

Unavailable

PANEL,TUNNEL,BACK Substituted by 5220478-067

5220478

Unavailable

PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (650 SKS Only)

1011694

Unavailable

FLAP,SNOW(RED&BLACK) Substituted by 5410394-1117

5410577

$121.02

POP RIVET(50)

7621418

$1.49

WEARPLATE,TUNNEL

5222061

Unavailable

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

DECAL, SKS, RED [No Longer Available] (650 SKS Only)

7072818

Unavailable

REFLECTOR RED

2670070

$9.91

BOLT(10)

7512103

$3.19

SEAT BUN [No Longer Available] (except for 650 SKS) (Swedish)

5430707

Unavailable

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

PLATE,TUNNEL,LH

5220634

Unavailable

PLATE,TUNNEL,RH

5220635

Unavailable

FOAM, FILLER

5810201

Unavailable

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Unavailable

BOLT(10)

7512193

$2.39

BRACKET, HINGE Substituted by 5241437

5220406

Unavailable

SUPT., MUFFLER [No Longer Available]

1011582

Unavailable

BRACKET Substituted by 5221932-067

5221932

Unavailable

BULKHEAD,(600/650)

1011614

Unavailable

WASHER(10)

7558301

$1.49

CAP, BUMPER Substituted by 5430930-070

5430930

Unavailable

SCREW(10)

7511863

$1.99

BOLT(10)

7512240

$3.99

DECAL,36'',R.BUMP [No Longer Available]

7072582

Unavailable

NUT-HEX-3/8-16 A ZTB NYL (650 SKS Only)

7542451

$1.49

BOLT,NYLOC,BLACK(10) Substituted by 7515432 (650 SKS Only)

7515493

Unavailable

BRKT,R.SUSP,RH MTG. Substituted by 1011750-067

1011667

Unavailable

BRKT,R.SUSP,LH MTG. Substituted by 1011749-067

1011666

Unavailable

BRKT. Substituted by 5220542-067

5220542

Unavailable

BRKT, TOOL BOX

5220973

Unavailable

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

KNOB,ADJ. Substituted by 2670130

7030007

Unavailable

GRABBAR, LH Substituted by 1011729-067

1011696

Unavailable

GRABBAR, RH Substituted by 1011730-067

1011697

Unavailable

GRIP, HAND Substituted by 5433383 (NOR/FIN 650 SKS Only)

5431015

$19.68

BOX,TOOL,(2-UP SEAT) Substituted by 5431345 (650 SKS)

5430925

Unavailable

REFLECTOR

5430781

Unavailable

COVER, BACKREST (Swedish 650 SKS Only)

2681265

$257.13

BRACKET, HITCH

5220941

Unavailable

PLATE,HITCH MOUNT Substituted by 5220942-067 (FIN 650 Only)

5220942

Unavailable

DECAL,TUNNEL STRIPE [No Longer Available]

7072776

Unavailable

BRACKET-CLUTCH GUARD [No Longer Available] (Swedish 650 SKS Only)

5223798

Unavailable

DESC NOT_AVAILABLE (Swedish 650 SKS Only)

5222119

Unavailable

DESC NOT_AVAILABLE (NOR/FIN 650 SKS Only)

2691356

Unavailable
