STEERING 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 600 XCR SE E97567 (4937963796B006)

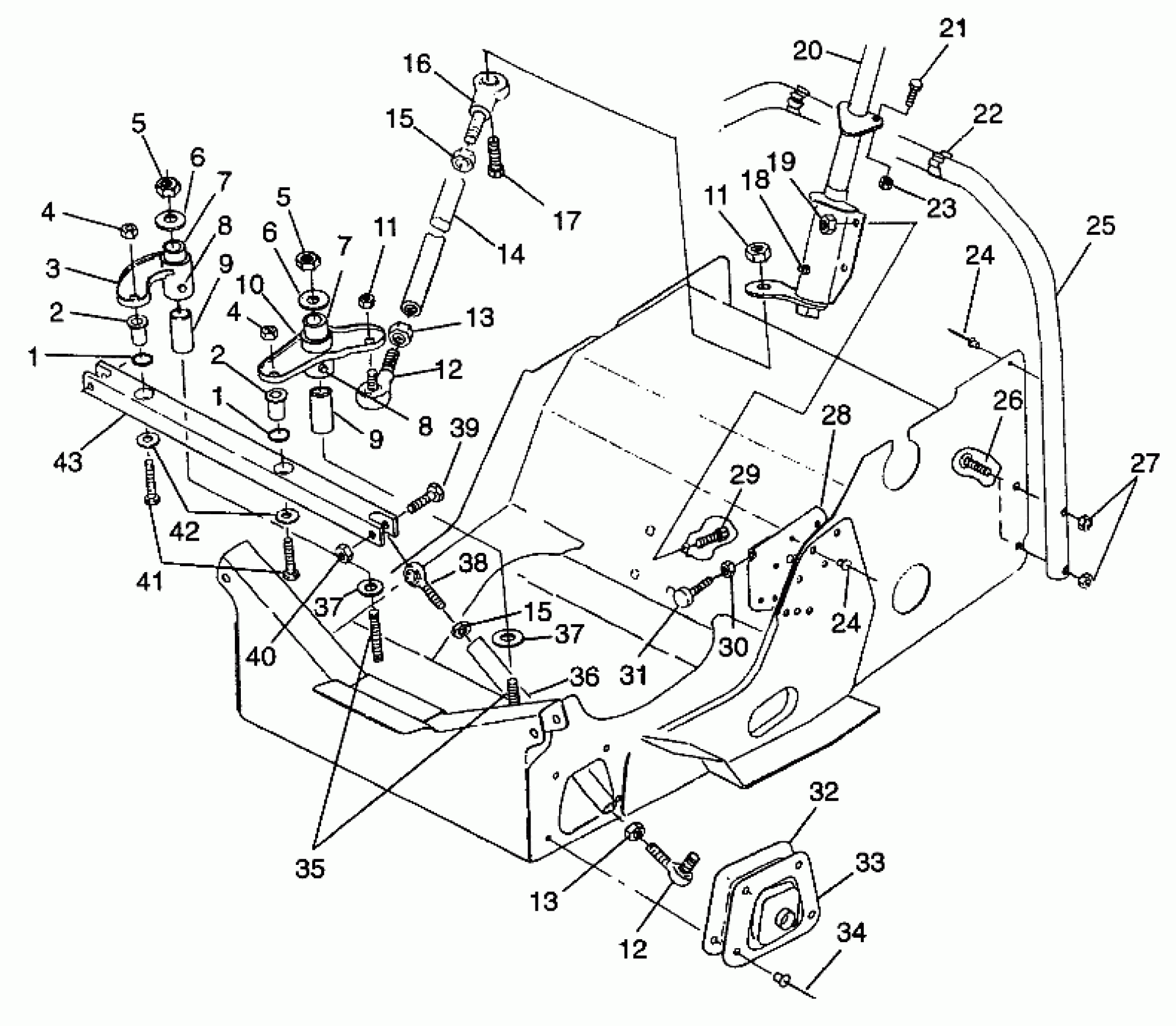

Polaris 600 XCR - 0975677 STEERING 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 600 XCR SE E97567 (4937963796B006) Diagram
#
1
O-RING
5411220
$6.46
1
O-RING
5411220
$6.46
2
TUBE,SPACER
5010384
Unavailable
2
TUBE,SPACER
5010384
Unavailable
3
ARM, IDLER ASM (Incl. 7, 8)
1822407
Unavailable
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
NUT, LOCK,(10)
7542503
$10.39
5
NUT, LOCK,(10)
7542503
$10.39
6
WASHER(10)
7555721
$1.49
6
WASHER(10)
7555721
$1.49
7
BUSHING
3563907
$3.99
7
BUSHING
3563907
$3.99
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
SPACER
5010385
Unavailable
9
SPACER
5010385
Unavailable
10
ARM, PITMAN ASM Substituted by 1822562 (Incl. 7, 8)
1822405
Unavailable
11
NUT LOCK(10)
7542403
$3.99
11
NUT LOCK(10)
7542403
$3.99
12
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
12
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
13
NUT HEX(10)
7542401
$2.39
13
NUT HEX(10)
7542401
$2.39
14
ROD,DRAGLINK
5333411
Unavailable
15
NUT
7542424
$1.49
15
NUT
7542424
$1.49
16
ROD END, LH.
7060164
$48.56
17
BOLT(10)
7512404
$3.99
18
FITTING-LUBRICATION 1/4-28
7080424
$4.79
19
NUT-5/16-18 NYLOK-Y
7542324
$1.49
20
POST,STEERING
1822432-067
Unavailable
21
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
22
CLIP(10)
7080278
$2.63
23
NUT(10)
7542124
Unavailable
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
25
HOOP,STEERING Substituted by 1012856-067
1012282-067
Unavailable
26
BOLT-CARRIAGE(10)
7512275
$3.99
27
NUT-LOCK(10)
7542122
$1.49
28
STOP,TORQUE,BLK. Substituted by 1012523
1012523-067
Unavailable
29
BOLT(10) Substituted by 7512377
7512394
Unavailable
30
NUT,HEX(10)
7542414
$4.79
31
STOP,TORQUE,COARSE
3110058
Unavailable
32
BOOT,TIE ROD
5410954
Unavailable
33
PLATE,BOOT,BLK
5211679-067
Unavailable
34
POP RIVET(50)
7621323
$1.49
35
BOLT ,(10)
7512564
$3.81
36
TIEROD,BLK
5020857-067
Unavailable
37
WASHER,THRUST(10)
7555876
Unavailable
37
WASHER,THRUST(10)
7555876
Unavailable
38
ROD END,LH
7060166
$48.56
39
SCREW(10)
7515434
Unavailable
40
NUT LOCK(10)
7542411
$3.19
41
BOLT(10) Substituted by 7517583
7515491
Unavailable
42
WASHER(10)
7555893
$1.49
43
RACK ASM,STEERING
1822408
Unavailable
