RAIL MOUNTING (SUSPENSION) 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN (4937963796B012)

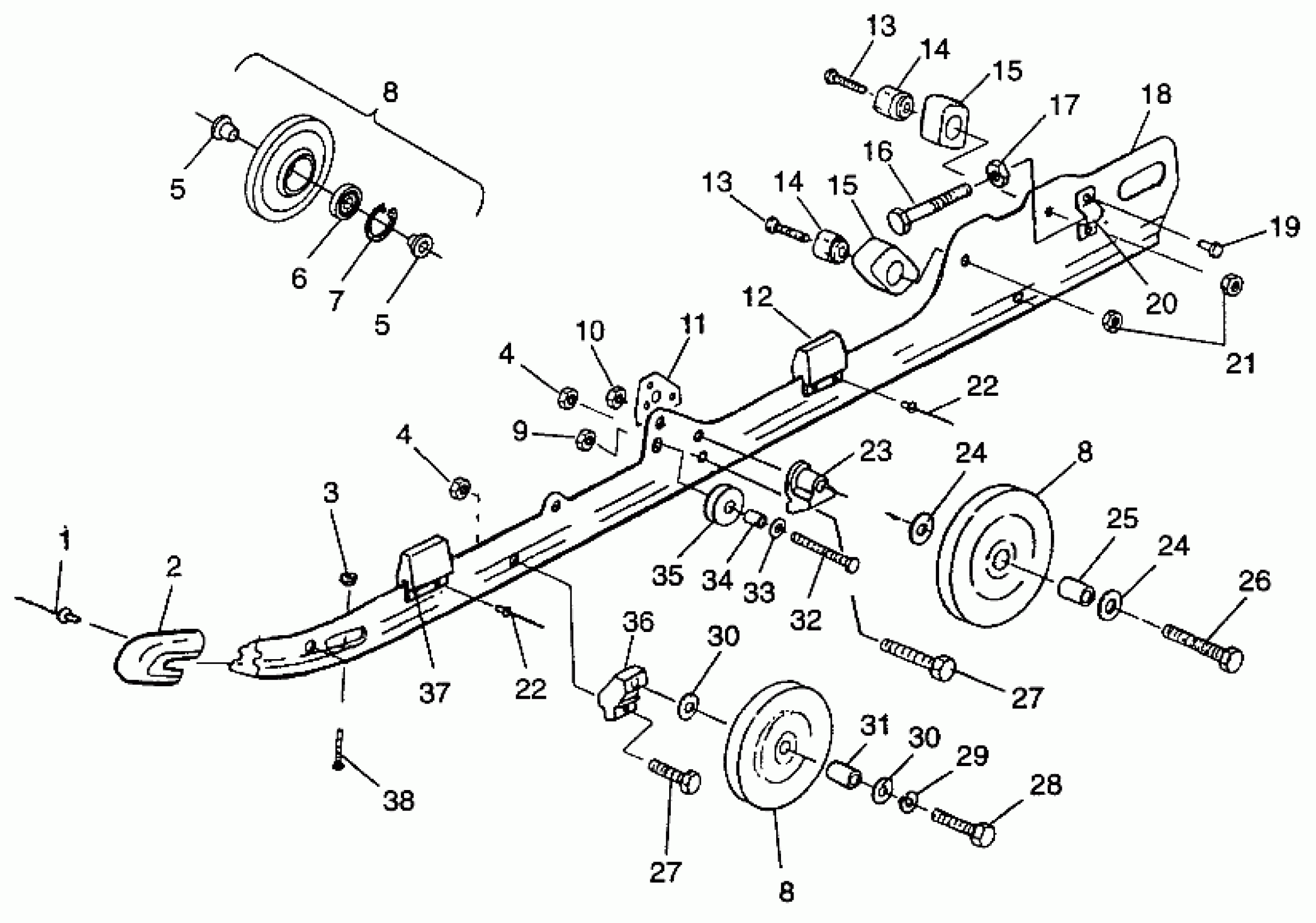

Polaris 600 XCR - 0975677 RAIL MOUNTING (SUSPENSION) 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN (4937963796B012) Diagram
#
1
RIVET(50)
7621435
$1.49
2
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
4
NUT-LOCK(10)
7542439
$1.49
4
NUT-LOCK(10)
7542439
$1.49
5
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
5
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
6
BEARING (1 per Wheel)
3514303
$11.99
7
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
8
WHEEL, IDLER (Incl. 5-7)
1543018
$56.65
8
WHEEL, IDLER (Incl. 5-7)
1543018
$56.65
8
WHEEL, IDLER (Incl. 5-7)
1543018
$56.65
9
NUT LOCK(10)
7542411
$3.19
10
NUT, NYLOCK(10)
7542525
$4.79
11
BRKT,RAIL,REINF
5211790
Unavailable
12
REINF., BUMPER
5222629
$13.75
12
BUMPER, RAIL
5810554
$7.27
13
BOLT(10)
7515537
$10.99
13
BOLT(10)
7515537
$10.99
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
15
BUMPER,F.PIVOT ARM
5410925
$12.94
15
BUMPER,F.PIVOT ARM
5410925
$12.94
16
BOLT, ADJUSTER(10)
7515455
$29.99
17
NUT(10)
7542440
Unavailable
18
RAIL,LH,121,XTRA 10 (Incl. 2, 12, 15, 20, 37)
1541146
$288.99
18
RAIL,RH,121,XTRA 10 (Incl. 2, 12, 15, 20, 37)
1541147
Unavailable
19
RIVET,(50)
7621501
$2.39
20
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
21
NUT LOCK(10)
7542403
$3.99
22
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
22
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
23
SPACER
5630399
$11.99
24
WASHER, FLAT(10)
7555852
$2.39
24
WASHER, FLAT(10)
7555852
$2.39
25
SPACER, WHEEL
5333116
$7.99
26
BOLT(10)
7512538
$6.39
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
28
BOLT(10)
7512659
$7.99
29
LOCK WASHER(10)
7553201
$3.99
30
WASHER(10)
7555804
$3.99
30
WASHER(10)
7555804
$3.99
31
SPACER
5332786
$7.99
32
BOLT Substituted by 7515491
7515433
$1.59
33
WASHER(10)
7555743
Unavailable
34
Spacer
5332787
Unavailable
35
ROLLER,SPRING
5432170
Unavailable
36
BRACKET,BOGIE WHEEL
5130570
$48.56
37
BUMPER,SUSPENSION
5811097
Unavailable
38
BOLT(10)
7515175
$3.99
