OIL TANK / AIR BOX - H975677 (4937963796C005)

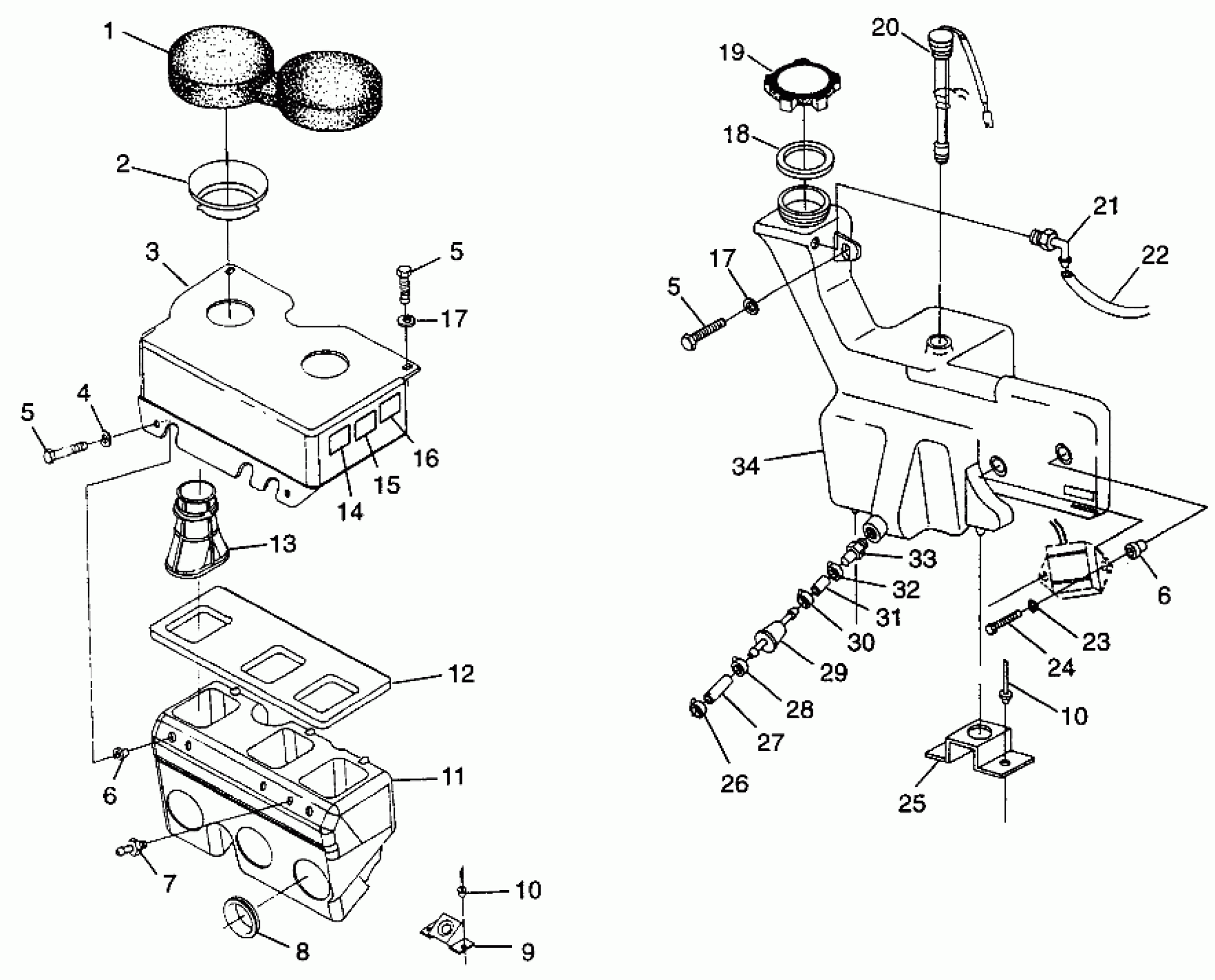

Polaris 600 XCR - 0975677 OIL TANK / AIR BOX - H975677 (4937963796C005) Diagram
#
Description
Price
1
FOAM ASM,INTAKE,AGR
1253176
Unavailable
2
INLET,PLENUM
5410834
Unavailable
3
PLENUM,SILENCER,(680 AGR)
5432540
Unavailable
4
WASHER(10)
7555960
$3.99
5
BOLT(10)
7512276
$4.79
5
BOLT(10)
7512276
$4.79
5
BOLT(10)
7512276
$4.79
6
NUT-WELL(10)
7541923
$5.59
6
NUT-WELL(10)
7541923
$5.59
7
FITTING,HOSE(10)
7052127
$3.19
8
Boot
5410271
Unavailable
9
BRKT.OIL TANK,
5241322
Unavailable
10
RIVET-3/16-.090-.290
7661637
$1.49
10
RIVET-3/16-.090-.290
7661637
$1.49
11
BOTTOM,AIRBOX,INT.VENT(680)
5432127
Unavailable
12
SEAL,PLENUM
5810946
Unavailable
13
BOOT,CONE SILENCER,OUTLET
5411047
Unavailable
14
DECAL,CAUTION,AIRBOX
7075351
Unavailable
15
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
16
DECAL, GREASING [No Longer Available]
7073426
$7.27
17
WASHER,WROUGHT(10)
7558302
$1.59
17
WASHER,WROUGHT(10)
7558302
$1.59
18
GASKET-OIL CAP
5810141
$2.39
19
CAP,OIL TANK
5430779
$14.56
20
SENSOR,OIL LEVEL
4110134
$72.84
21
FITTING,90 DEG,1/8,(10)
7052095
$4.79
22
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
24
SCREW(10)
7512279
$1.49
25
BRKT,OILTANK,COINED
5241330
$2.15
26
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
27
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
28
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
29
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
30
HOSE CLAMP, RED (Red)
7080003
$1.49
31
LINE,OIL,FORMED
5410902
Unavailable
32
CLAMP,HOSE(10)
7080544
Unavailable
33
FITTING,3/8 OUTLET
7052110
Unavailable
34
TANK,OIL,W/SEND.UNITHOLE Substituted by 2201101
5432472
Unavailable
