Description

Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE#3,VINYL(L=315) Substituted by 3085591 (120 mm)

3083488

Unavailable

3

PIPE,VINYL 1 (160 mm)

3085157

$29.99

4

PIPE,RUBBER(8MMX1M.)ACCS (290 mm)

3085172

$36.19

5

GEAR,SMALL,OIL PUMP

3083131

$89.99

6

SPACER

3083130

$1.59

7

BUSHING(OIL PUMP)

3083353

$31.99

8

SPACER #3 (.6mm)

3083673

Unavailable

8

SPACER #2 (.3mm)

3083672

Unavailable

8

SPACER #1 (.15mm)

3083671

Unavailable

9

O RING

3083127

Unavailable

10

SCREW-AIR VENT

3083125

Unavailable

11

PACKING(10)

3083126

$4.03

12

NUT(10)

3083120

$3.19

13

WASHER-SPRING(10)

3083121

$299.99

14

LEVER,CONTROL

3085510

Unavailable

15

COLLAR, CAMSHAFT(10)

3083445

$2.39

16

SPRING-RETURN

3083123

Unavailable

17

SCREW&WASHER,(10)

3083783

$2.39

18

PUMP ASM, OIL (Incl. 9-16)

3085495

Unavailable

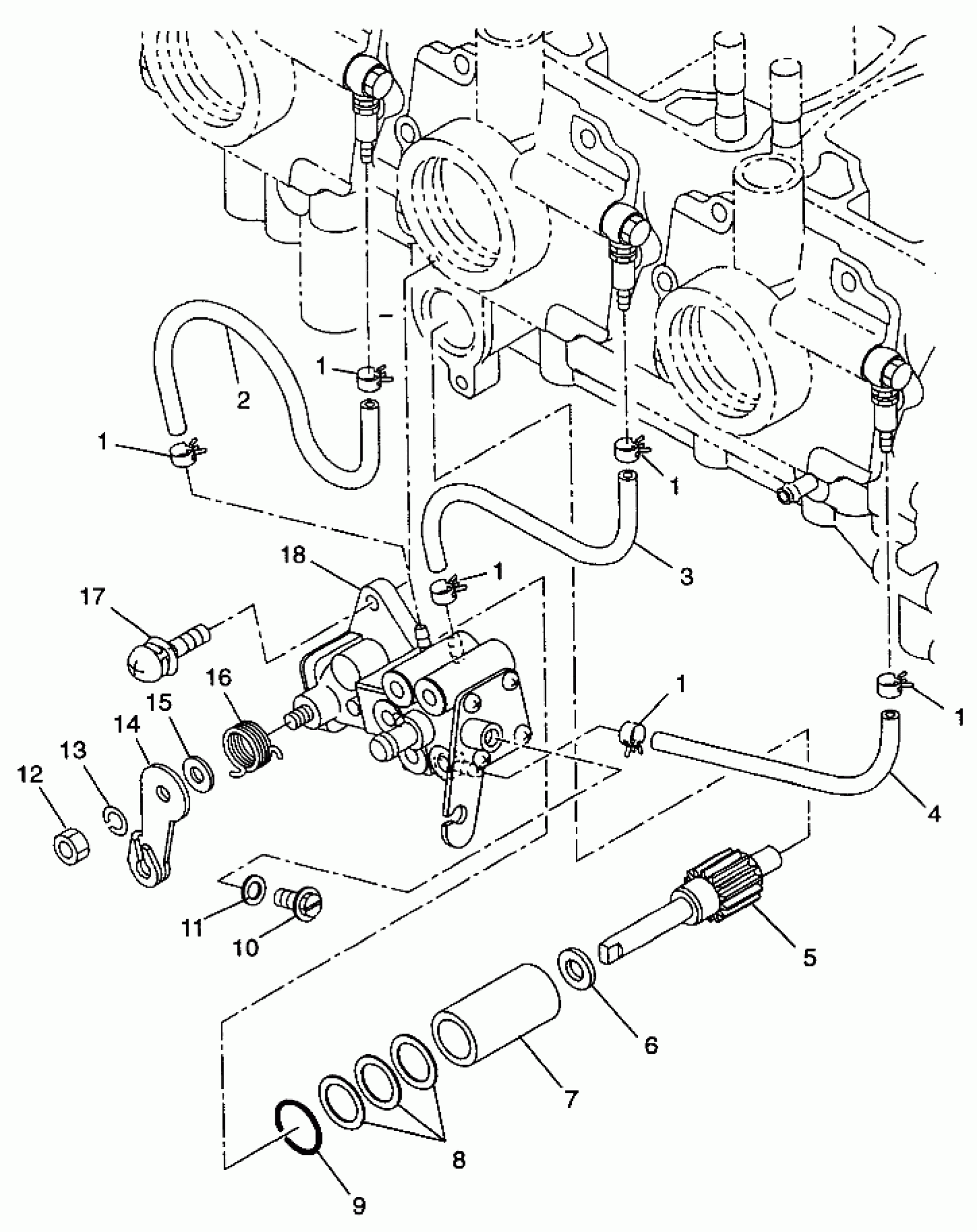

Polaris 600 XCR - 0975677 OIL PUMP - H975677 (4937963796C014) Diagram

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

PIPE#3,VINYL(L=315) Substituted by 3085591 (120 mm)

PIPE,VINYL 1 (160 mm)

PIPE,RUBBER(8MMX1M.)ACCS (290 mm)

GEAR,SMALL,OIL PUMP

SPACER

BUSHING(OIL PUMP)

SPACER #3 (.6mm)

SPACER #2 (.3mm)

SPACER #1 (.15mm)

O RING

SCREW-AIR VENT

PACKING(10)

NUT(10)

WASHER-SPRING(10)

LEVER,CONTROL

COLLAR, CAMSHAFT(10)

SPRING-RETURN

SCREW&WASHER,(10)

PUMP ASM, OIL (Incl. 9-16)
