FRONT SUSPENSION and SKI 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 6 (4937963796B003)

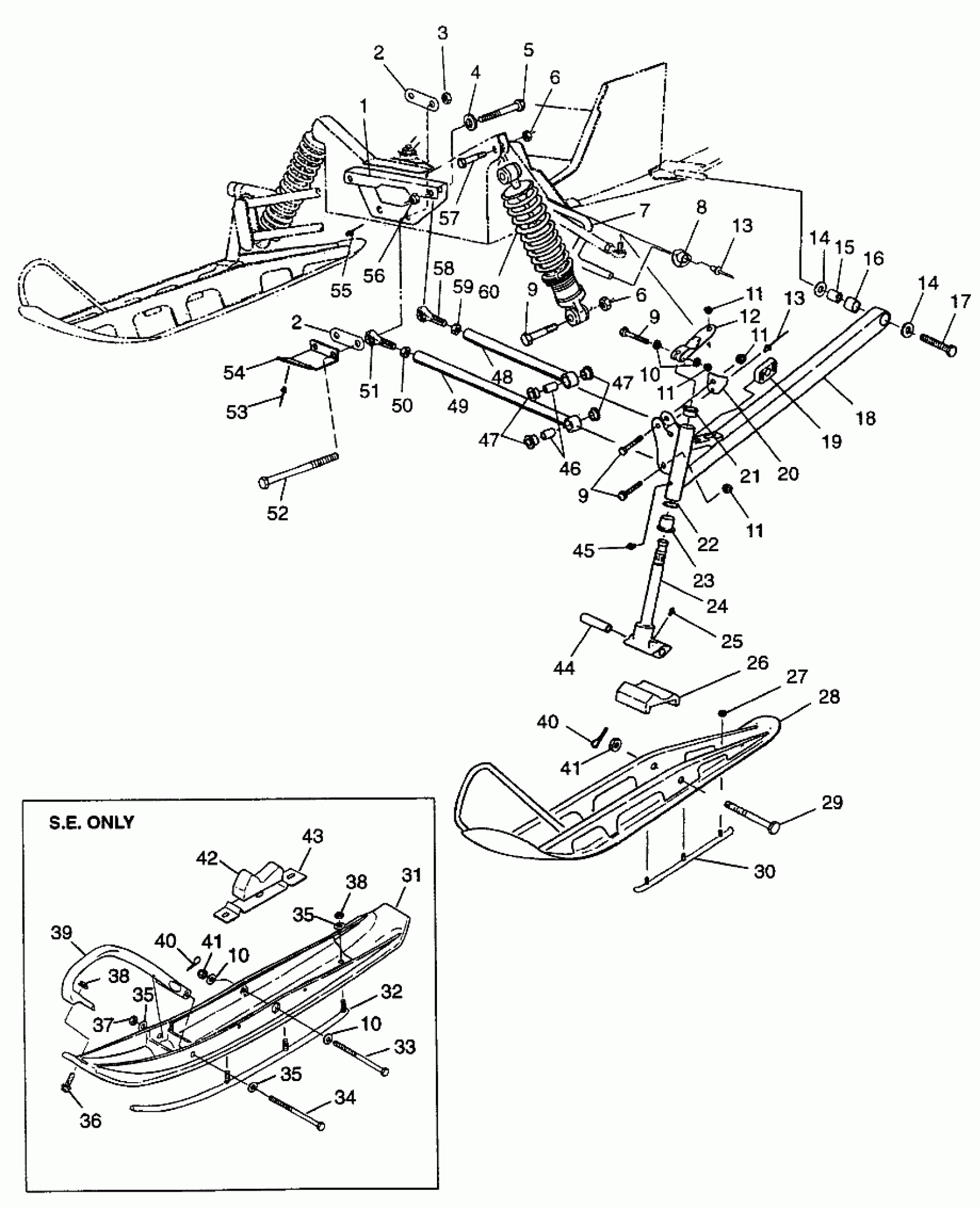

Polaris 600 XCR - 0975677 FRONT SUSPENSION and SKI 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 6 (4937963796B003) Diagram
#
1
BRACE,FR.BULKH.,BLK Substituted by 5242112-067
5241641-067
Unavailable
2
STRAP,SPACER BOTTOM
5211345
$12.99
2
STRAP,SPACER BOTTOM
5211345
$12.99
3
NUT FLEX,(10)
7542703
Unavailable
4
WASHER THRUST(10)
7558702
$1.59
5
BOLT(10)
7512551
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
7
BAR,SWAY,BLK,
5224742-067
Unavailable
8
BUSHING,SWAY BAR
5432038
$19.99
9
BOLT(10) Substituted by 7517583
7515491
Unavailable
9
BOLT(10) Substituted by 7517583
7515491
Unavailable
9
BOLT(10) Substituted by 7517583
7515491
Unavailable
10
WASHER(10) Substituted by 7555832
7555851
Unavailable
10
WASHER(10) Substituted by 7555832
7555851
Unavailable
10
WASHER(10) Substituted by 7555832
7555851
Unavailable
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
ARM,LH,STRG,BLK.
5241660-067
Unavailable
12
ARM,RH,STRG,BLK.
5241661-067
Unavailable
13
RIVET(50) Substituted by 7661130
7661643
Unavailable
13
RIVET(50) Substituted by 7661130
7661643
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE, BUSHING
5010310
$9.70
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH Substituted by 2201470 (Incl. 15, 16)
1822451
Unavailable
18
ARM,TRLG,RH Substituted by 2201471 (Incl. 15, 16)
1822452
Unavailable
19
SLIDE,SWAYBAR,5/8
5432331
$28.32
20
STOP,LH,STRG,BLK
5241777-067
$15.08
20
STOP,RH,STRG,BLK.
5241778-067
$18.23
21
BUSHING-FLANGE
3573909
$2.39
22
WASHER SPECIAL(10)
7556509
$1.59
23
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
24
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
25
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
26
Stop, Rubber
5411083
$12.94
27
NUT-5/16-18 NYLOK-Y
7542324
$1.49
28
SKI WELD (XCR)
1820430-067
Unavailable
29
BOLT(10)
7515462
$8.79
30
SKAG,PR.,CARBIDE
2870693
$69.99
31
SKI ASM,COMP,(PLASTIC) Substituted by 1820506-070 (SE)
1820506
Unavailable
32
KIT,SKAG,7/16,3",COMP.
2871815
Unavailable
33
SCREW,(10) (SE)
7512596
$19.99
34
BOLT(10) (SE)
7515514
$7.19
35
WSHR-.813X.406X.105-Y (SE)
7555832
$2.39
35
WSHR-.813X.406X.105-Y (SE)
7555832
$2.39
35
WSHR-.813X.406X.105-Y (SE)
7555832
$2.39
36
BOLT(10) (SE)
7515307
$3.99
37
NUT, (SE) Substituted by 7542415 (SE)
7542443
Unavailable
38
NUT LOCK(10) (SE)
7542321
$1.49
38
NUT LOCK(10) (SE)
7542321
$1.49
39
TOE,PLASTIC SKI Substituted by 5432209-070 (SE)
5432209
$40.46
40
PIN, COTTER(10) Substituted by 7661205 (SE)
7661209
Unavailable
40
PIN, COTTER(10) Substituted by 7661205 (SE)
7661209
Unavailable
41
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
41
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
42
STOP,RUBBER (SE)
5411094
Unavailable
43
SUPPORT,SKI,RUBBER,BLK (SE)
5241912-067
Unavailable
44
BUSHING,PIVOT,(10)
5010158
$19.99
45
ZERK,FITTING,THREADED(10)
7080433
$1.49
46
BUSHING-RADIUS ROD,(10)
5010127
$7.99
47
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
47
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
48
ROD,RAD,UP. Substituted by 1822375-067
1822457-067
Unavailable
49
ROD,RAD,LOW. Substituted by 1822377-067
1822458-067
Unavailable
50
NUT-JAM(10)
7542711
$2.39
51
ROD END,RH Substituted by 7061011
7060156
Unavailable
52
BOLT(10)
7512678
$19.99
53
RIVET(50)
7621452
$1.49
54
SUPPORT,PANBRAKE,LOW.
5240699-067
Unavailable
55
RIVET,INTERLOCK,B(50)
7661638
$1.49
56
NUT, LOCK,(10)
7542503
$10.39
57
BOLT(10) Substituted by 7515415
7515515
Unavailable
58
ROD END, RH Substituted by 7061010
7060155
Unavailable
59
NUT JAM(10)
7542520
$2.39
60
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
60
SPRING,COMPRESSION
7041575-067
$52.60
60
Shock (See Pg. A36)
-------
Unavailable
