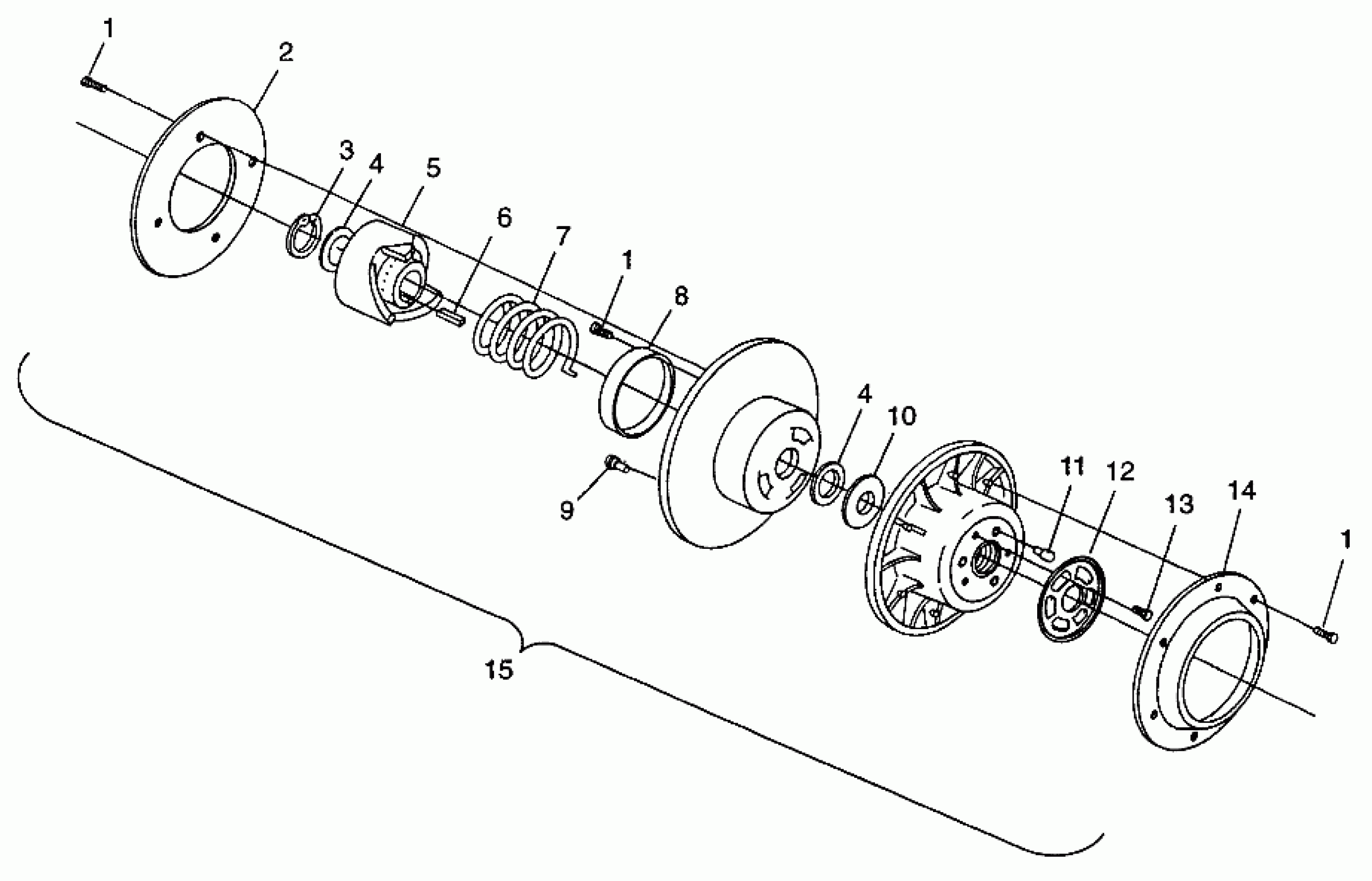

Polaris 600 XCR - 0975677 DRIVEN CLUTCH - H975677 (4937963796C002) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE

5210749

$30.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10)

7556804

$1.49

4

WASHER(10)

7556804

$1.49

5

RAMP,DRIVEN,R1,MACH Substituted by 2900035

5131287

Unavailable

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,CLUTCH,GLD.

7041501

Unavailable

8

BUSHING,D.U.

3569803

Unavailable

9

BUTTON-RAMP,(10)

5430466

$6.46

10

WASHER(10)

7555899

Unavailable

11

PIN, CLUTCH

5020653

$34.99

12

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

13

SCREW(10)

7515133

$3.99

14

CAP DRIVEN

5230101

Unavailable

15

CLUTCH,DRIVEN,W/CVR,R-1 (Incl. 1-14)

1322177

Unavailable
