DRIVE TRAIN 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 600 XCR SE E97 (4937963796B010)

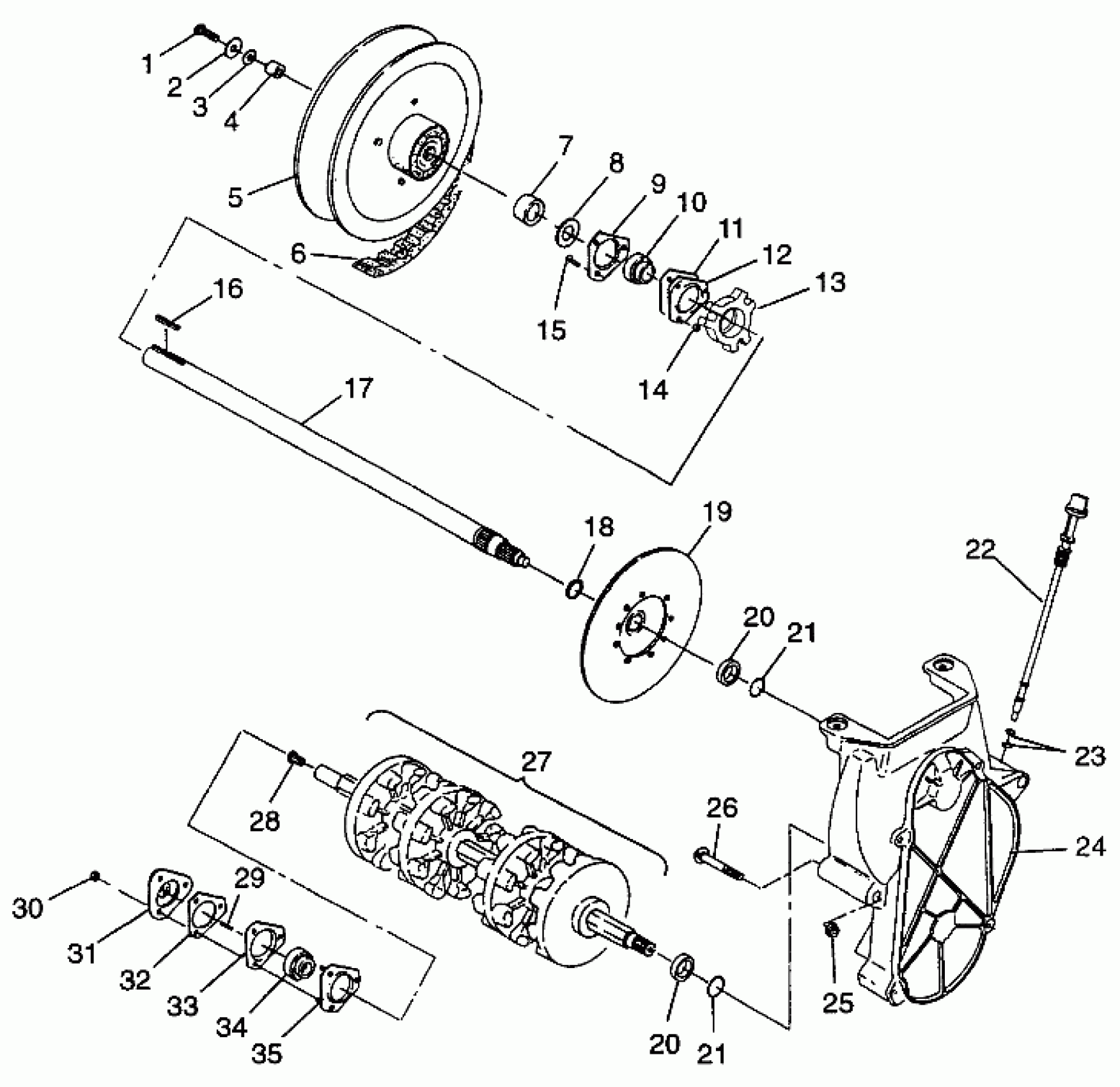

Polaris 600 XCR - 0975677 DRIVE TRAIN 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 600 XCR SE E97 (4937963796B010) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
Spacer
5020913
Unavailable
5
Asm., Driven Clutch (See Pg. C2, Ref 15)
-------
Unavailable
6
BELT,DRIVE(5)
3211066
$109.99
7
SPACER (.38)
5020837
$24.99
8
WASHER SPECIAL(10)
7556509
Unavailable
9
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
10
BEARING
3514525
$31.99
11
GASKET,JACKSHAFT,BLK.
5811095
$2.41
12
FLANGETTE
5222751
$16.44
13
SPACER,BRG,JACKSHAFT
5131443
$40.79
14
NUT,NYLOC,(10)
7542344
$3.99
15
BOLT,CARRIAGE(10)
7515383
Unavailable
16
KEY(10)
7721116
$12.94
17
JACKSHAFT ASM,LONG Substituted by 2201117 (Incl. 18)
1332191
Unavailable
18
RING, RETAINING(10) (1")
7710422
$3.99
19
DISC ASM, BRAKE
1910086
Unavailable
20
SLEEVE, SEAL
5020588
$23.99
20
SLEEVE, SEAL
5020588
$23.99
21
O RING,(10)
5410613
$1.99
21
O RING,(10)
5410613
$1.99
22
DIPSTICK Substituted by 1332143
5431419
Unavailable
23
O-RING
5410675
$1.60
24
Chaincase, Top Mount Vented (See Pg. A24, Ref. 23)
-------
Unavailable
25
NUT(10)
7542423
$3.99
26
BOLT(10)
7515428
$4.79
27
DRIVESHAFT,ASM,4 DR Substituted by 2200828 (Incl. 28, 34, 35)
1590258
Unavailable
28
BUSHING METAL SPEEDO
3280019
$11.99
29
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
30
NUT-5/16-18 NYLOK-Y
7542324
$1.49
31
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
FLANGETTE Substituted by 5243529
5241178
$13.75
34
BEARING,LUBE. Substituted by 3514525
3514526
$31.75
35
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
