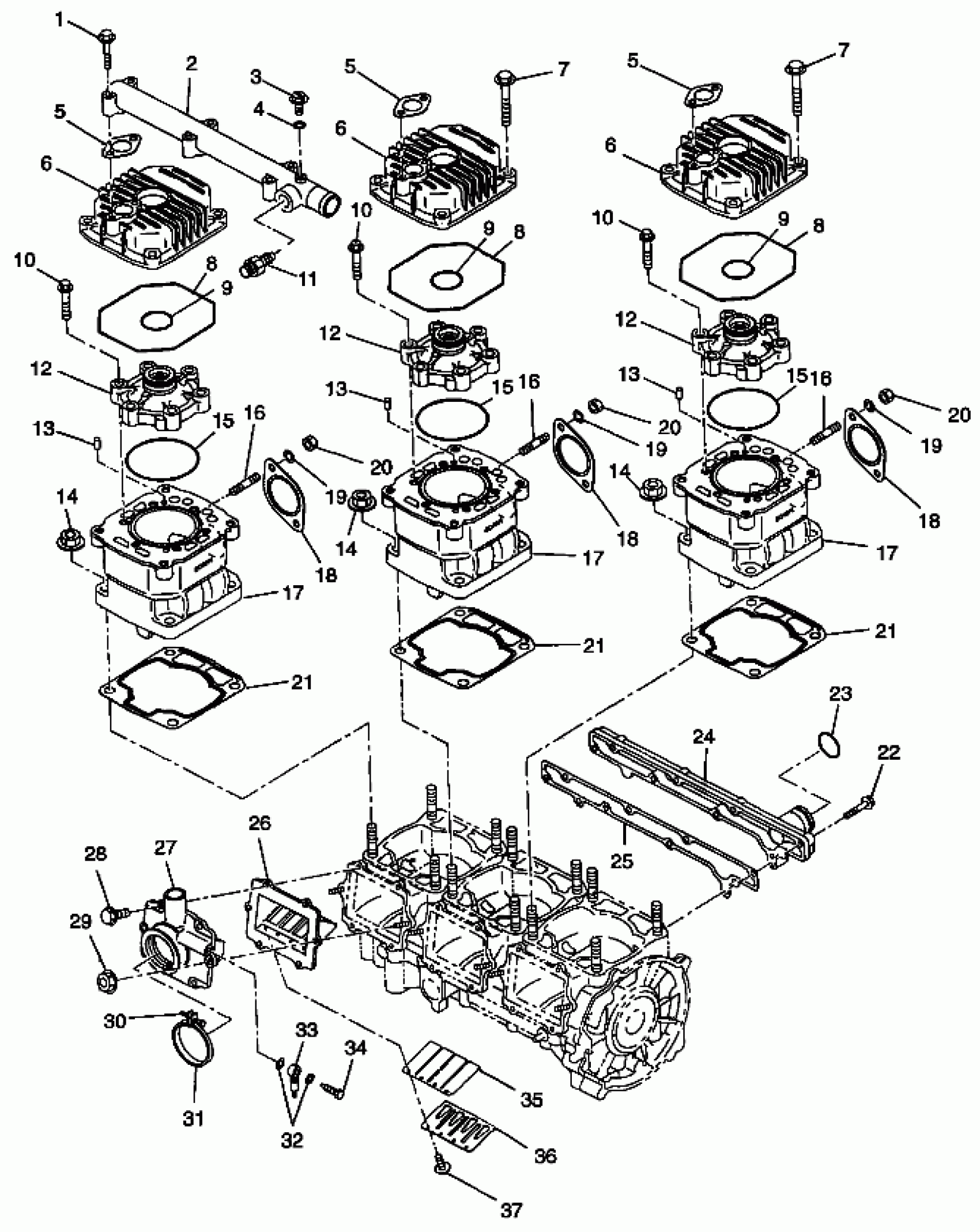

Polaris 600 XCR - 0975677 CYLINDER - H975677 (4937963796C011) Diagram
#
1
BOLT
3080109
Unavailable
2
MANIFOLD,OUTLET,WATER
3085115
Unavailable
3
PLUG, AIR VENT Substituted by 7517266 (Air Vent)
3083350
Unavailable
4
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
5
GASKET(10) (Manifold)
3082937
Unavailable
5
GASKET(10) (Manifold)
3082937
Unavailable
5
GASKET(10) (Manifold)
3082937
Unavailable
6
COVER, HEAD
3085108
Unavailable
6
COVER, HEAD
3085108
Unavailable
6
COVER, HEAD
3085108
Unavailable
7
Bolt, Flange
3084437
Unavailable
7
Bolt, Flange
3084437
Unavailable
8
O-RING,(HD.COVER) (Head Cover)
3085111
Unavailable
8
O-RING,(HD.COVER) (Head Cover)
3085111
Unavailable
8
O-RING,(HD.COVER) (Head Cover)
3085111
Unavailable
9
O-RING,(CYL.HD.) (Cylinder Head)
3085110
Unavailable
9
O-RING,(CYL.HD.) (Cylinder Head)
3085110
Unavailable
9
O-RING,(CYL.HD.) (Cylinder Head)
3085110
Unavailable
10
BOLT, FLANGE ,(10)
3084435
Unavailable
10
BOLT, FLANGE ,(10)
3084435
Unavailable
10
BOLT, FLANGE ,(10)
3084435
Unavailable
11
SENSOR,TEMPERATURE (SE)(EURO SE)
4110179
Unavailable
11
SWITCH,THERMO. (XCR)
3084651
Unavailable
12
HEAD,CYLINDER
3085296
Unavailable
12
HEAD,CYLINDER
3085296
Unavailable
12
HEAD,CYLINDER
3085296
Unavailable
13
PIN, DOWEL Substituted by 3086838
3080103
$7.14
13
PIN, DOWEL Substituted by 3086838
3080103
$7.14
13
PIN, DOWEL Substituted by 3086838
3080103
$7.14
14
NUT-FLANGE(10)
3082911
$1.99
14
NUT-FLANGE(10)
3082911
$1.99
14
NUT-FLANGE(10)
3082911
$1.99
15
O-RING,(CYL.)
3085112
Unavailable
15
O-RING,(CYL.)
3085112
Unavailable
15
O-RING,(CYL.)
3085112
Unavailable
16
STUD,(10)
3085326
Unavailable
16
STUD,(10)
3085326
Unavailable
16
STUD,(10)
3085326
Unavailable
17
CYLINDER (Incl. 13,16)
3085302
$639.99
17
CYLINDER (Incl. 13,16)
3085302
$639.99
17
CYLINDER (Incl. 13,16)
3085302
$639.99
18
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Non-Asbestos)
3084439
Unavailable
18
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Non-Asbestos)
3084439
Unavailable
18
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Non-Asbestos)
3084439
Unavailable
19
WASHER LOCK ,(10)
3080530
$3.19
19
WASHER LOCK ,(10)
3080530
$3.19
19
WASHER LOCK ,(10)
3080530
$3.19
20
NUT(10)
3080285
Unavailable
20
NUT(10)
3080285
Unavailable
20
NUT(10)
3080285
Unavailable
21
GASKET,CYL.(NA) (Non-Asbestos)
3085243
Unavailable
21
GASKET,CYL.(NA) (Non-Asbestos)
3085243
Unavailable
21
GASKET,CYL.(NA) (Non-Asbestos)
3085243
Unavailable
22
BOLT, FLANGE Substituted by 3086751
3084177
Unavailable
23
O-RING (W/P Outlet)
3084461
Unavailable
24
COVER,WATER INLET
3085246
$87.19
25
GASKET,COVER,INLET WATER (Inlet Water Cover)
3085247
$10.71
26
REED VALVE ASM. (Incl. 35-37)
3085249
Unavailable
27
ADAPTER
3085248
Unavailable
28
Bolt, Flange
3084126
Unavailable
29
NUT, FLANGE(10)
3083856
$2.39
30
SCREW,(10)
3081497
$2.39
31
BAND ASM. (Incl. 30)
3083166
$19.84
32
WASHER(10) Substituted by 7555998
3083138
Unavailable
33
VALVE, CHECK
3083894
Unavailable
34
BOLT-BANJO
3083137
Unavailable
35
VALVE, REED
3084563
$19.83
36
STOPPER
3085274
Unavailable
37
SCREW, REED
3084565
$3.29
