CARBURETOR 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 600 XCR SE E975 (4937963796D004)

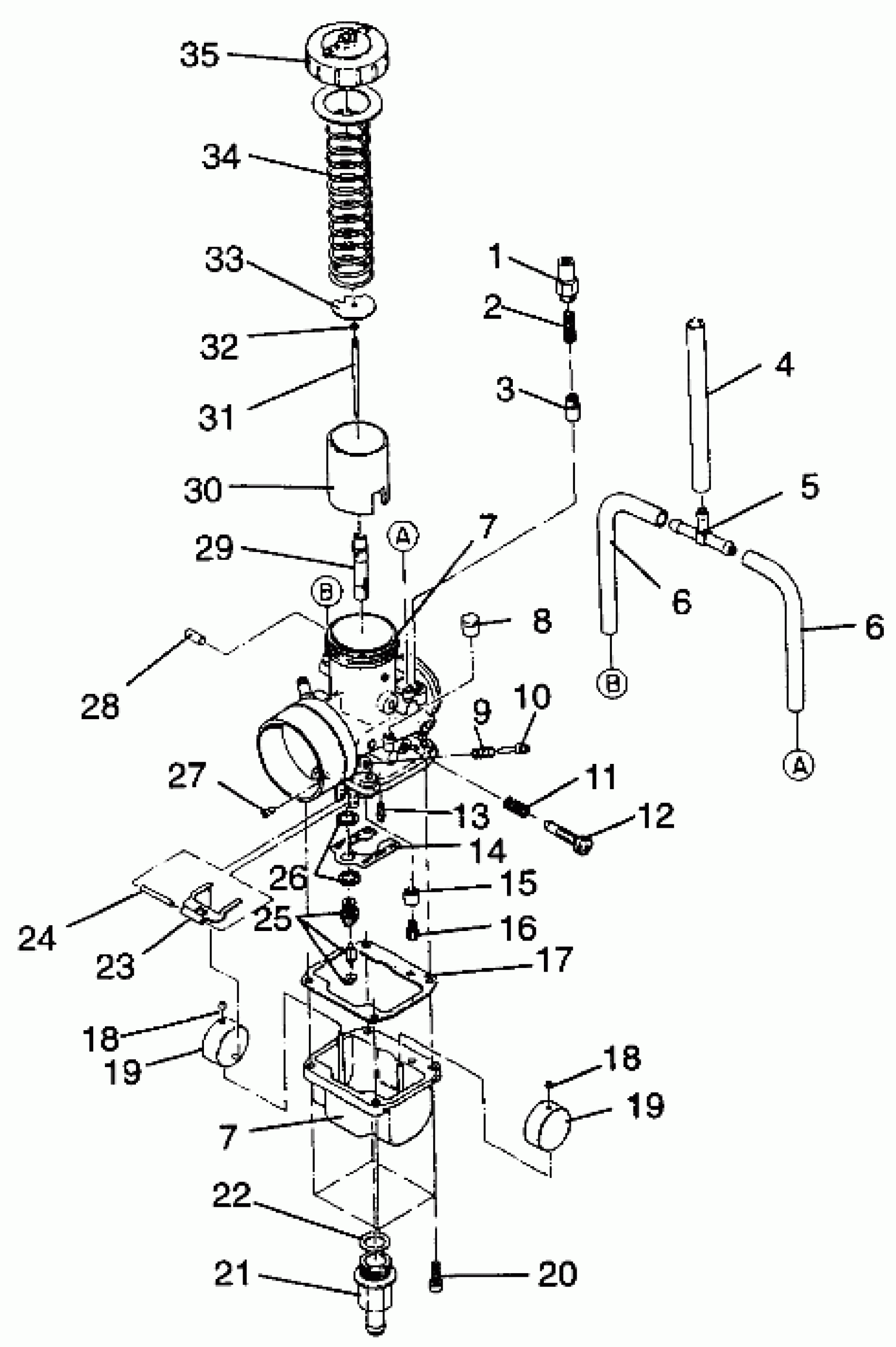

Polaris 600 XCR - 0975677 CARBURETOR 600 XCR 0975677, 600 XCR SE H975677 and EUROPEAN 600 XCR SE E975 (4937963796D004) Diagram
#
1
HOLDER,GUIDE
3130199
$28.32
2
SPRING,PLUNGER
3130006
$8.89
3
PLUNGER ASM, STARTER
3130328
$32.37
4
HOSE
3130659
Unavailable
5
NIPPLE
3130611
Unavailable
6
HOSE
3130605
Unavailable
6
HOSE
3130605
Unavailable
7
CARBURETOR #2,CTR. (Center Side) (Incl. 1-35)
3130702
Unavailable
7
CARBURETOR #3,PTO SIDE (PTO Side) (Incl. 1-7, 9-35)
3130704
Unavailable
7
CARBURETOR #1,MAG SIDE (MAG Side) (Incl. 1-7, 9-35)
3130700
Unavailable
7
CARBURETOR #2,CTR. (Center Side) (Incl. 1-35)
3130702
Unavailable
7
CARBURETOR #3,PTO SIDE (PTO Side) (Incl. 1-7, 9-35)
3130704
Unavailable
7
CARBURETOR #1,MAG SIDE (MAG Side) (Incl. 1-7, 9-35)
3130700
Unavailable
8
CAP (Center Carb Only)
3130658
Unavailable
9
SPRING,AIR ADJUST
3130012
$8.89
10
SCREW,AIR
3130011
$19.99
11
SPRING,THROTTLE ADJ. (Throttle Adjuster)
3130010
$8.89
12
SCREW,THROTTLE STOP
3130009
$19.99
13
JET,PILOT,#40(10) (#40)
3130067
$10.99
14
PLATE
3130243
Unavailable
15
RING,CARB
3130232
Unavailable
16
JET,MAIN,HX.HD#360(10) (#360) (PTO Side)
3130139
$7.99
16
JET,MAIN,HX.HD#380(10) (#380) (MAG & Center Side)
3130140
$7.27
17
GASKET,FLOAT CHAMBER (Float Chamber)
3130236
$12.13
18
CAP,(10)
3130237
$4.03
18
CAP,(10)
3130237
$4.03
19
FLOAT ASM
3130021
$40.46
19
FLOAT ASM
3130021
$40.46
20
SCREW
3130056
$3.19
21
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
22
O RING
3130239
Unavailable
23
ARM,FLOAT
3130048
Unavailable
24
PIN, FLOAT
3130361
$8.89
25
VALVE ASM,NEEDLE
3130643
$56.65
26
WASHER(10) (Needle Valve)
3130047
$4.84
27
JET,AIR,(PAJ1) (PAJ1)
3130256
Unavailable
28
CAP
3130479
$14.56
29
NEEDLE JET,(P-6)247 (247)
3130655
Unavailable
30
VALVE,THROTTLE,(2.5) (2.0)
3130606
Unavailable
31
JET NEEDLE
3130476
$24.27
32
E-RING,(10)
3130508
$6.46
33
PLATE, THROTTLE (Throttle)
3130054
$6.46
34
SPRING,THROTTLE (Throttle)
3130444
Unavailable
35
TOP ASM. Note: qty's. are per Carb.
3130644
Unavailable
