HOOD ASSEMBLY 600 XCR 0951676 (4929132913A010)

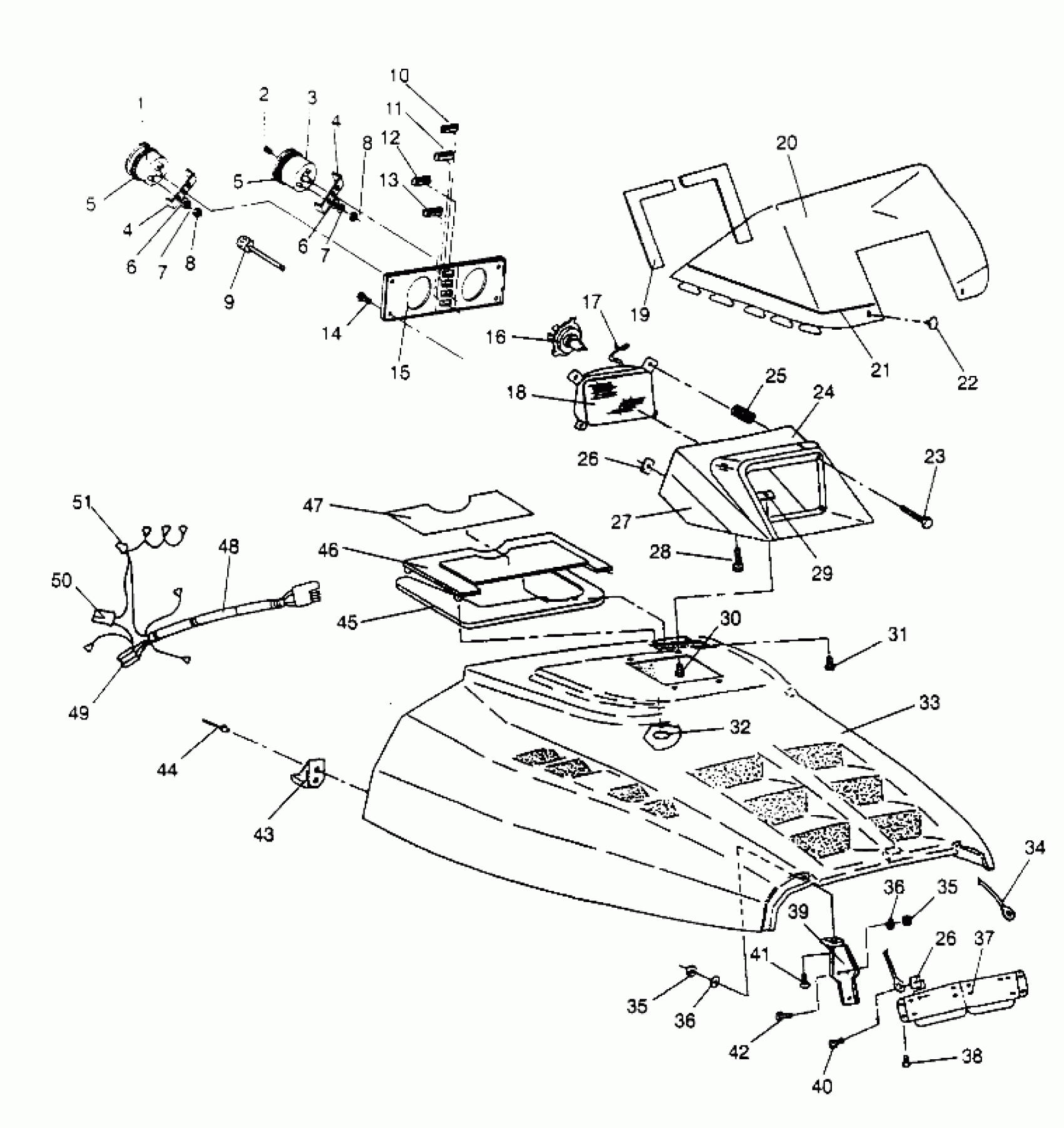

Polaris 600 XCR - 0951676 HOOD ASSEMBLY 600 XCR 0951676 (4929132913A010) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACH,6P,BACKLIT (Incl., 4,8)
3280162
Unavailable
2
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
3
SPEEDO ASM,120MPH.BACKLIT (Incl. 4,8)
3280188
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
5
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
5
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
6
WASHER,FLAT,(10)
3280157
$2.39
6
WASHER,FLAT,(10)
3280157
$2.39
7
WASHER,SPLIT LOCK
3280156
$1.49
7
WASHER,SPLIT LOCK
3280156
$1.49
8
Nut
3280158
Unavailable
8
Nut
3280158
Unavailable
9
CABLE,SPEEDO.
3280094
$60.70
10
INDICATOR'TEMP'WARN.
4040011
$32.37
11
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
12
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
13
INDICATOR,'ACC'WARN.
4040014
Unavailable
14
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
15
BEZEL, INST.
5430924
Unavailable
16
BULB,QUARTZ.H/L,INDY
2870448
$24.99
17
RETAINER,H/L BULB
4032063
Unavailable
18
HEADLIGHT ASM.
4032040
Unavailable
19
PAD, W/S, LH
5810414
Unavailable
19
PAD, W/S
5810415
Unavailable
20
WINDSHIELD,LOW,WHITE
5431712
Unavailable
21
DECAL (Red)
8330323-122
Unavailable
22
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
23
SCREW, ADJ.(10)
4032003
Unavailable
24
HSG,INST.TOP,WHITE
5430923-133
Unavailable
25
SPRING-ADJ
4032002
Unavailable
26
NUT, SPEED(10)
7670056
Unavailable
26
NUT, SPEED(10)
7670056
Unavailable
27
HSG,INST.BOTT,WHITE
5430922-133
Unavailable
28
SCREW(10)
7512009
Unavailable
29
NUT, SPEED(10)
7670057
$1.49
30
SCREW, SEMS(10)
7512283
$3.99
31
SCREW(10)
7511840
Unavailable
32
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
33
HOOD,WHITE,(LIQ) (Incl. Foam, Foil & Warning Decals)
2631608-133
Unavailable
34
CABLE,HOOD RETAINER
7080368
$10.51
35
NUT-LOCK(10)
7542122
$1.49
35
NUT-LOCK(10)
7542122
$1.49
36
WASHER,WROUGHT(10)
7558302
$1.59
36
WASHER,WROUGHT(10)
7558302
$1.59
37
PLATE,RE-INF.,(HD.)
5222105
$49.51
38
SCREW(10)
7511861
Unavailable
39
HINGE ASM,HD,WHITE
2635005-133
$15.70
40
SCREW(10)
7511989
Unavailable
41
BOLT-CARRIAGE(10)
7512263
$3.99
42
BOLT(10)
7512193
$2.39
43
CUP, HOOD LATCH,(10)
5430733
$4.84
44
RIVET(50)
7621334
$1.49
45
SEAL, INTAKE
5810597
Unavailable
46
PANEL ASM,INTAKE,BR,WHITE Substituted by 2620091-133 (Incl. 47)
2620078-133
Unavailable
47
DECAL,DASH WARNING Substituted by 7075457
7074883
Unavailable
48
HARNESS,HEADLIGHT
2460382
Unavailable
49
HOUSING
4020052
Unavailable
50
Housing
4020115
$1.59
51
HOUSING
4020114
Unavailable
