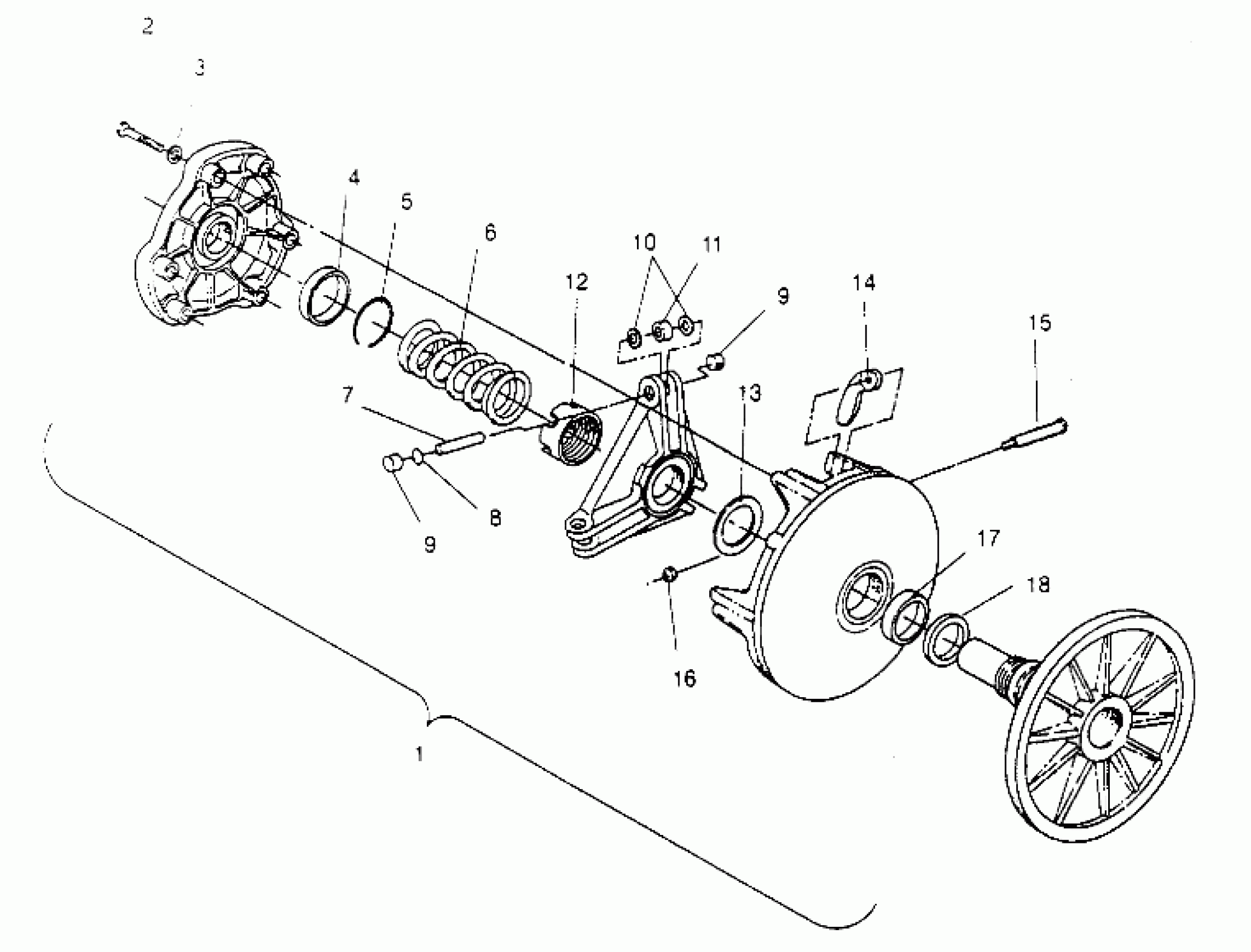

Polaris 600 XCR - 0951676 DRIVE CLUTCH ASSEMBLY 600 XCR 0951676 (4929132913B014) Diagram

#

Description
Price

1

CLUTCH,BASIC#49(DRIVE) Substituted by 1321717 (Less 6,14)

1321627

Unavailable

2

BOLT,(10)

7512265

$3.99

3

LOCK WASHER(10)

7552801

$1.59

4

BEARING, COVER,(10)

3576510

$9.59

5

RING-RETAINING,COVER

7710417

$1.49

6

SPRING-(BLUE)

7041080

$56.65

7

PIN-ROLLER

5020422

$2.39

8

Kit - Shim, Drive Clutch

2200387

$24.27

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

WASHER,MULTILUBE

5430945

$1.59

11

ASM-ROLLER AND BUSHING

1321457

$40.46

12

NUT-JAM

5020425

$23.99

13

SPACER(10)

5210754

Unavailable

13

SPACER(10)

5210752

Unavailable

13

SPACER(10)

5210753

Unavailable

14

WT/BUSH.ASM,10M-B(3) (10M-B)

1321529

$44.99

15

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

16

NUT FLEX LOC(10)

7541906

$3.19

17

SLEEVE, BEARING

3576502

$23.99

18

INSERT-MOVEABLE

5010188

$7.99
