CYLINDER ASSEMBLY 600 XCR 0951676 (4929132913C009)

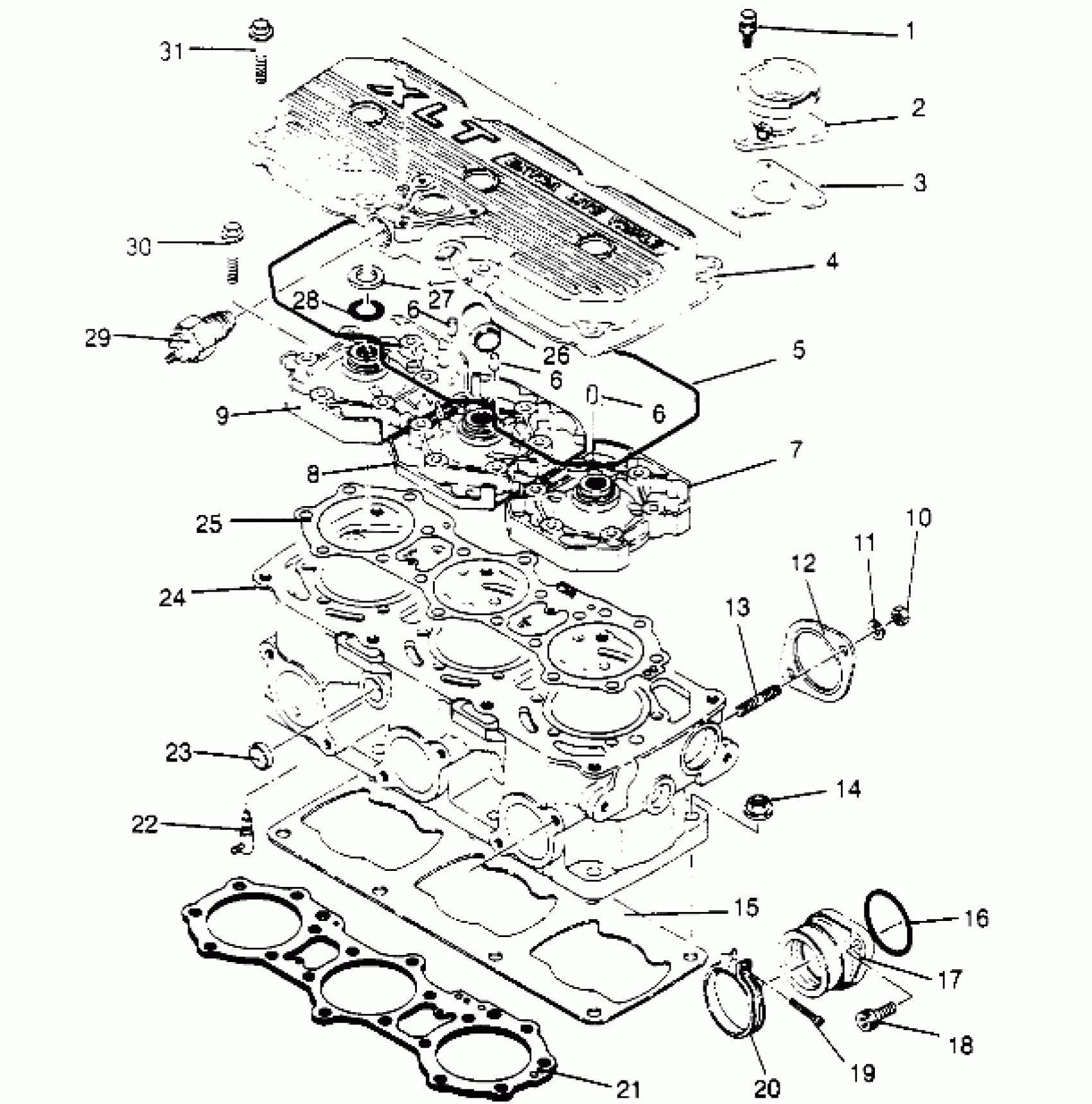

Polaris 600 XCR - 0951676 CYLINDER ASSEMBLY 600 XCR 0951676 (4929132913C009) Diagram
#
Description
Price
1
BOLT&WASHER ASM.
3083361
Unavailable
2
NECK, FILLER
3083398
Unavailable
3
GASKET, FILLER NECK (Filler Neck)
3083340
Unavailable
4
COVER,HD.(PLUM) Substituted by 3084594 (Incl. 26)
3085050
Unavailable
5
O-RING, (HEADCOVER) (Head Cover)
3084434
Unavailable
6
PIN, DOWEL
3084721
$4.79
6
PIN, DOWEL
3084721
$4.79
7
HEAD, CYL.,(MAG) (Mag)
3084674
Unavailable
8
HEAD, CYL.,(CEN) (Cen)
3084675
Unavailable
9
HEAD, CYL.,(PTO) (PTO)
3084676
Unavailable
10
NUT(10)
3080285
Unavailable
11
WASHER LOCK ,(10)
3080530
$3.19
12
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos
3084439
Unavailable
13
STUD Substituted by 3085326
3084270
Unavailable
14
NUT-FLANGE(10)
3082911
$1.99
15
GASKET, CYLINDER (Cylinder)
3084593
Unavailable
16
O-RING Substituted by 3085619
3084272
Unavailable
17
ADAPTER, CARB. (Incl. 16)
3084673
Unavailable
18
Bolt, Allen
3081330
$3.99
19
SCREW Substituted by 3081497
3083086
Unavailable
20
BAND ASM. (Incl. 19)
3083166
$19.84
21
GASKET,HEAD (Opt)
3085005
Unavailable
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
23
PLUG
3084428
$3.51
24
CYLINDER (Incl. 13,23)
3085049
$734.99
25
GASKET #1,HEAD Substituted by 3085613 (Std.)
3085003
Unavailable
26
PIPE, WATER, CPL.
3084431
Unavailable
27
SPACER
3084722
Unavailable
28
O-RING, HEAD Substituted by 3085192
3084433
Unavailable
29
SWITCH,THERMAL,IOS
3084284
Unavailable
30
BOLT, FLANGE ,(10)
3084435
Unavailable
31
Bolt, Flange
3084437
Unavailable
