TUNNEL ASSEMBLY 600 XCR 0941667 (4927092709001A)

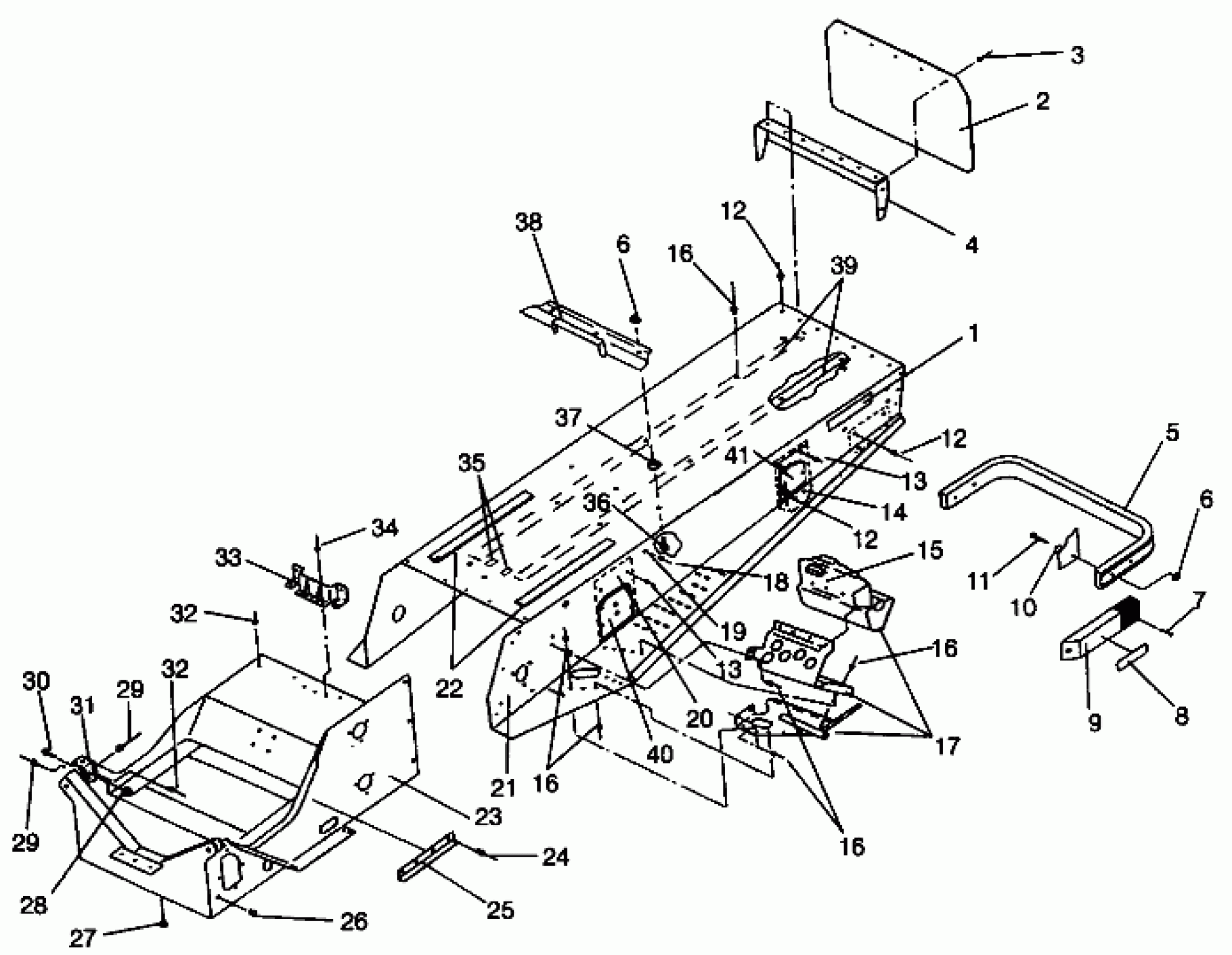

Polaris 600 XCR - 0941667 TUNNEL ASSEMBLY 600 XCR 0941667 (4927092709001A) Diagram
#
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
5
BUMPER,REAR,BLK.
5224334-067
Unavailable
6
NUT-LOCK(10)
7542122
$1.49
6
NUT-LOCK(10)
7542122
$1.49
7
SCREW(10)
7511863
$1.99
8
REFLECTOR RED
2670070
$9.91
9
CAP, BUMPER, BLK.
5430930-070
Unavailable
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
RIVET ,(50)
7661829
Unavailable
12
RIVET ,(50)
7661829
Unavailable
12
RIVET ,(50)
7661829
Unavailable
13
RIVET,(50)
7661825
$1.49
13
RIVET,(50)
7661825
$1.49
14
BRKT,RH,R.SUSP.
1011858-067
Unavailable
14
BRKT,LH,R.SUSP
1011857-067
Unavailable
15
EXTRUSION,CLUTCHGUARD
5521238
$6.46
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
FOOTREST ASM, LH
1011861
Unavailable
17
FOOTREST ASM,RH,BLK.
1011892
Unavailable
18
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
19
SNAP-MALE(10)
7080227
Unavailable
20
BRKT,FR.SUSP,BLK.
5240598-067
$13.10
21
TUNNEL,'94 "600" Substituted by 1012268 (Incl. 4,14,20)
1012189
Unavailable
22
PAD-GAS TANK
5810063
$4.95
23
BULKHEAD,(SP TRNG.) Substituted by 1012261-067
1012043-067
Unavailable
24
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
25
GUARD,ADAPTER,DRIVE
5240441
Unavailable
26
PLUG, HOLE(10)
7080416
$5.65
27
PLUG-HOLE
7080398
$4.84
28
NUT LOCK(10)
7542321
$1.49
29
RIVET(50)
7621452
$1.49
29
RIVET(50)
7621452
$1.49
30
SCREW(10)
7512307
$3.99
31
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
32
RIVET-3/16-.090-.290
7661637
$1.49
32
RIVET-3/16-.090-.290
7661637
$1.49
33
BRACKET, GASTANK
5221932-067
Unavailable
34
RIVET(50)
7621301
$3.99
35
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
36
BOLT(10)
7512193
$2.39
37
SPEED NUT(10)
7670021
$6.99
38
STRAP,GASTANK,WELD. Substituted by 1011732-067
1011732
Unavailable
39
MOUNT,WEAR STRIP
5131009
Unavailable
40
BRKT,FR.SUSP,BLK.
5211439-067
Unavailable
41
BRKT,R.OUT.SUSP,BLK.
5211440-067
$10.71
